CAME GARD G6000 - Boom Balancing Procedure; Adjusting Rod Nut and Spring Tension; Stabilizing Boom and Final Checks

200 max80 max
45°
45°
p. 11 - Manual FA01116 - EN - 01/2018 - © CAME S.p.A. - Translated original instructions
Manually turn the spring to increase or reduce the traction. The boom should stabilize at 45°.

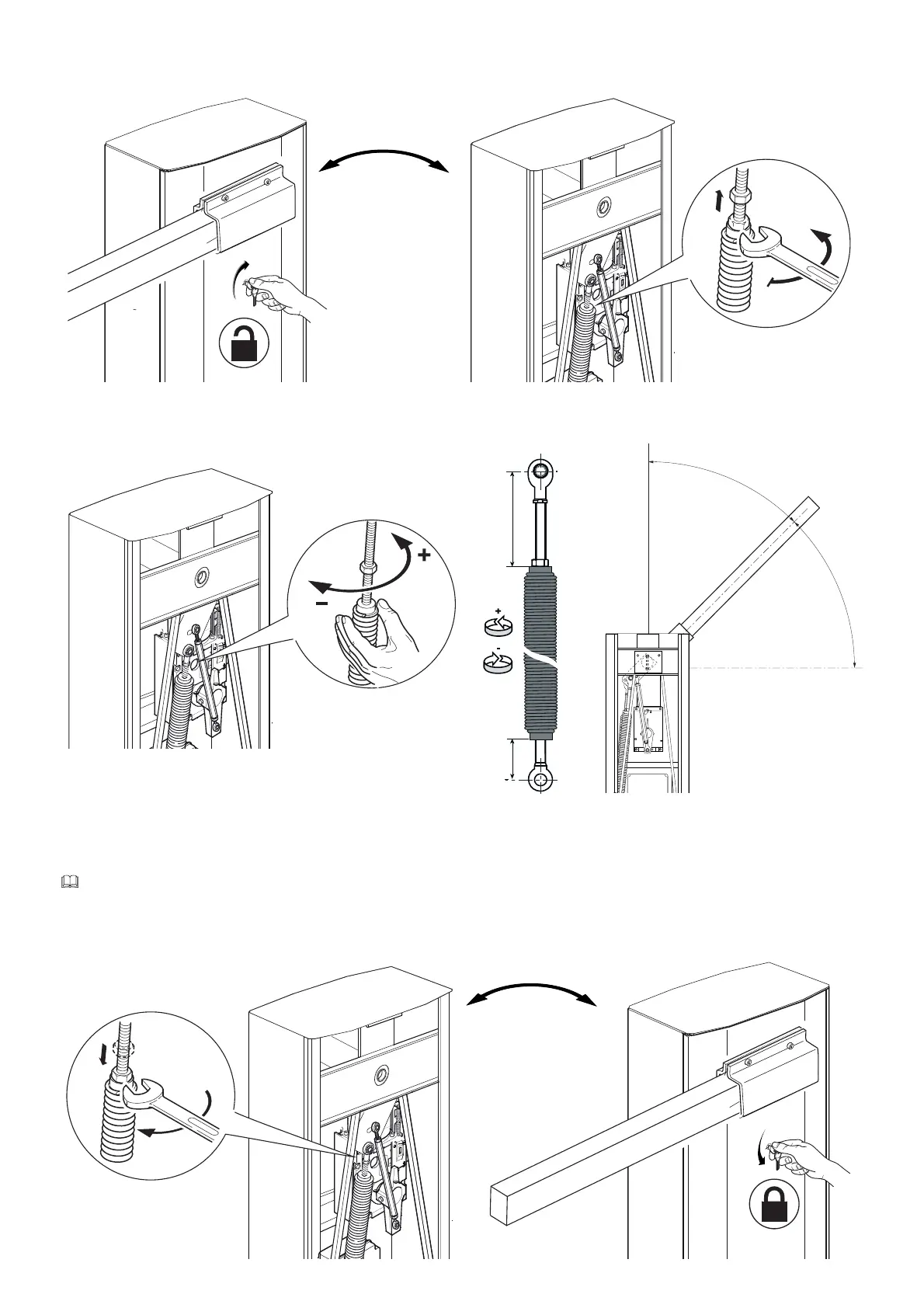

To precision balance the barrier, fi rst release the gear motor and loosen the rod nut.
Fit the nut to fasten the rod to the spring and tighten it.
Lock the gearmotor once again.
Check the proper working state of the spring.
With the boom raised vertically the spring is not taut.
With the boom lowered horizontally the spring is taut.
Caution! After performing balancing procedures, LUBRICATE THE SPRINGS WITH SPRAY GREASE!
