C
O
M
Rallentam.Velocità
Max.Max. Med. Min. Min.
DIS. 27370
ON
2
1 345678910
N
M
PT F FC
FA
N
L
L27
L1T
E
+10
-11
1
2
3
5
7
C1
C5
GNDTXRX
9
8
710
11
1
2
12 133
6
5
4
14
18
16
15
17
Blu
p. 12 - Manual FA01116 -EN - 01/2018 - © CAME S.p.A. - Translated original instructions
FUSE TABLE ZL38
- Line 3.15 A-F
- Card 630 mA-F
- Gearmotor 10 A-F
- Accessories 2 A-F

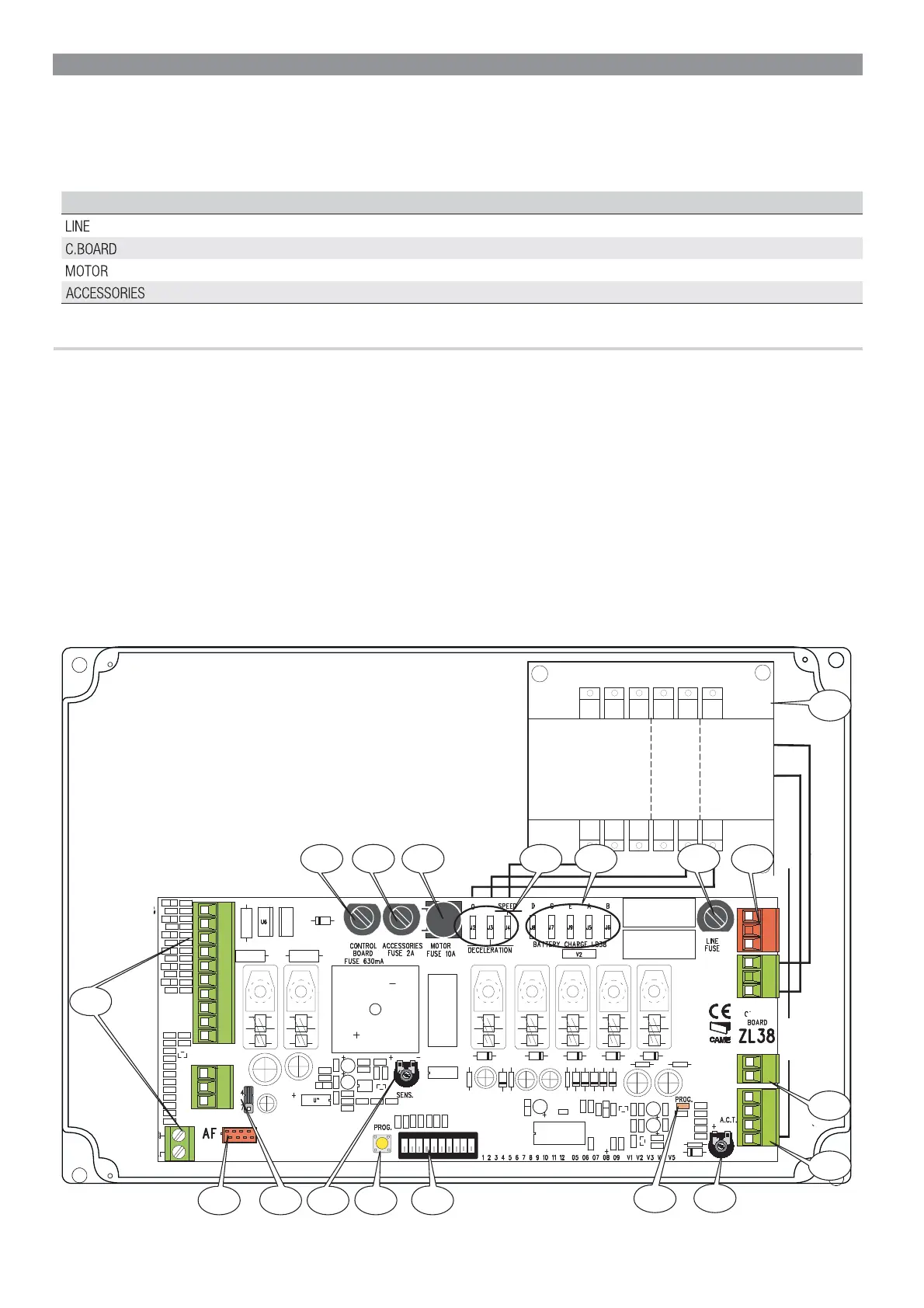

DESCRIPTION OF PARTS
1. Accessories fuse
2. Line fuse
3. Control-board fuse
4. Motor fuse
5. Terminals for control and safety devices
6. AF card slot
7. SENS trimmer
8. ACT Trimmer
9. DIP-SWITCH
10. Programming button
11. Programming warning LED
12. Speed and slow-down adjusting connectors
13. Battery charger (LB38) connectors
14. Command type selection jumper
15. Transformer
16. Power supply terminals
17. Terminal for gearmotors
18. Limit-switch terminals
CONTROL PANEL
Caution! Before working on the control panel, cut off the mains power supply and remove any batteries.
Power supply to the control panel and control devices: 24 V AC/DC.
Use DIP switches to set functions and the trimmer for adjustments.
All wiring connections are quick-fuse protected.
