L = LATERAL CLEARANCE (m) 3 ÷ 4 4 ÷ 5 5 ÷ 6 6 ÷ 6.5
Boom AABAB
Boom with the 001G0460 warning lights ABAB-
Boom with the 001G0465 warning lights and skirt or the 001G02808 swing leg BABBB-
Boom with warning lights
Boom
Boom with warning lights and skirt
or swing leg

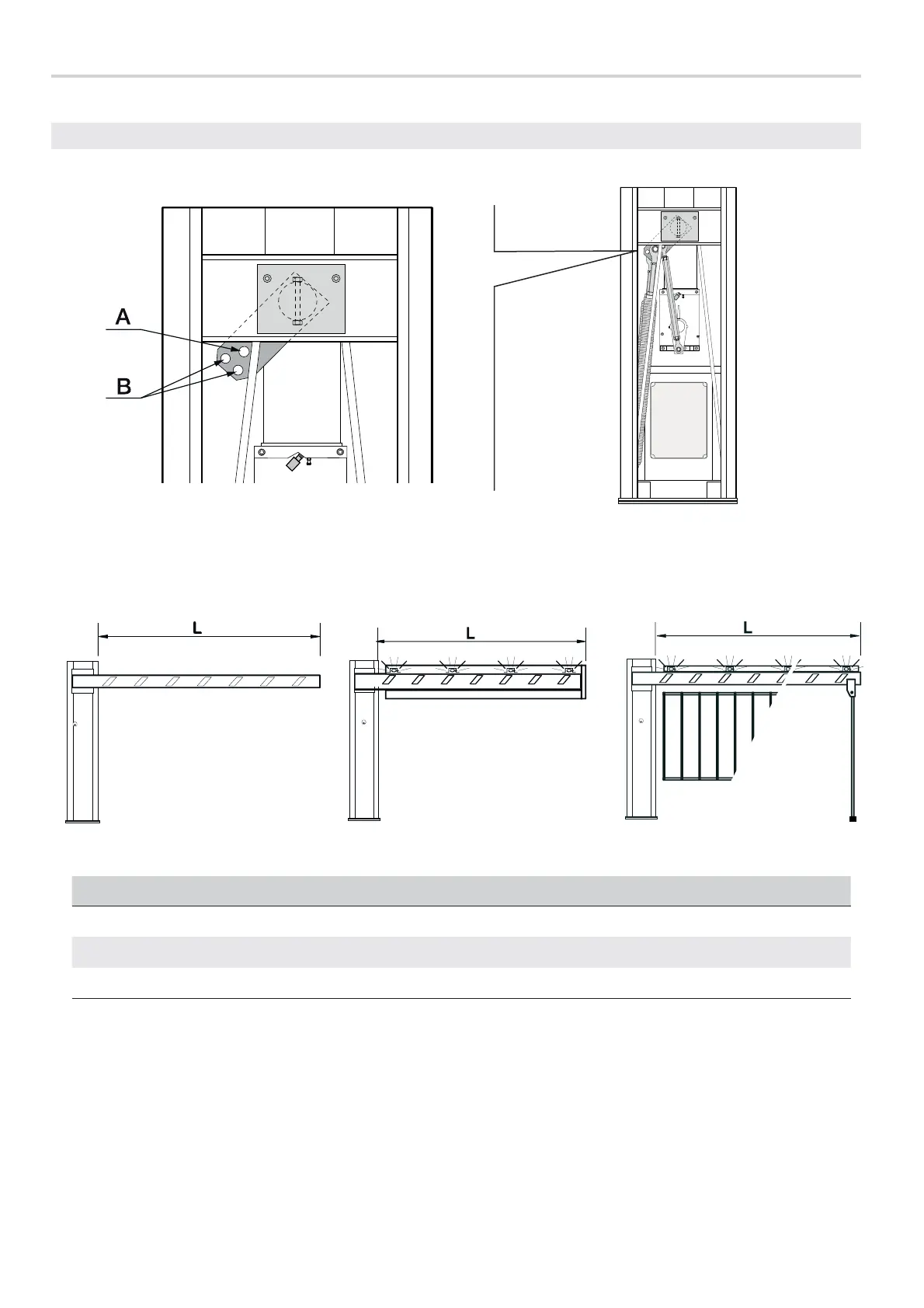

BALANCING THE BOOM
The barrier is supplied with two Ø 50 mm springs (001G04060). The springs attach to lever arm (in the B-holes).
Depending on how the barrier is finally configured, you may need to exclude one of the two springs or reattach it (see the table below).
⚠
When configuring the barrier, make sure the gearmotor is locked!
⚠
WARNINGS!
The 001G02802 cannot be used on barriers fitted with the 001G0465 skirt or 001G02808 swing rest
The 001G02807 MUST be used with passage widths exceeding 3 m.
The 001G0465 and 001G02808 cannot be used together.
