CAME V1000P - Description of parts; Installation of the wall socket

①
④
⑤
⑨
③
②
⑩
⑧
⑥
⑦
max 1m
❶
❸
❷
Page 8 - Manual FA01799 -EN - 04/2022 - © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

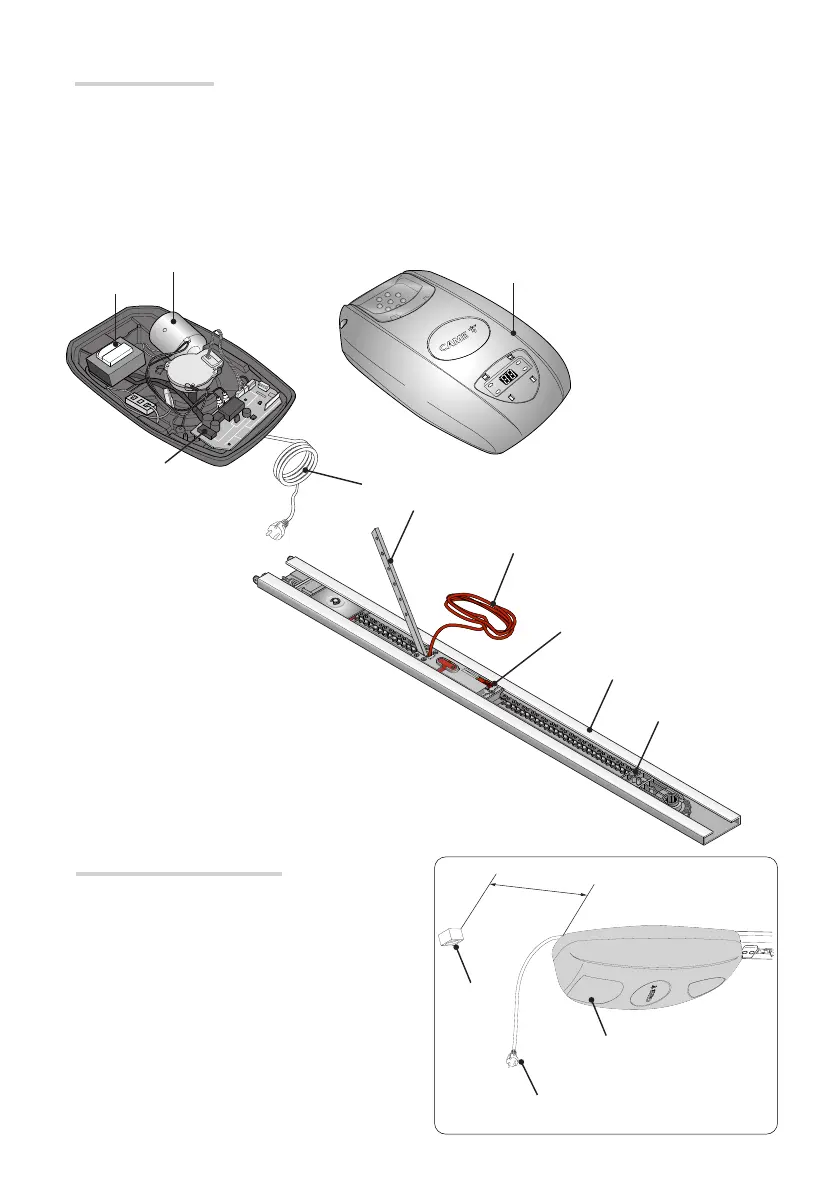

Description of parts
Operator
① Cover
② Gearmotor
③ Transformer
④ Control board
⑤ Power supply cable
Pre-assembled guide package
⑥Guide
⑦Chain or belt
⑧Slide
⑨Transmission arm
⑩Release cord
Installation of the wall socket
⚠
The wall socket must be installed exclusively by a
skilled electrician. Protect the wall socket with a fuse
(16A delayed). Comply with current regulations (e.g.
safety of electrical systems).
1. Install the wall socket ❶ on the ceiling at a max-
imum distance of 1 m from the control unit box ❷ .
2. Install and connect the wall socket power supply
cable ❸ to the power grid.
