7 Programming

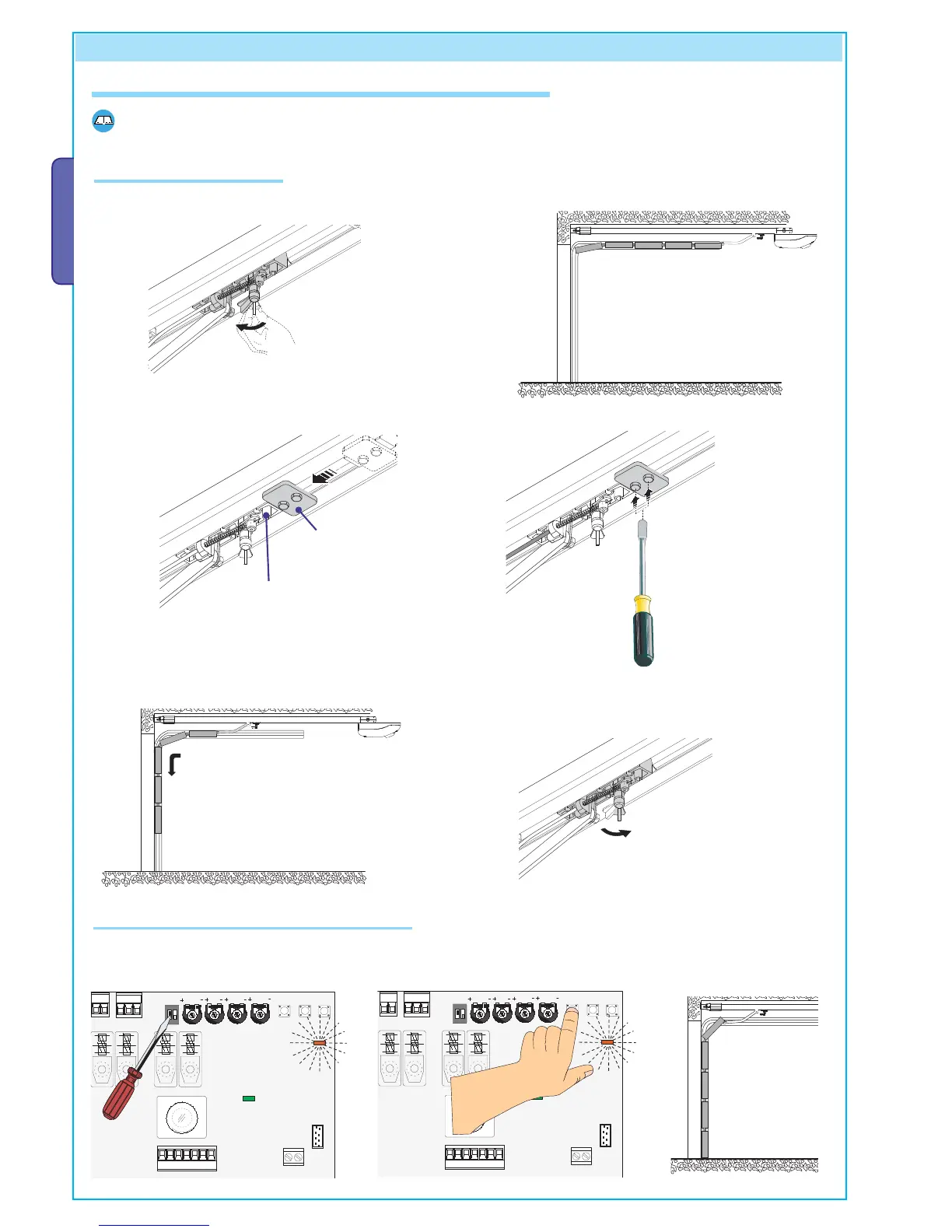

- Release the automation and position the door in the fully opened position.
IMPORTANT: before performing any programming, read the instructions carefully.
Carry out the following instructions in the proper order otherwise the programming will fail.
- When the door is fully opened, fasten the mechanical stop to the traction slide.
1 - Preliminary operations
- Position dip-switch n°1 to ON (the programming signal led fl ashes).
Push and keep pressed the AP/CH switch until the door closes...
2 - Programming the end-stop in the closing phase
- Manually close the door until the release is locked into place again.
7.1 Programming the end-stop in the closing and opening phase
