CAME Wi-Fi PLX V User Manual

Page 9 - Manual - FA01792-EN - 10/2022 © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

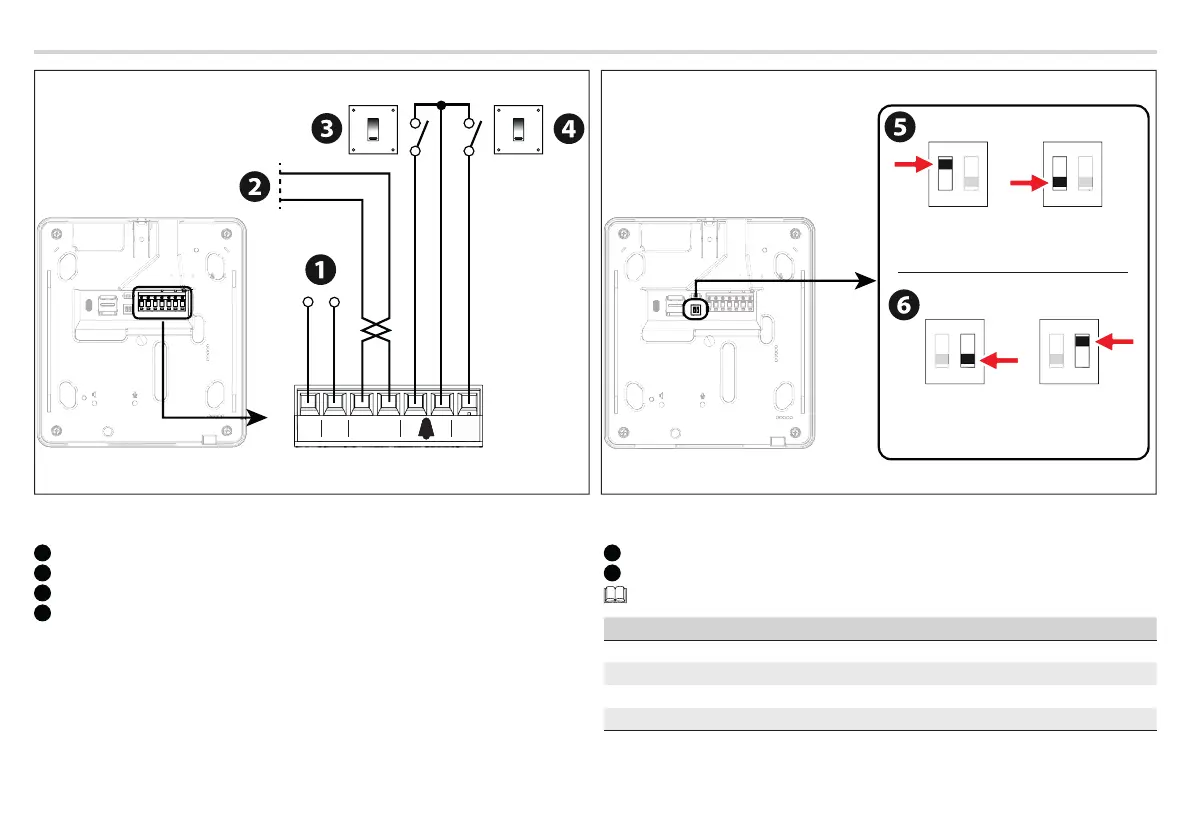

Connections and settings
+ - B + - AL
1
2
KIT
BUILDING
1
2
ON
1
2
ON
1
2
ONOFF
ON ON
Function of terminals
1
Local power supply input 14 -18 V DC
2
BUS-line input
3
Landing call
4
Alarm input
Function of the DIP switch
5
DIP switch 1 - KIT/BUILDING mode
6
DIP 2 - Closing resistor
Activate the closing resistor for the last device in the line.
Setting Function
DIP-switch 1 ON KIT - Single-family
DIP 1 OFF BUILDING - Multi-family
DIP-switch 2 ON Closing resistor ACTIVE
DIP-switch 2 OFF Closing resistor DEACTIVATED
