Section 5 Model 752 and 752A Differential Pressure Transmitters
43
!
 WARNING:Itemsmarkedwithanasterisk(*)belowmaybereplacedwith-
outlossofinstrumentqualication.Noothereldrepairsorcomponent
replacementsareauthorizedifinstrumentqualicationistobemain-
tained.

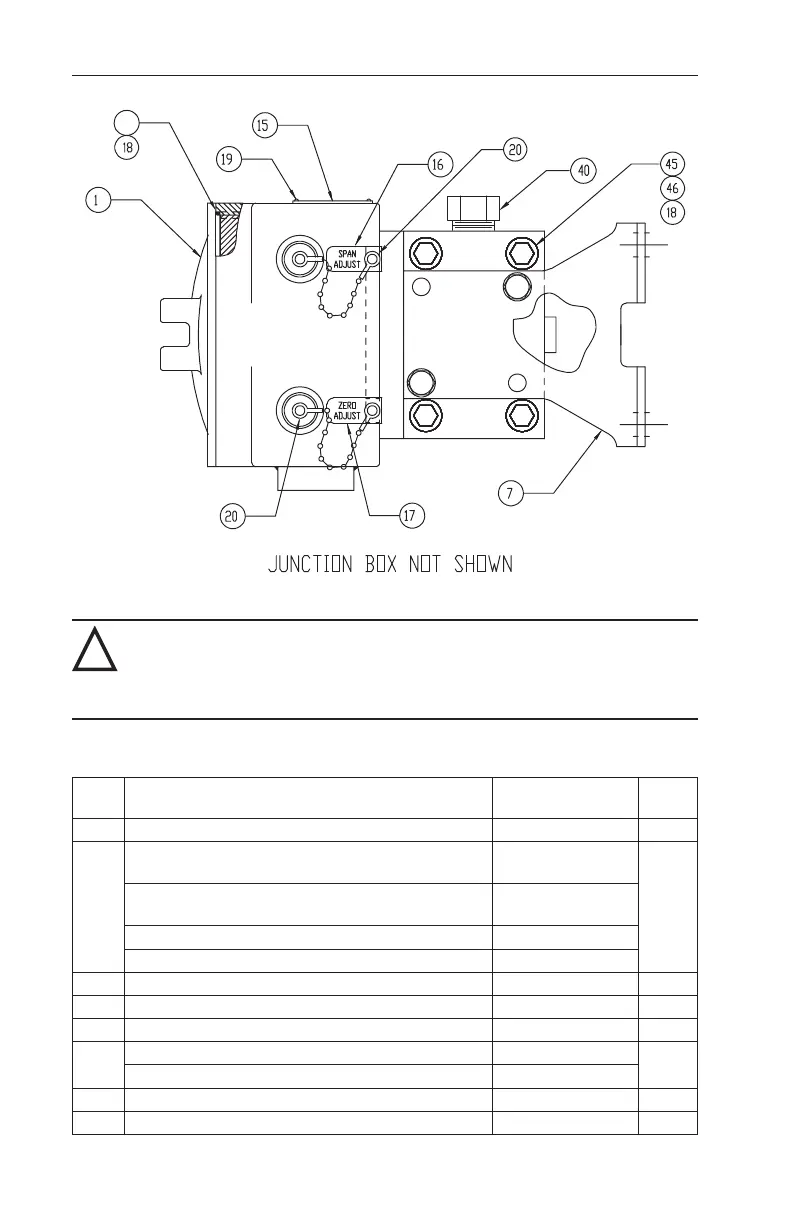

Table 5.1—752 and 752A Parts List
ITEM DESCRIPTION PART NO.
PER
UNIT
1* Enclosure cover (gray) 9A-C0039-1045C 1
2
Model 752 circuit board assembly, 4 to 20 mA
(replacements no longer available)
9A-C0752-1056B
1
Model 752 circuit board assembly, 10 to 50 mA
(replacements no longer available)
9A-C0752-1070B
Model 752A circuit board assembly, 4 to 20 mA 9A-C0752-1269B
Model 752A circuit board assembly, 10 to 50 mA 9A-C0752-1270B
4* Shaft and spring assembly 9A-C0752-1100B 2
6* O-ring, EPT, E740-75, 3/8 x 1/2 9A-C0001-1051R 2
7* Mounting bracket 9A-C0273-0001C 2
9
Pan head screw, 6-32 x 3/16, Model 752 9A-C0119-1006J
2
Pan head screw, 6-32 x 1/4, Model 752A 9A-C0119-0016J
10* Bead chain 9A-C0076-0007T 2
11* Retaining ring 9A-C0087-0040T 4
