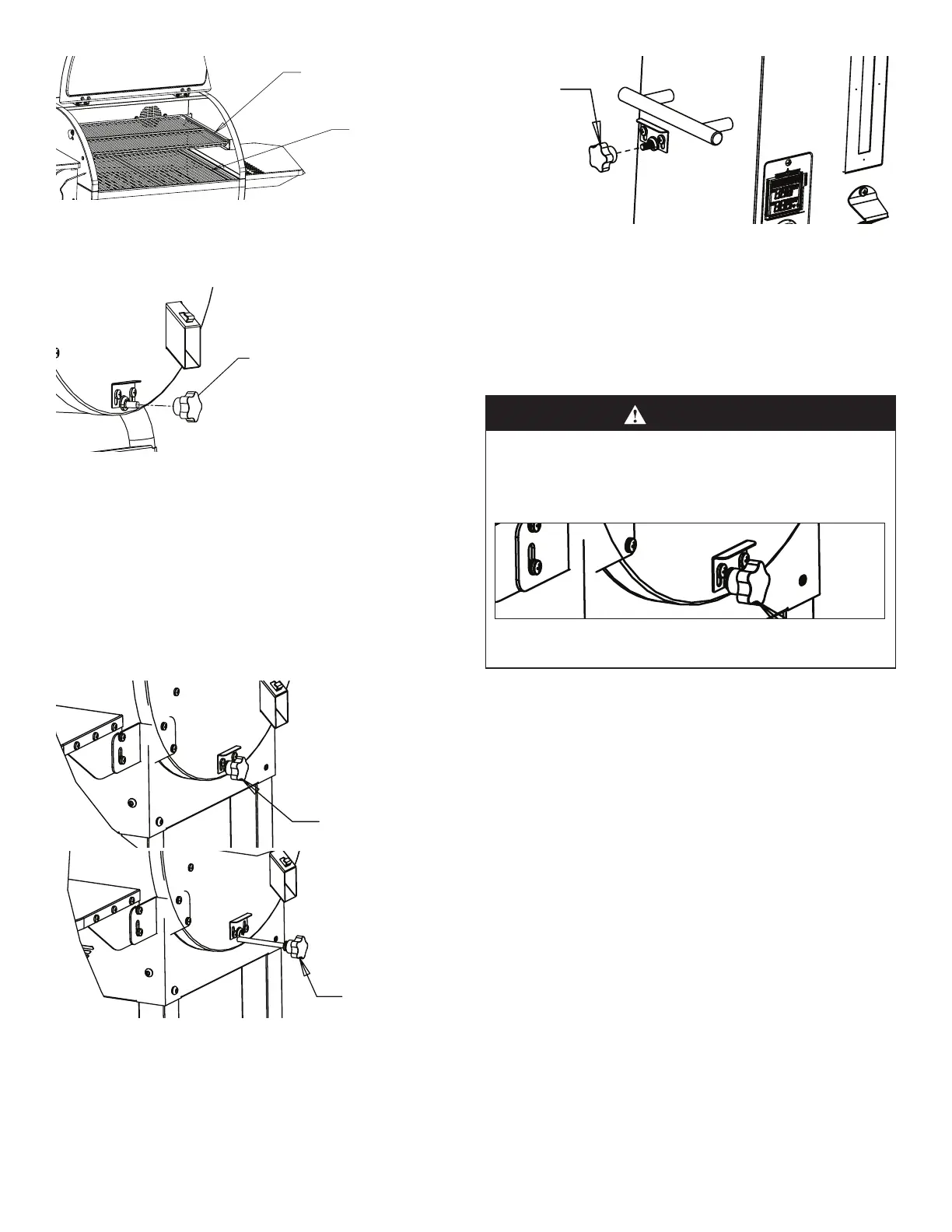

PG24ZG-1
UPPER GRATE(2)
PG24-70
LOWER GRATE(1)
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
FIG. 14
Clean-out Knob Assembly Installation
Hand tighten the burner clean-out knob as shown
in Fig. 15
FIG. 15
PG24-9 (1)
BURNER PULLOUT KNOB
Clean-out Port Knob
1. Clean-out Port knob must be pushed in when
grill is on. Make sure pullout lock is pushed
down and locks the knob to prevent inadvertent
opening of the clean-out port. See Fig 16.
2. Lift pullout lock and pull clean-out port knob to
empty ash into ash cup.
See Fig 17
3. See instructions for burner clean-out.
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
FIG. 16
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
FIG. 17
Hopper Clean-out Knob Assembly Installation
Hand tighten the hopper clean-out knob as shown
in Fig. 18.
PG24-9 (1)
PULLOUT KNOB
FIG. 18
Burner Clean-out
Before each use the burner should be cleaned out
by lifting the pullout lock and pulling the clean-
out port knob on the right side of the grill to open
the burner clean-out. This will allow the ash from
previous use to fall into the cup under the grill.
The cup should be removed and emptied and then
reinstalled before each use.
DANGER
Never Operate the Pellet grill without the ash
cup in place.
Make sure the burner clean-out port is closed
and locked before starting the grill.
WARMING RACK
COOKING GRATE
CLEANOUT PORT CLOSED
CLEANOUT PORT OPEN
Never open the burner clean-out port when
the grill is hot.
After cleaning out the burner make sure to close the
burner clean-out by pushing the clean-out port knob
in on the right side of the grill. Make sure to lift the
pullout lock and push the clean-out port knob all the
way in and lock in place with the pullout lock. Every
50 hours of use, remove the grill grates, grease
tray, and heat deflector and clean the inside of the
grill. If you notice a lot of ash blowing around in the
grill it is time to vacuum it out.
Filling the Auger Tube
Caution: Only use the feed setting when hopper
has run out of pellets. Feed setting is not for
normal use.
The first time you use your grill or any time the
hopper has run out of pellets you will need to fill
the auger tube. This simply means you must fill
the auger tube with pellets until pellets reach
the burner. This is done by selecting FEED from
the main menu: With the controller powered
on press the selector knob to enter the MENU.
Rotate the knob until FEED is shown and press
the selector knob again. This will turn the auger
on and the controller will display “FEED” and a
To Next Page
