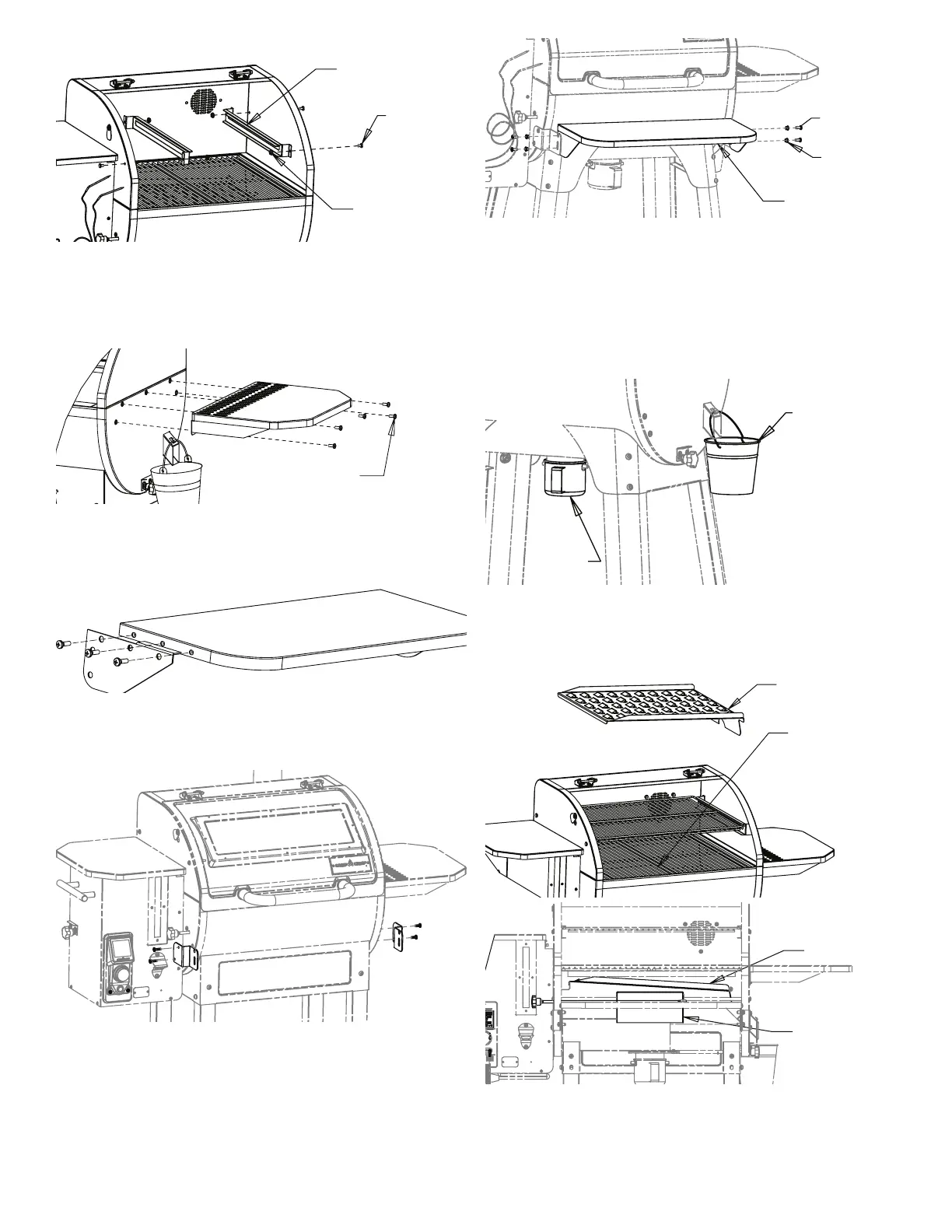

Camp Chef PG24MZGX - Grill Component Installation; Install Shelf and Brackets; Install Grease Bucket and Ash Cup; Install Drip Tray and Grates

M6 X 10 SCREW (4)
M6 FLANGE NUT (4)
UPPER GRATE BKT (2)
PG24ZG-2
FIG. 6
Install Shelf
(Optional-Do not install if installing sear box)
1. Install shelf as shown in Fig 7.
2. Tighten all hardware
M6 HANDLE SCREW
HANDLE DEFLECTOR
M6 X 15 SCREW
GREASE BUCKET
ASH CUP
FIG. 7
Installation Instructions
1. Install side shelf brackets as shown
in Fig 8.
FIG. 8
2. Remove the screws from the side of
the grill.
3. Install the brackets as shown in Fig 9.
4. Install the front shelf to the brackets as shown
in Fig 10.
Grease Bucket
1. Hang grease bucket from tube as shown
in Fig 11.
Ash Cup
1. Install Ash Cup as shown in Fig 11. Never use
grill without Ash Cup in place.
ASH CUP
GREASE BUCKET
FIG. 11
Install Drip Tray
1. Install the Drip Tray as shown in Fig 12
and Fig 13.
HEAT DEFLECTOR
DRIP TRAY
FIG. 12
HEAT DEFLECTOR
DRIP TRAY
FIG. 13
Warming Rack and Cooking Grate
1. Install the cooking grate as shown in Fig 14.
M6 X 20 BOLT (4)
SCREW BUSHING (4)
PGFS24-4
SHELF (1)
PGFS24-3
FIG. 10
