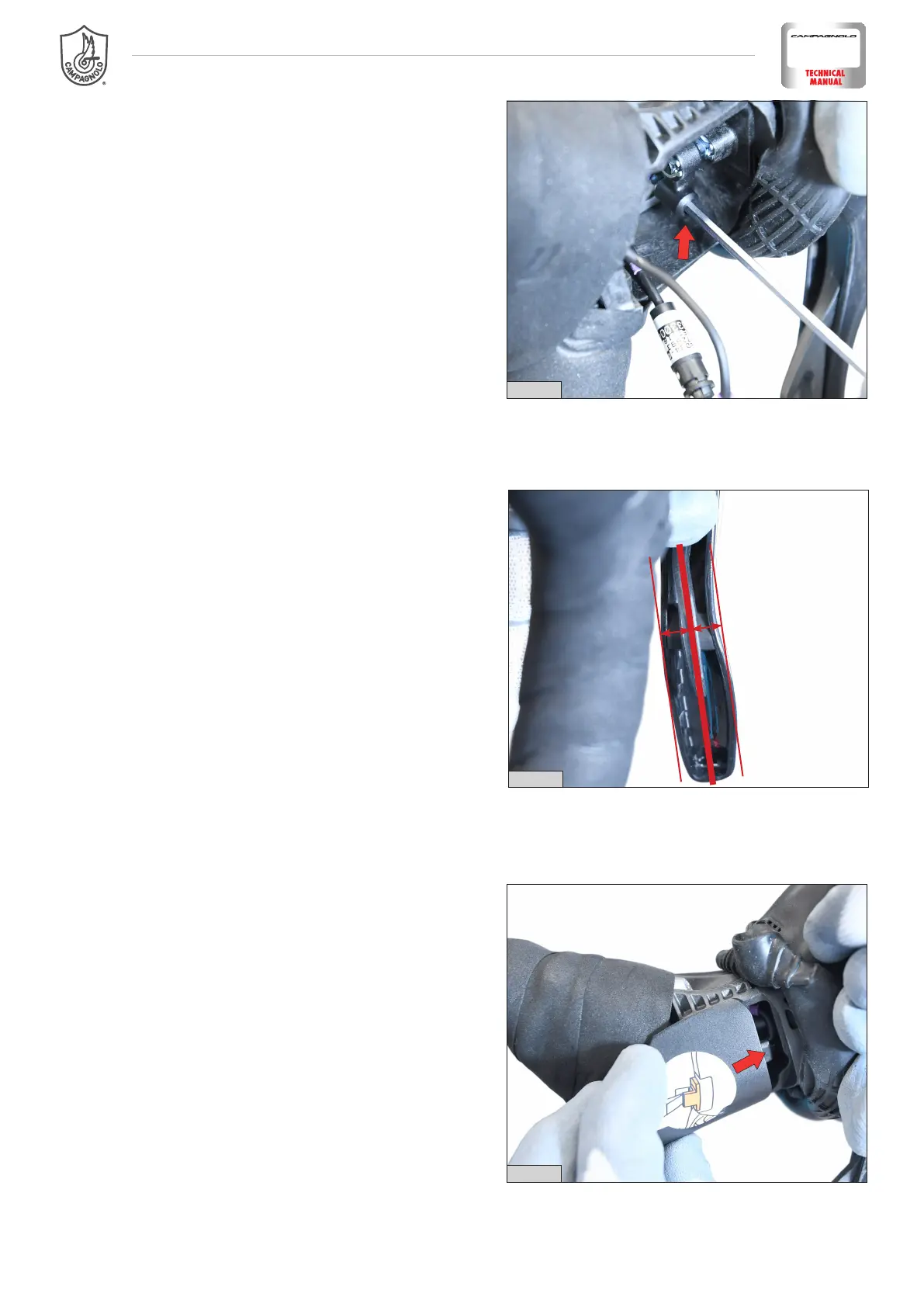

4) Using a 1.5 mm Allen wrench (Fig. 4), turn the pivot in the ham-
mer by lowering or lifting the pusher head on the underside of the
hammer.
6) Refit the cover on the control lever by placing the tooth at the
front and pressing the clip at the rear (Fig. 6).
7) Refit the hood and make sure it is positioned correctly on the
control lever.
5) The lever must be adjusted so that the click is heard when the
outer lever is pushed approximately halfway down (Fig. 5).
