1.1 - ADJUSTING OPERATION OF OUTER LEVER
If you do not hear a click when the outer lever is operated or it
clicks when in a position that requires excessive rotation of the
lever, you can check and modify the operation of the lever hammer
as follows.

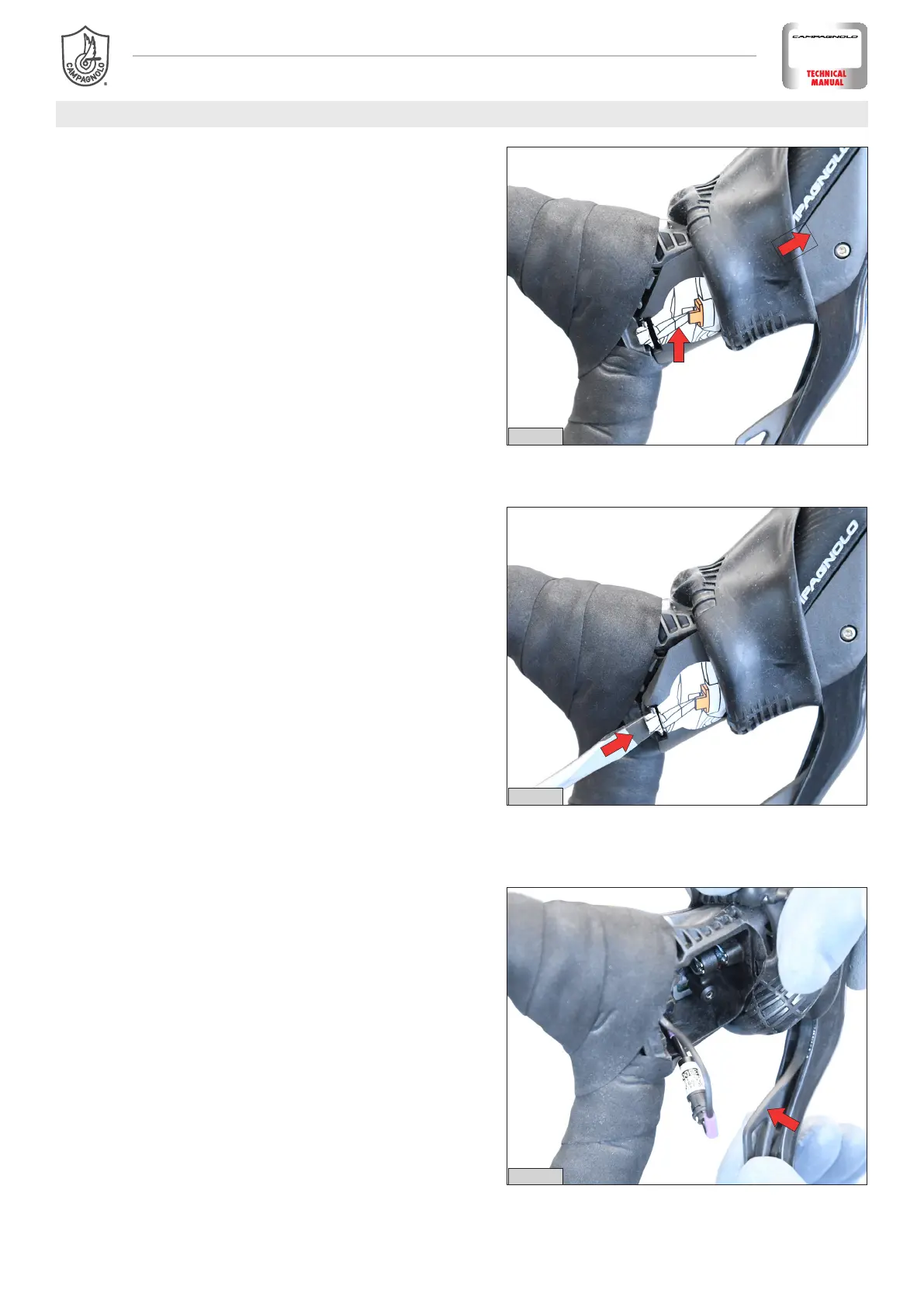

1) Move the hood to access the cover in the control lever (Fig.1).
2) Open the cover by using a flathead screwdriver to release the
cover clip (Fig. 2).
3) Press the outer lever to check that the hammer is operating cor-
rectly (Fig. 3).
