PROBLEMS

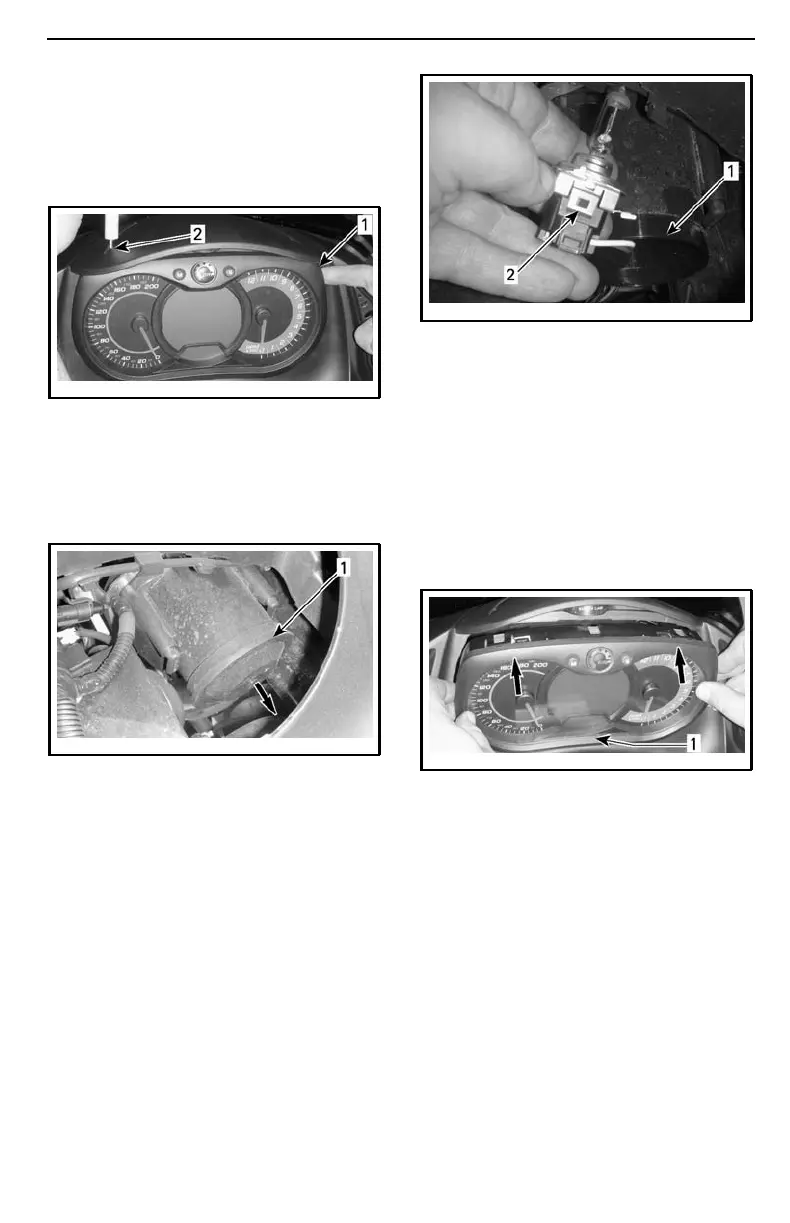

5. Press on the screwdriver and gently
pry out the other corner of the clus-
ter.
The upper edge of the cluster will tilt
backward.
rmo2008-001-122_a
1. Insert a finger to maintain the opening of
the upper corner
2. Press on the screwdriver inside the opposite
hole
6. Pull out the housing cap as indicated
below.
rmo2008-001-123_a
1. Housing cap
7. Turn the connector in the housing
counterclockwise to remove.
8. Remove the bulb by releasing b
oth
clips with a small flat head screw-
driver.
rmo2008-001-124_a
1. Bulb housing
2. Bulb retaining clip
9. Install the new bulb by clipping it to
the connector.
10. Install the connector in the bulb
housing and put the housing cap
on.
11. Install the cluster by first inserting
the bottom edge and then firmly
pushing the upper edge with both
hands.
rmo2008-001-125_a
INSTALLING CLUSTER
1. Inserting bottom edge of cluster first and
then pushing the upper edge
12. Ensure the cluster is properly in-
stalled. Repeat step 11 if neces-
sary.
Turn Signal Light — Front
1. Remove the lens with a Phillips
head screwdriver.
______________
111
