UNCRATING
rbl2013-003-007
TYPICAL

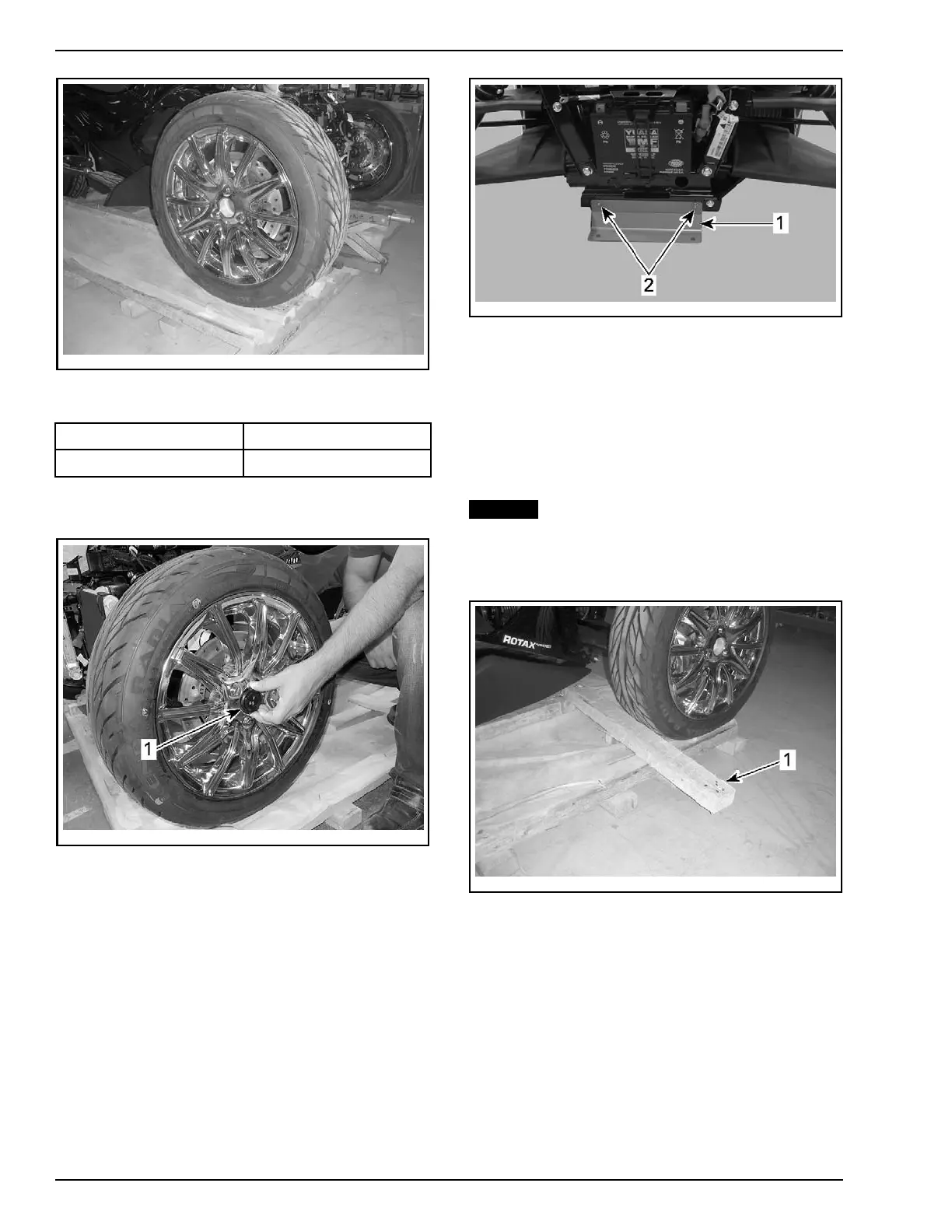

7. Torque wheels lug nuts.
PA RT SPECIFIED TORQUE
Wheel lug nut 105 N•m (77 lbf•ft)
8. Install wheel caps (inside front storage com-
partment).
rbl20
14-004-033_a
TYPICAL
1. Front wheel cap to install, one each side
9. Remo
ve metal plate that retained front of vehi-
cle t
o crate base.
NOTE: This step is only applicable if a hoist was
used to lift front of vehicle from crate base for tire
installation.
rbl2014-002-001_a
1. Metal p la te to re move
2. Screws to remove
Vehicle Removal
NOTE: Parking brake pedal brakes only the rear
wheel. Press the pedal down to apply the parking
brake. Press the pedal down again to remove it.
The parking brake pedal is behind the operator's
left footpeg.
NOTICE
Do not apply excessive force when
applying or removing the parking brake.
1. Place a piece of wood behind the front wheels
to prevent the vehicle from rolling.
rbl20
13-003-008_a
TYPICAL - FRONT RH WHEEL
1. Wood piece
2. Remov
e the piece of wood at the back of the
crate
and insert it under the rear wheel.
10 / 41 2014-3 PREDELIVERY
