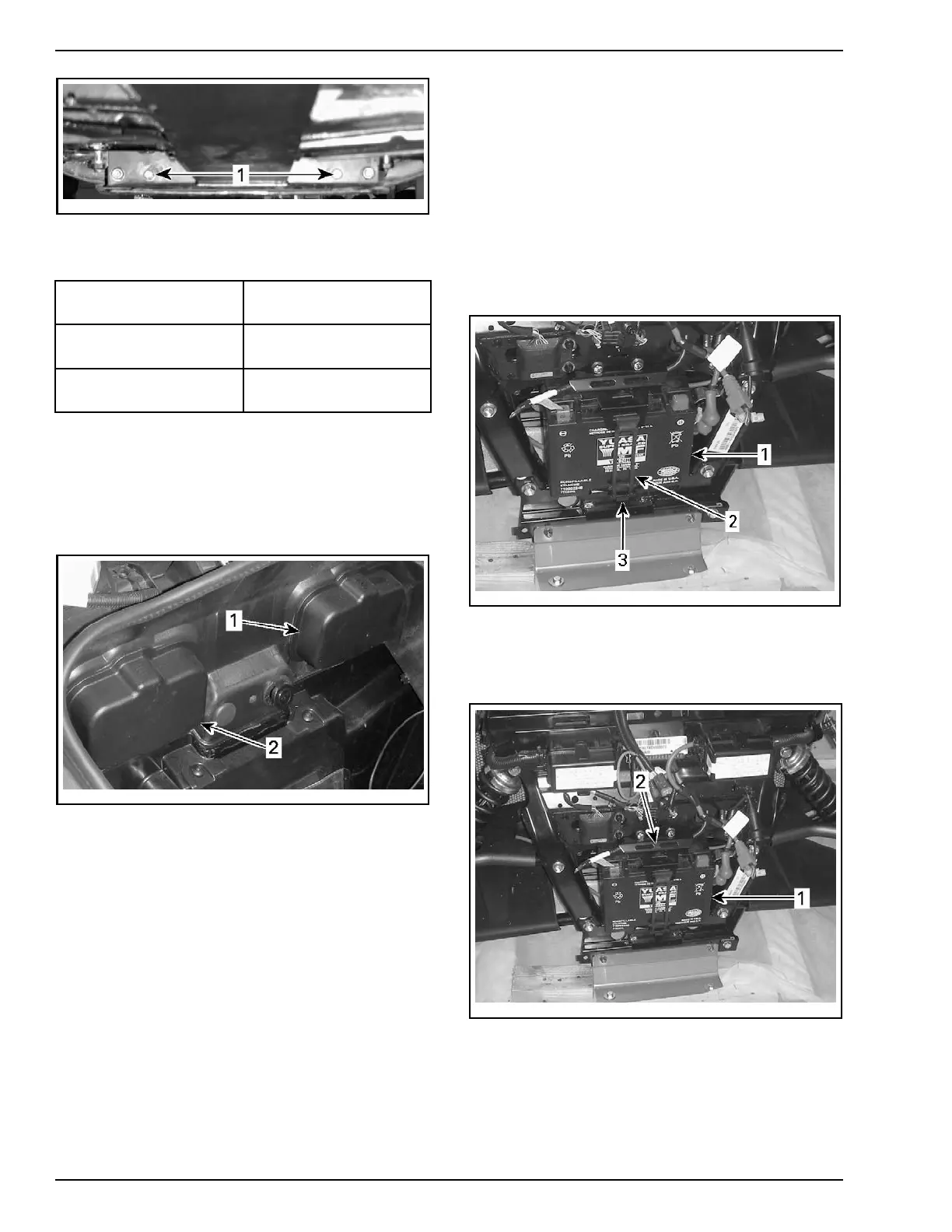

PARTS TO BE INSTALLED
rbl2008-003-213_b
BOTTOM SCREWS
1. M6 X 12 hexagonal flanged screws
NOTE: Install all screws before tightening them.
FRONT CARGO
MODULE SCREWS
SPECIFIE D TOR
QUE
M6 X 20 hexagonal
forming screws (4)
4.5 N•m (40 lb
f•in)
M6 X 12 hexagonal
flanged screws (2)
10 N•m (89 lb
f•in)
18. Reinstall
the fuse box service covers as fol-
lows:
18.1 Position the bottom of the fuse box ser-
vice cover and push down and in until
the top of the fuse box service cover en-
gages.
rmo2013-003-011_a
TYPICAL
1. L eft fuse box service cover
2. Right fuse box service cover
Battery
Battery Activation
The battery is fully activated and only requires an
initial top up charge to ensure it is fully charged
prior to vehicle delivery.
NOTE: If you do not have a fully charged new bat-
tery at hand, the battery can be removed from the
vehicle, fully charged as per manufacturers spec-
ification and reinstalled in the vehicle later.
IMPORTANT: It is of the upmost importance for
the battery life span that the initial charging be
performed as recommended. Refer to the latest
CAN-AM ROADSTER BATTERY ACTIVAT ION,
CHARGING AND MAINTENANCE
. Correct key-
words to search the latest Service Bulletin in
BOSSWEB or Info Center are :"roadster battery
activation" including quotation marks.
Install charged battery in battery rack.
Battery Removal
The battery is located on the front frame member,
just aft of the front cargo module.
1. Pull down the rubber strap to disengage it from
the hook.
rbl2013-003-012_a
TYPICAL
1. Battery
2. Rubber strap
3. Hook
2. Remove bracket and battery from the vehicle.
rbl2013-003-012_b
TYPICAL
1. Battery
2. Bracket
16 / 41 2014-3 PREDELIVERY
