UNCRATING
UNCRATING
Crate Cover Removal
NOTICE
Allowing the crate to drop may cause
serious damage to vehicle.
1. Position the crate on a firm, level surface.
2. Remove all screws holding crate cover to crate
base.
NOTE: Screws that are used are Robertson
†
#2
type (or equivalent) that require the use of an ap-
propriate screwdriver.

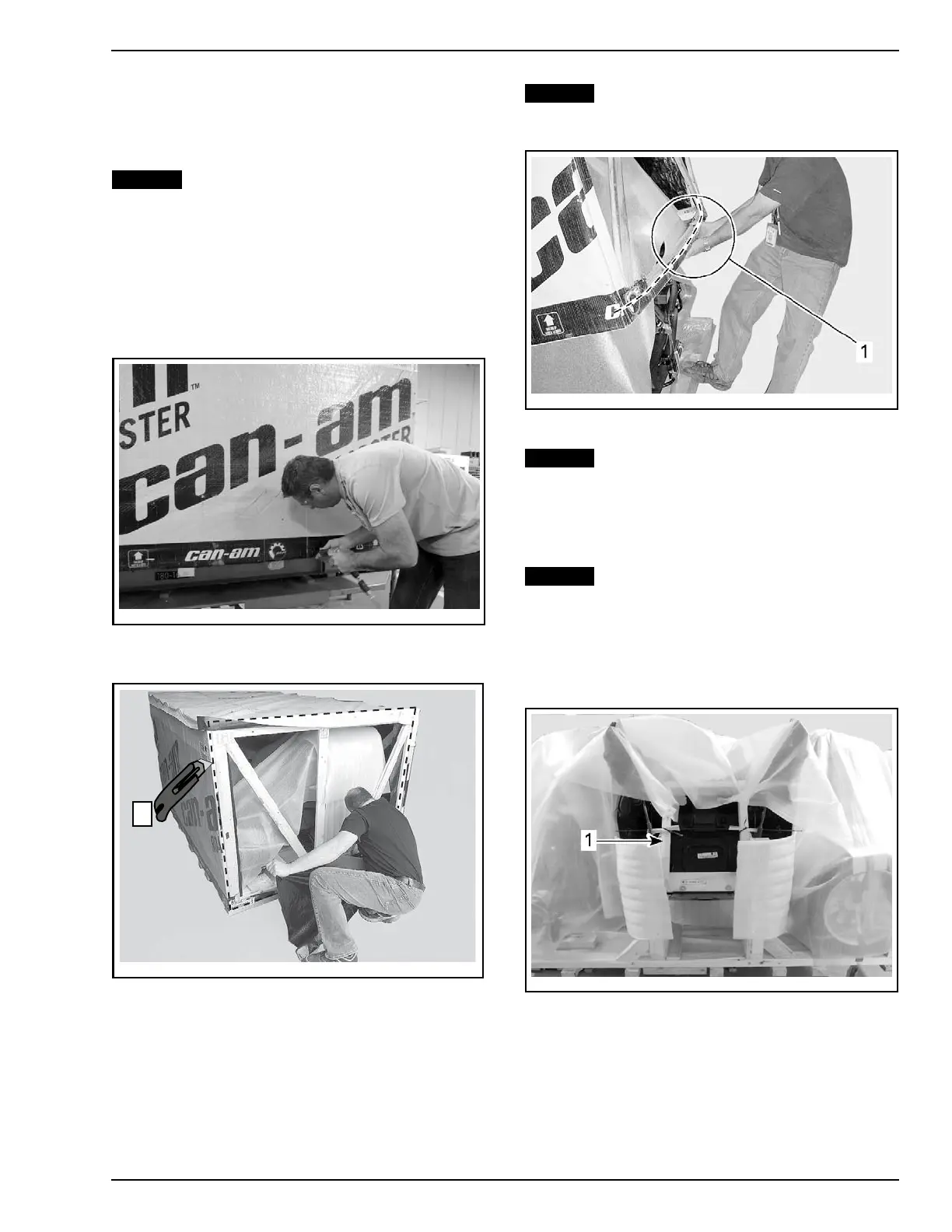

rbl2014-004-026
SCREW REMOVAL FROM CRATE COVER
3. Carefully cut both ends of crate tarpaulin.
1
rbl2014-004-001_a
1. Care fully cut both ends of crate tarpaulin
4. Locate front of vehicle
5. At front end of vehicle, pull crate cover out to-
ward you, then up to clear vehicle fascia.
NOTICE
Do not lift crate cover vertically. Pull
crate cover out and up at front end of vehicle.
Refer to illustration.
rbl2010-002-004_a
FRONT OF VEH
ICLE
1. Pull crate cover out and up t o clear front fascia of the vehicle
NOTICE
The crate cover must be pulled out-
ward while lifting it to avoid damage to the ve-
hicle.
Parts and S
ub-crate Removal
NOTICE
Be careful not to scratch the front
bumper and front fascia.
NOTE: The sub-crates are located on each side of
the vehicle.
1. On LH side, remove front cargo module sub-
crate.
rbl2014-004-027_a
TYPICAL - LH SIDE
1. Sub-crate that contains front cargo module
† Robertson is a registered trademark of Robertson Inc.
PREDELIVERY 2014-3 5 / 41
