GAS HOB UNITS WITH GLASS RECESSED LID ▪ FC series

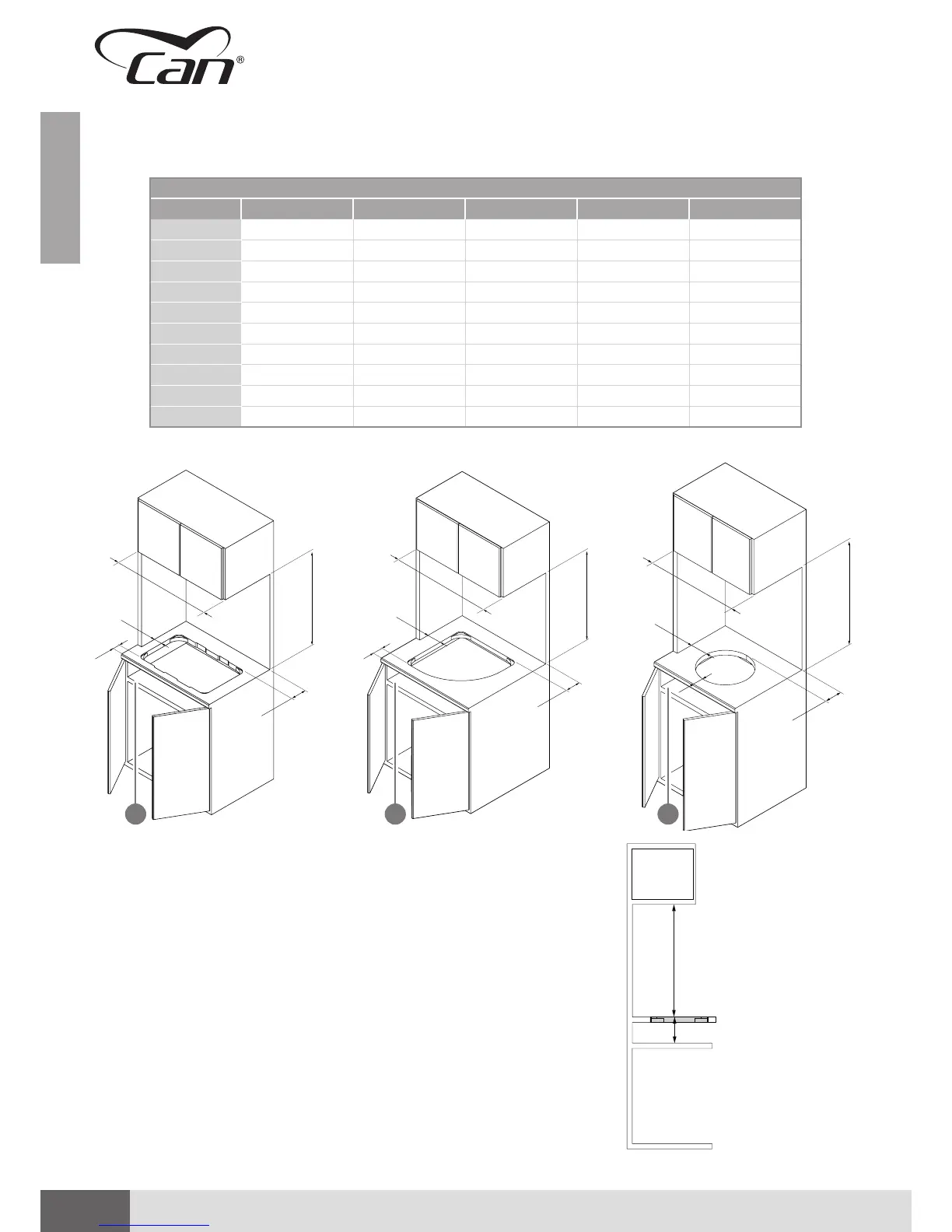

SAFETY DISTANCES
The appliance must be kept a certain distance away from side and upper walls. Consult the following table:
dimensions and minimum safety distances for installation
model a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
FC1336
50 55 640 650 110
FC1337
50 105 550 650 110
FC1343
50 100 680 650 110
FC1344
50 100 680 650 110
FC1345
50 100 540 650 110
FC1347
50 100 640 650 110
FC1348
50 100 710 650 110
FC1349
50 55 826 650 110
FC1350
50 55 826 650 110
FC1352
50 55 858 650 110
max
150 mm
D
D
E
C
B
A
1
D
C
B
E
A
1
D
C
E
B
A
1
If the appliance is recessed above an oven or another
powered home appliance, a separation panel must
also be installed as indicated in point 1.
Remember to prepare adequate holes in the furniture
to pass through the gas, water and electrical power
pipes of the appliance, if any.
