9

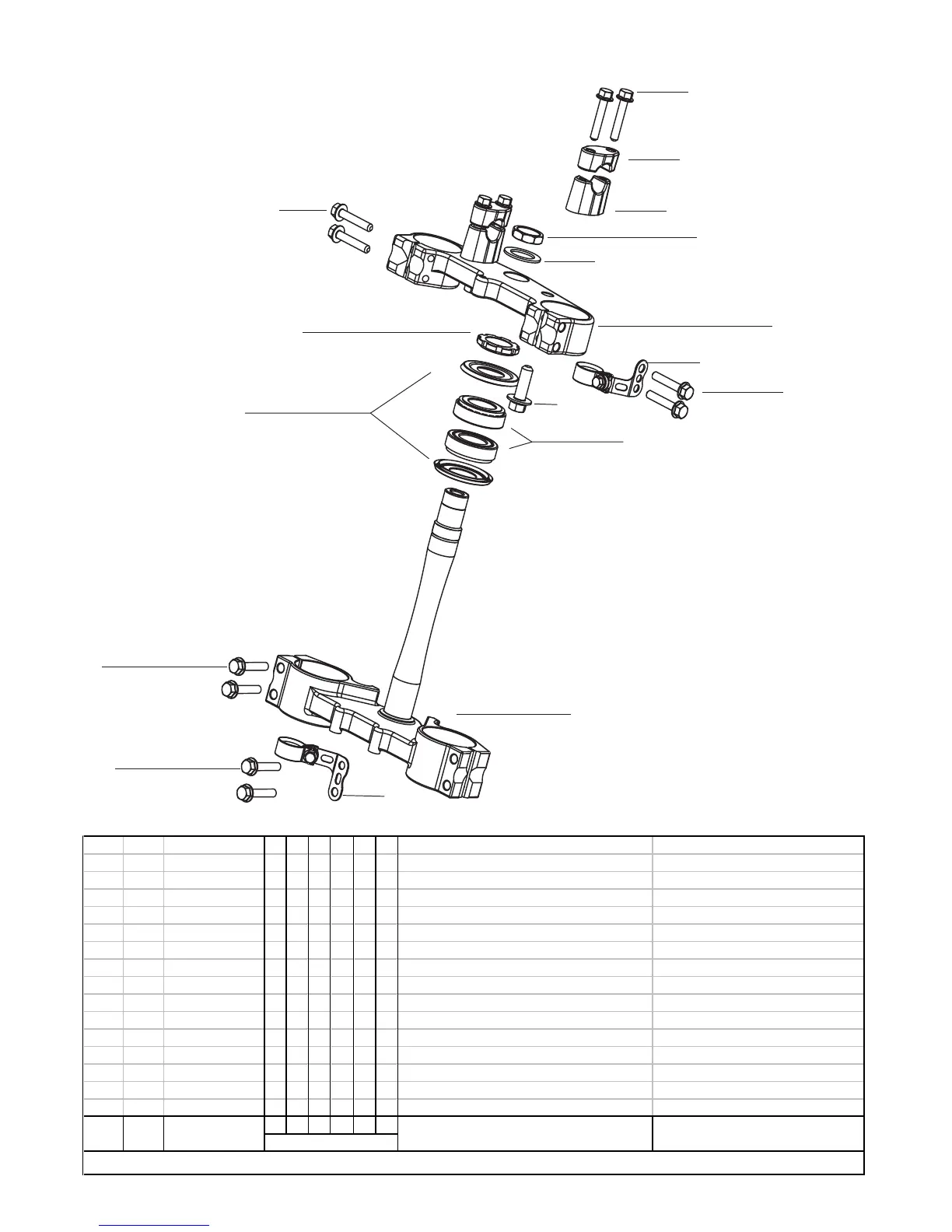

Steering Head
8 *
8
6 *
2
8 *
5 *
8
4
8
1
11
10
9
3
7
13
12
13 2 5000760 HEADSET BEARING, UPPER
12 2 5000722 HEADSET SEAL, UPPER
11 1 5000717 STEERER WASHER
10 1 5000170 SLOTTED LOCKNUT
9 1 5000174 STEERER NUT
* 4 5000728 X X FHB, M8X55 mm FOR USE W/ HANDGUARD BRCKT
8 12 5000100 X X X X FHB, M8X45 mm
7 2 5000101 FHB, M12X35 mm, NLK
* 2 5002537 X X X CLAMP, HANDLEBAR, UPPER
6 2 5000534 X X X CLAMP, HANDLEBAR, UPPER
* 2 5002533 X X X CLAMP, HANDLEBAR, LOWER
5 2 5000533 X X X CLAMP, HANDLEBAR, LOWER
4 1 012-5002097 LOWER TRIPLE CLAMP ASSY
3 1 5000001B UPPER TRIPLE CLAMP
2 FRNT BRKE GDE, UPPER SEE FRONT BRA KE GUIDE, UPPER
1 FRNT BRKE GDE, LOWER SEE FRONT BRAKE GUIDE, LOWER
XSEEAERC
STEERING HEAD PARTS LIST
ITEM
NO
QTY
REQD
DEA LER PA RT
NUMBER
DESCRIPTION NOTES
MODEL
