Cannondale E440 - Drive Chain Rollers

65
Printed : 1/9/02
65
1. To replace the buffer, place the vehicle on a
suitable stand.
2. Remove the bolts and the old buffer. Make sure
you clean the buffer mounting screws with
contact cleaner and apply Loctite #242 agent
before installing the new buffer.
3. Install the new buffer and tighten screws to
specified torque.
TORQUE : Drive, swingarm buffer,
mounting screws
17.0 lbf•in (2.0 N•m)
DRIVE CHAIN GUIDE BLOCK
Inspect the drive chain guide and drive chain guide
block for cracks, wear, and/or any other damage.
Replace the drive chain guide block with a new one if
it is damaged or the wear (a) is out of specification.
SERVICE: Drive, chain guide block,
thickness, standard
0.5 inches (12 mm)
SERVICE: Drive, chain guide block,
thickness, minimum
0.1 inches (3 mm)
Check the drive chain guide bolts and tighten to
the specified torque if necessary.
SERVICE: Drive, chain guide, mounting
bolts
9 lbf•ft (12.2 N•m)
DRIVE CHAIN ROLLERS
Inspect the upper and lower drive chain rollers for
cracks, wear, and/or any other damage. Replace the
drive chain roller with a new one if the outside
diameter (a) is out of specification.
SERVICE: Drive, chain rollers, diameter,
standard
1.4 inches (35.2 mm)
SERVICE: Drive, chain rollers diameter,
minimum
1.3 inches (32 mm)

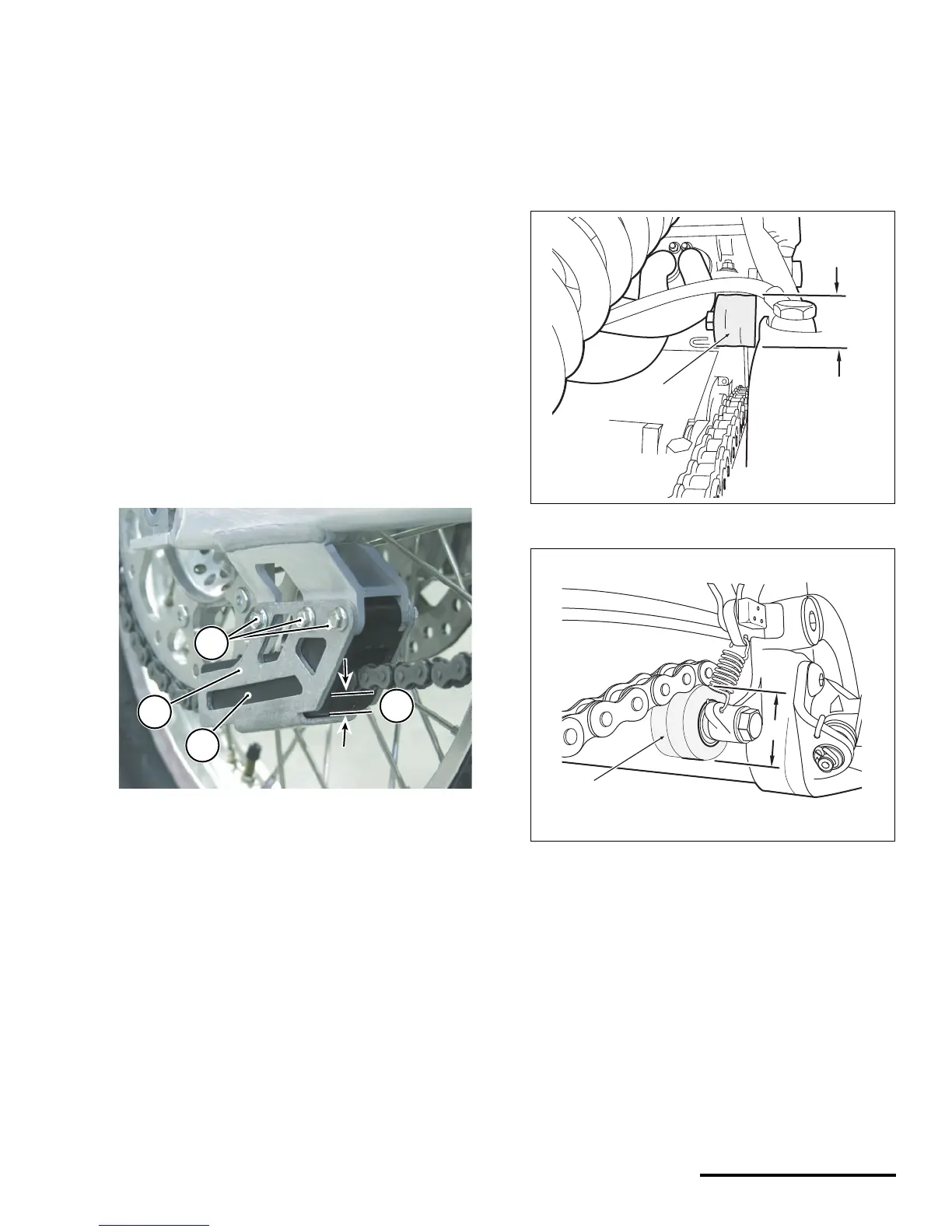

1. Drive chain guide
2. Bolts
3. Drive chain guide block
a. Minimum thickness
(1)
(2)
(a)
1
2
a
3
1. Upper drive chain roller
a. Outside diameter
1. Lower drive chain roller
a. Outside diameter
(a)
(1)
(a)
(1)
