ELECTRICAL
FUSE REPLACEMENT
1. To replace a fuse, remove the seat. See seat
removal in this manual.

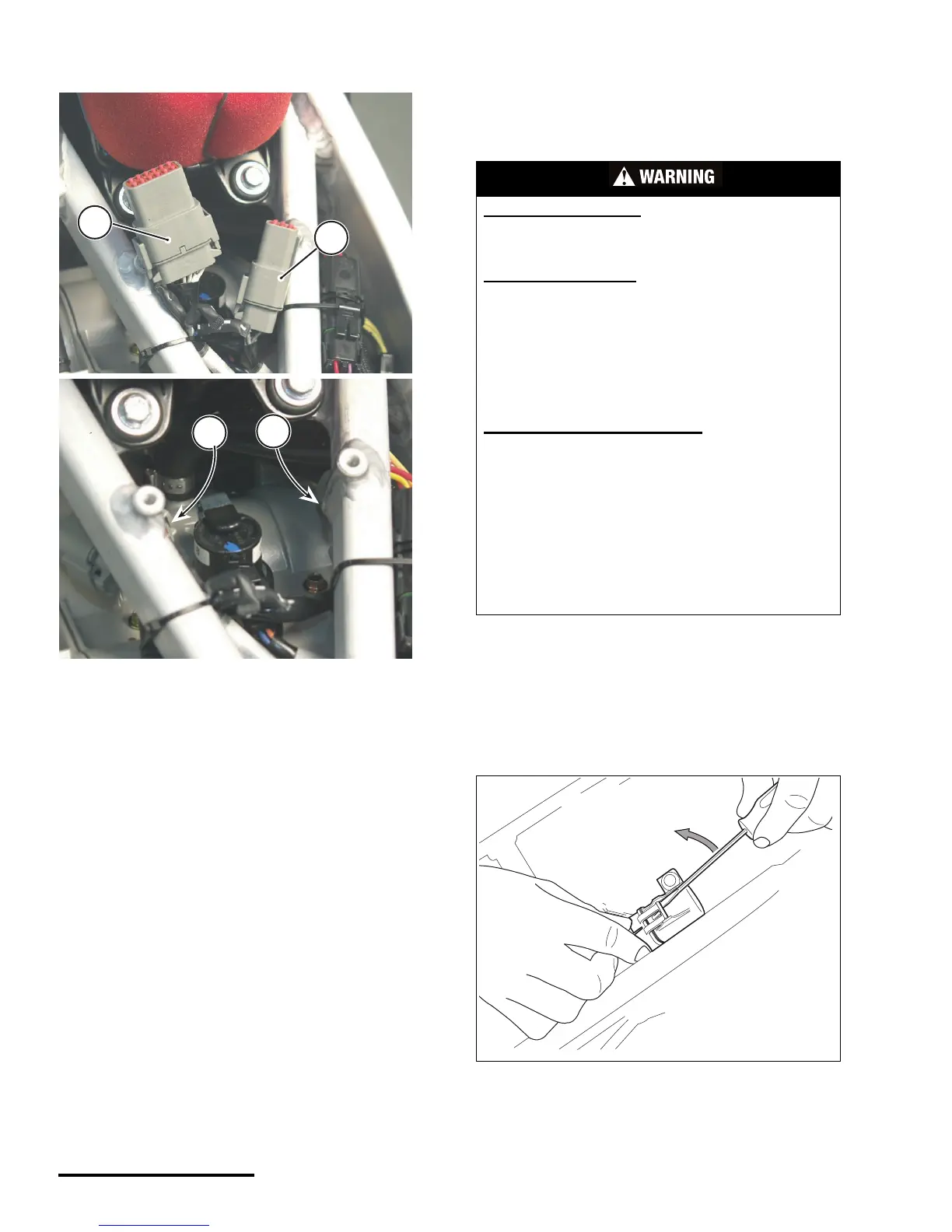

2. Use a thin blade screwdriver to lift up on the
latch.
In the top photo, the connectors have been
positioned outside their normal location for clarity.
The bottom photo shows the connectors as they are
correctly stowed under the framework.
1. Diagnostic connector
2. Interface connector
1
2
2
1
POTENTIAL HAZARD
Using an unspecified fuse or shorting the fuse
holder.
WHAT CAN HAPPEN
Using a fuse with a rating other than specified or
using other materials in place of the fuse will cause
damage to system. A malfunctioning electrical
system increases the risk that you may be seriously
injured or killed while operating the vehicle. For
example, an electrical fire can develop from a
system overload or you could lose vehicle lighting.
HOW TO AVOID THE HAZARD
Always use a replacement fuse of the specified
rating.
Never use other materials in place of the fuse.
If a fuse blows immediately after replacement have
the electrical circuits checked by an authorized
Cannondale Motorsports Dealer.
Check the condition of the wiring harness and
connectors before replacing a blown fuse.
Make sure the lighting is switched off when
replacing a fuse.
1. Fuse socket
2. Latch
3. Fuse housing
