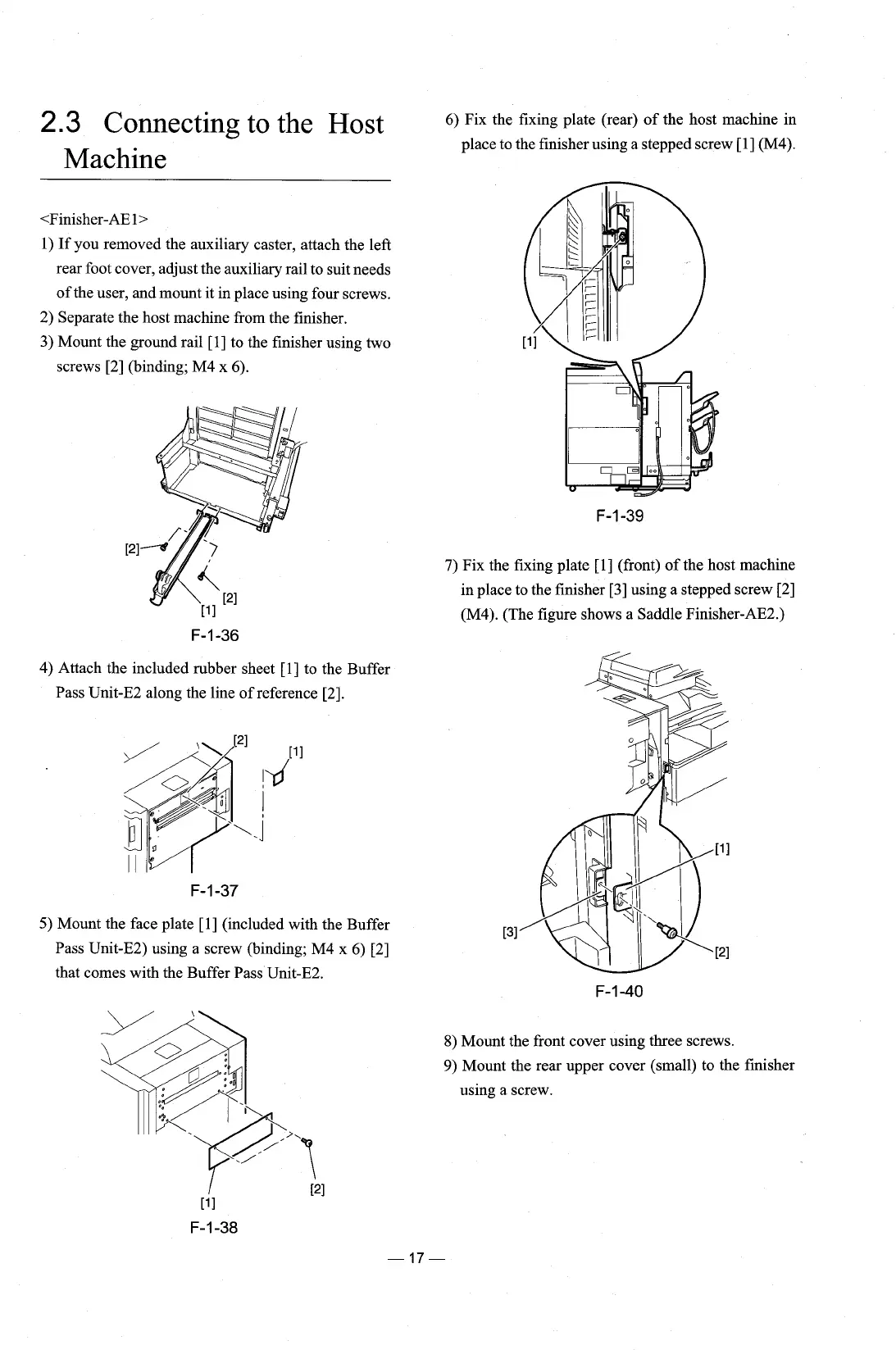

2.3 Connecting to the Host
Machine
6) Fix the fixing plate (rear) of the host machine in
place to the finisher using a stepped screw
[l] (M4).
<Finisher-AE 1 >
1) If you removed the auxiliary caster, attach the left
rear foot cover, adjust the auxiliary rail to suit needs
of the user, and mount it in place using four screws.
2) Separate the host machine from the finisher.
3) Mount the ground rail
[I] to the finisher using two
screws [2] (binding; M4
x 6).
4) Attach the included rubber sheet
[I] to the Buffer
Pass Unit-E2 along the line of reference
[2].
5) Mount the face plate [I] (included with the Buffer
Pass Unit-E2) using a screw (binding; M4 x 6) [2]
that comes with the Buffer Pass Unit-E2.
7) Fix the fixing plate [l] (front) of the host machine
in place to the finisher [3] using a stepped screw [2]
(M4). (The figure shows a Saddle Finisher-AE2.)
8) Mount the front cover using three screws.
9) Mount the rear upper cover (small) to the finisher
using a screw.
