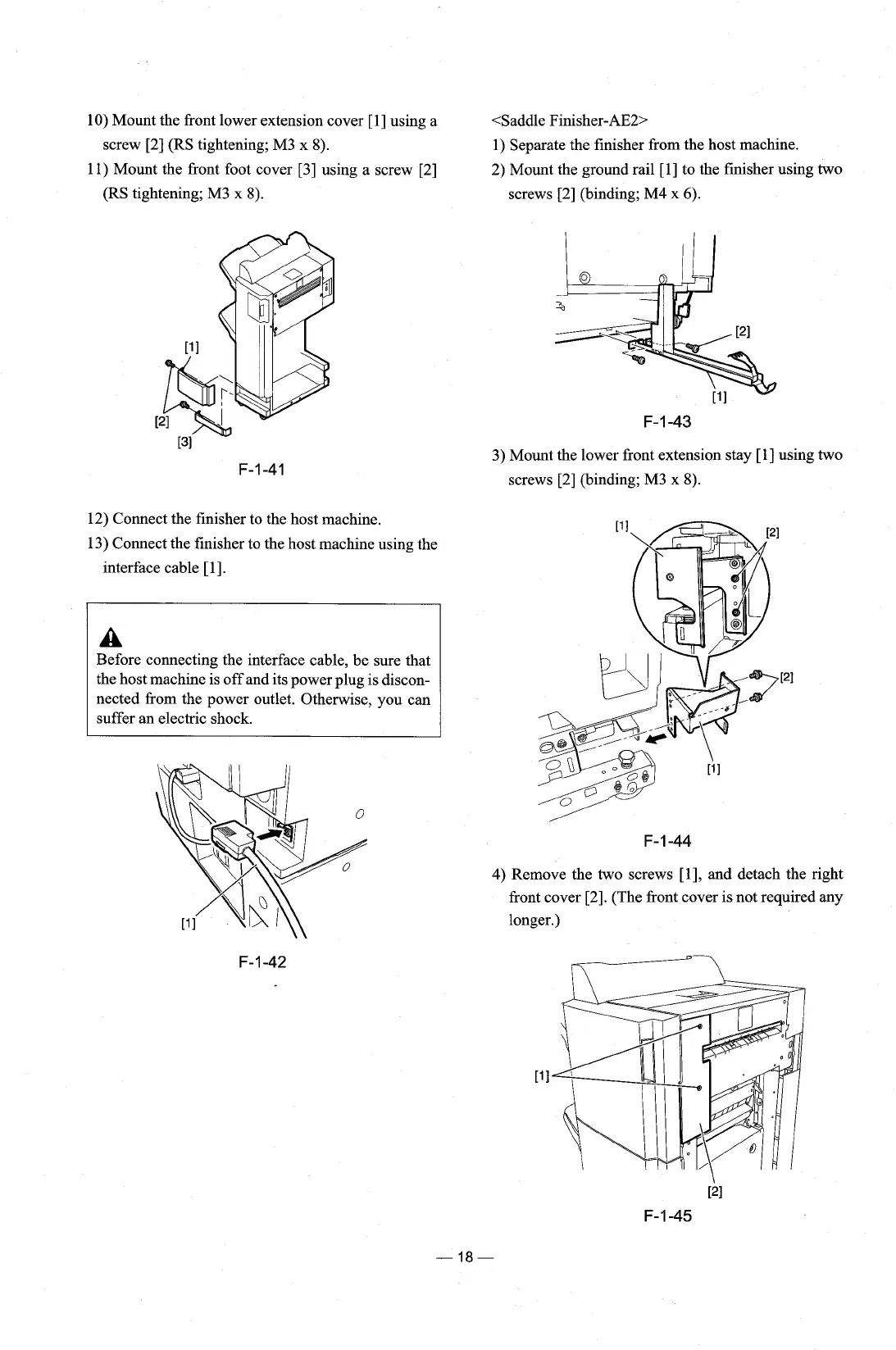

10) Mount the front lower extension cover [I] using a
screw [2] (RS tightening; M3 x 8).
11) Mount the front foot cover [3] using a screw [2]
(RS tightening; M3 x 8).
12) Connect the finisher to the host machine.
13) Connect the finisher to the host machine using the
interface cable
[I].
A
Before connecting the interface cable, be sure that
the host machine is off and its power plug is discon-
nected from the power outlet. Otherwise, you can
suffer an electric shock.
<Saddle
Finisher-AE2>
1) Separate the finisher from the host machine.
2) Mount the ground rail
[I] to the finisher using two
screws
[2] (binding; M4 x
6).
3) Mount the lower front extension stay [l] using two
screws [2] (binding; M3 x 8).
4) Remove the two screws
[I], and detach the right
front cover
[2]. (The front cover is not required any
longer.)
To Next Page
