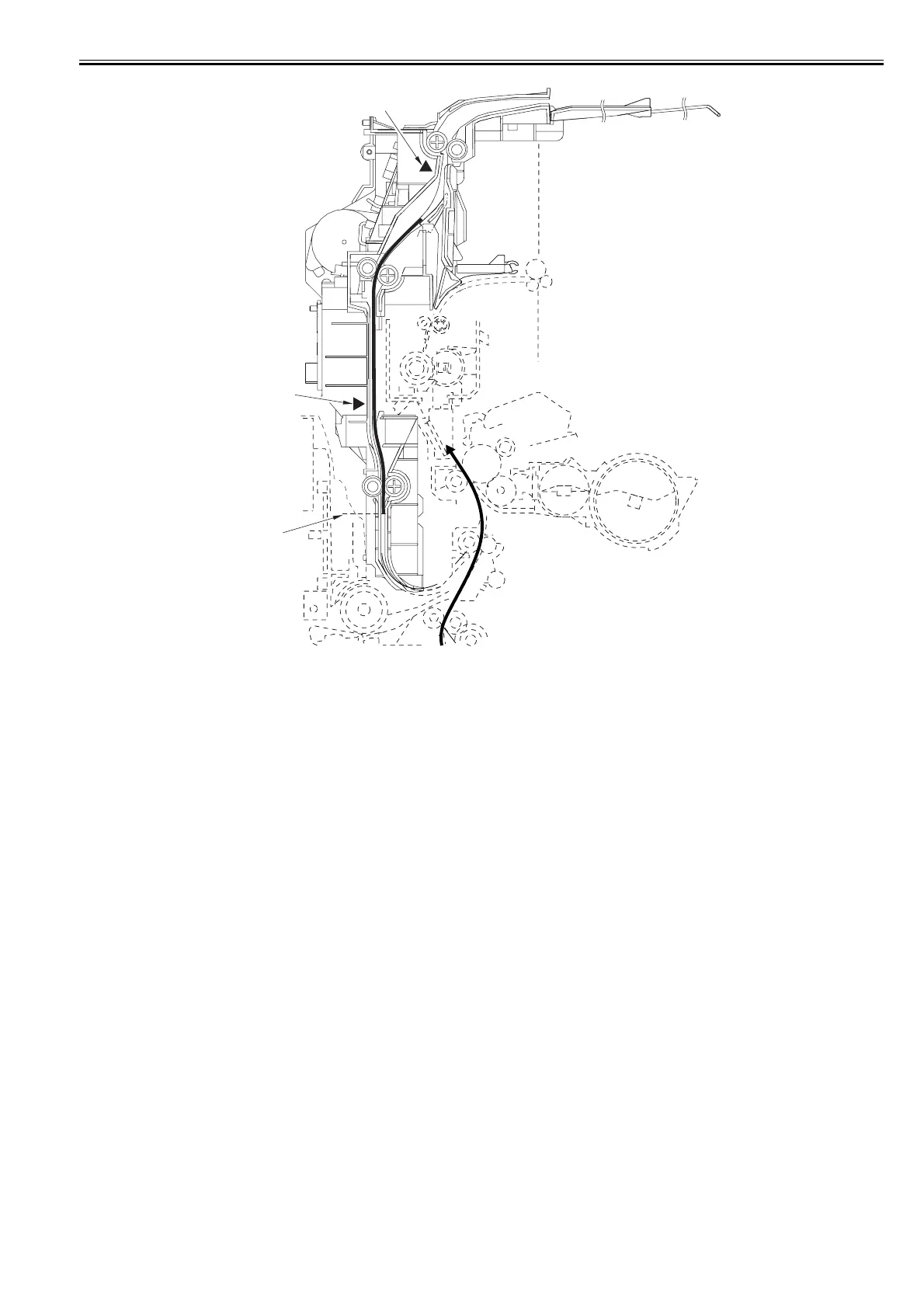

6) After lapse of the predetermined time, the first paper is picked again. When the predetermined time lapses after the leading edge of the paper is detected by the
pre-registration sensor in the host machine, the feed motor (M1001) stops.
SR1002
SR1003
Standby
point
