Chapter 4
4-1
4.1 Maintenance and Inspection
4.1.1 Periodically Replaced Parts
4.1.1.1 Periodically Replaced Parts
0010-4350
This machine has no periodically replaced parts.
4.1.2 Durables
4.1.2.1 Durables
0010-4351
This machine has no durables.
4.1.3 Periodical Servicing
4.1.3.1 Periodical Servicing Items
0010-4353
This machine has no periodical servicing items.

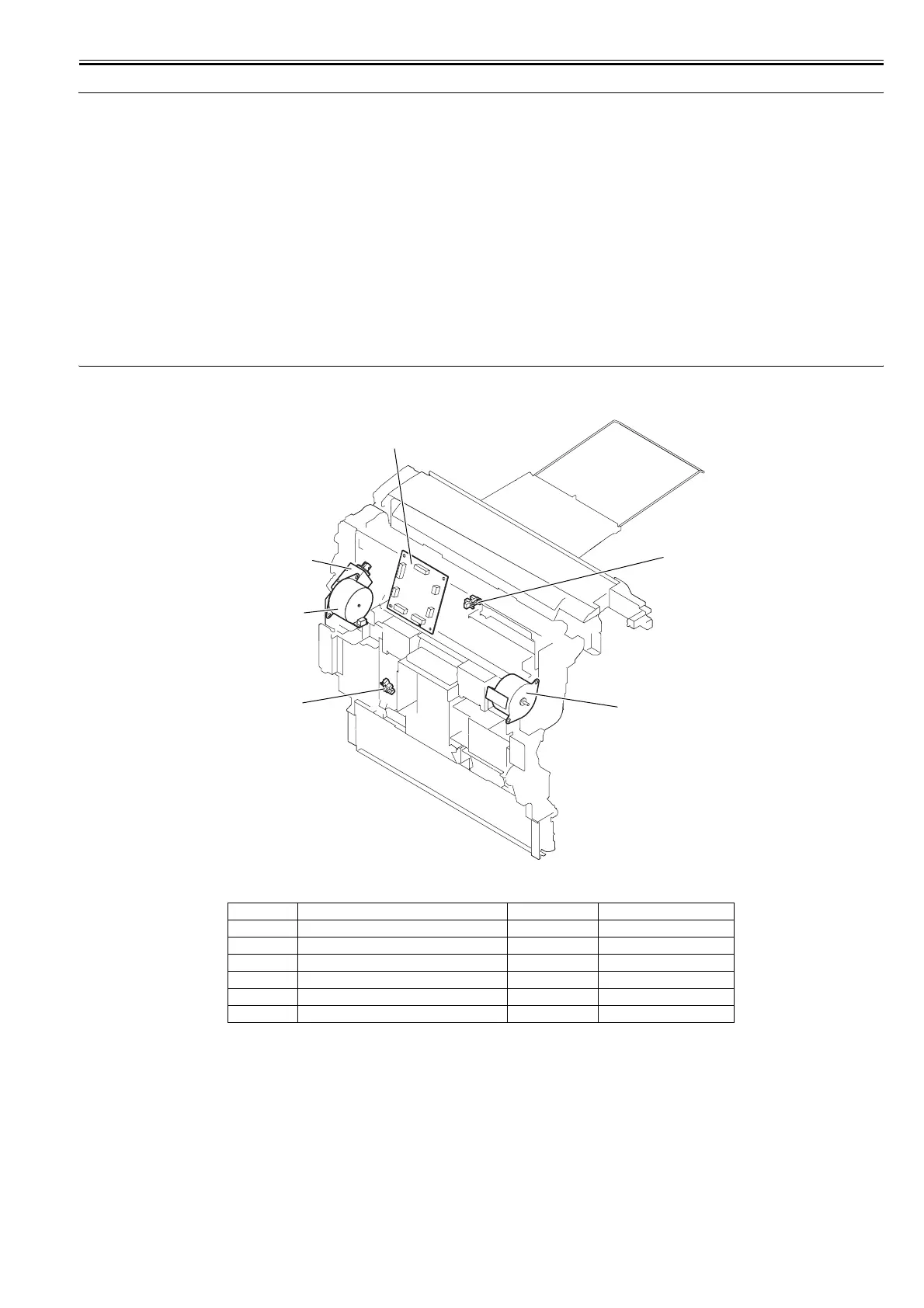

4.2 Outline of Electrical Components
4.2.1 Outline of Electrical Components
0010-4354
F-4-1
T-4-1
Ref. Name Parts number JAM code/E code
[1] Duplex controller PCB FM2-4515 E052
M1001 Feed motor FK2-1114
M1002 Reversal motor FK2-1114
SL1001 Duplex flapper solenoid FL2-3744
SR1002 Duplex paper sensor 1 (upper) WG8-5696 0120, 0221
SR1003 Duplex paper sensor 2 (lower) WG8-5696 0124, 0228
M1002
SR1003
SL1001
[1]
SR1002
M1001
