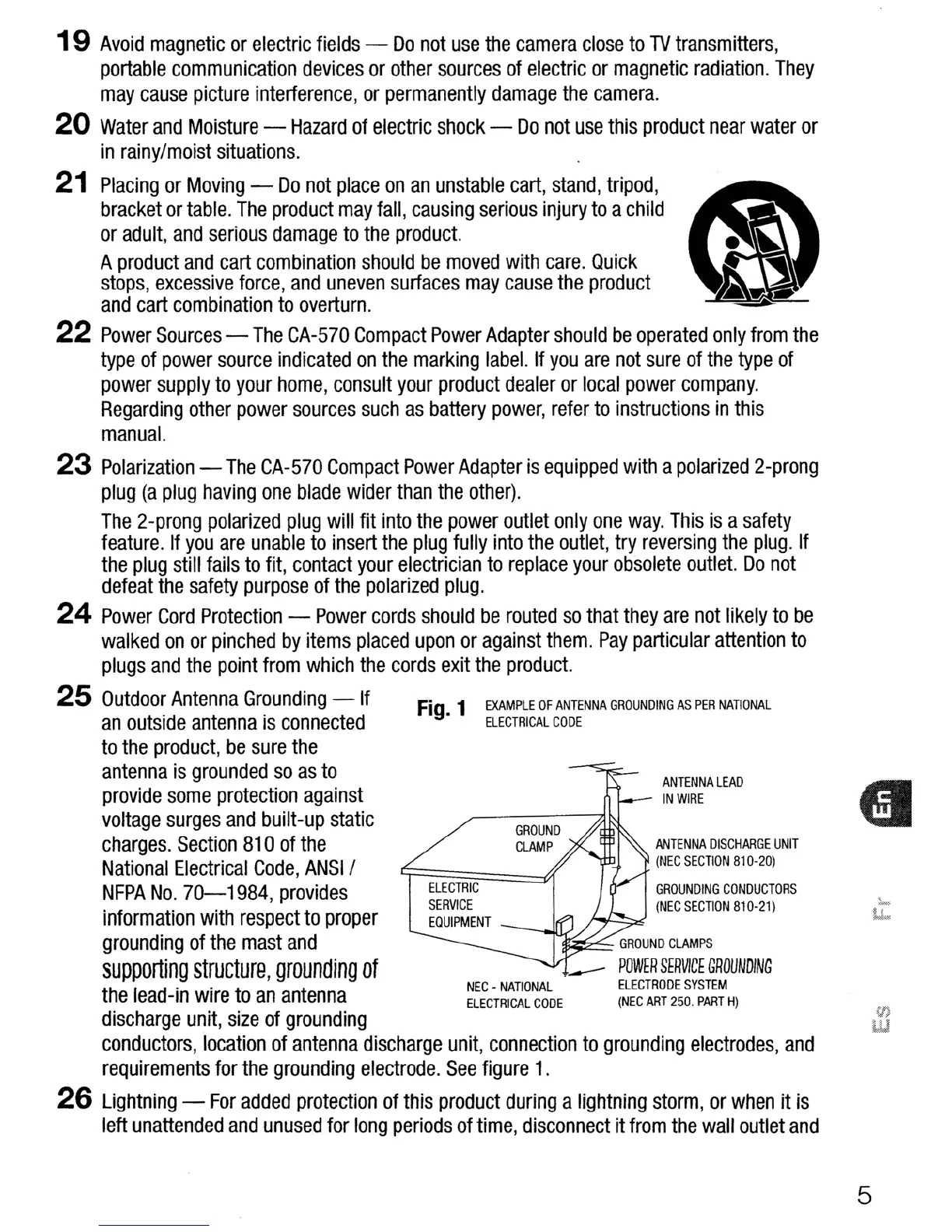

Canon FS30 - Page 5

Fig. 1 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE
ANTENNA LEAD
IN WIRE
ANTENNA DISCHARGE UNIT
(NEG SECTION 810-20)
GROUNDING CONDUCTORS
(NECSECTlON 810-21)
H';>d
---
NEe - NATIONAL
ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT --=:fii~;:;-
_ GROUND CLAMPS
POWER SERWCE GROUWOIWG
ELECTRODE SYSTEM
(NEG ART 250. PART H)
19 Avoid magnetic or electric fields - Do not use the camera close to TV transmitters,
portable communication devices or other sources of electric or magnetic radiation. They
may cause picture interference, or permanently damage the camera.
20 Water and Moisture - Hazard of electric shock - Do not use this product near water or
in rainy/moist situations.
21 Placing or Moving - Do not place on an unstable cart, stand, tripod,
bracket or table. The product may fall, causing serious injury to a child
or adult, and serious damage to the product.
A product and cart combination should be moved with care. Quick ~
stops, excessive force, and uneven surfaces may cause the product ....
and cart combination to overturn. =-'
22 Power Sources - The CA-570 Compact Power Adapter should be operated only from the
type of power source indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your product dealer or local power company.
Regarding other power sources such as battery power, refer to instructions in this
manual.
23 Polarization - The CA-570 Compact Power Adapter is equipped with a polarized 2-prong
plug (a plug having one blade wider than the other).
The 2-prong polarized plug will fit into the power outlet oniy one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your eiectrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
24 Power Cord Protection - Power cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them. Pay particular attention to
plugs and the point from which the cords exit the product.
25 Outdoor Antenna Grounding - If
an outside antenna is connected
to the product, be sure the
antenna is grounded so as to
provide some protection against
voltage surges and built-up static
charges. Section 810 of the
National Eiectrical Code, ANSI /
NFPA No. 70-1984, provides
information with respect to proper
grounding of the mast and
supporting structure, grounding of
the lead-in wire to an antenna
discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See figure 1.
26 lightning - For added protection of this product during a lightning storm, or when it is
left unattended and unused for long periods of time, disconnect it from the wall outlet and
