I. IMAGE FORMATION
A. Outline

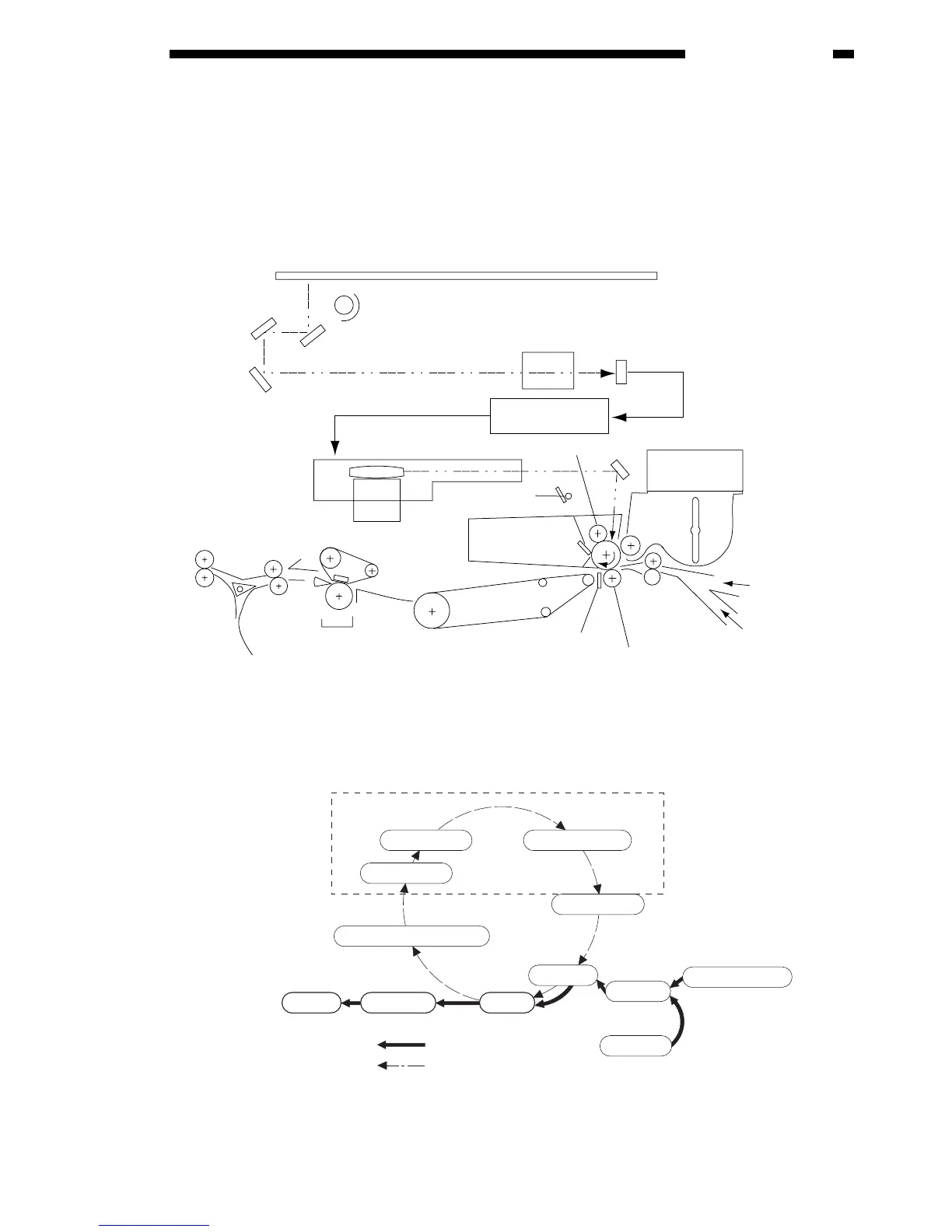

The GP215/GP200 uses an indirect photographic method of reproduction and is constructed as shown
in Figure 2-101.
Figure 2-101
Figure 2-102
Latent image formation block
1.Pre-exposure
2.Primary charging
3.Laser exposure
4.Development
5.Transfer
6.Separation
7.Fixing
8.Drum cleaning
Registration
Multifeeder
Cassette
Delivery
Flow of copy paper
Rotation of drum
Copyboard glass
Scanning lamp
Lens
Image processing
assembly
CCD
Laser scanner assembly
Pre-exposure
lamp
Primary charging
roller
Developing
assembly
Drum unit
assembly
Fixing assembly
Static eliminator
Transfer
charging roller
Copy paper
Copy paper
