4.2 Drive System
4.2.1 Delivery Motor 2
4.2.1.1 Removing the
Inside Delivery Tray,
Reversal Guide, and
Inside Upper Cover
0007-6151
Refer to procedure 4.1.1.1
4.2.1.2 Removing the
Right Cover (rear)
0007-6170
Refer to procedure 4.1.1.2
4.2.1.3 Removing the
Right Door
0007-9322
Refer to procedure 4.1.1.3
4.2.1.4 Removing the
Extension Delivery
Kit
0007-6156
Refer to procedure 4.1.1.4
4.2.1.5 Removing the
No. 2 Delivery Motor
0007-6154

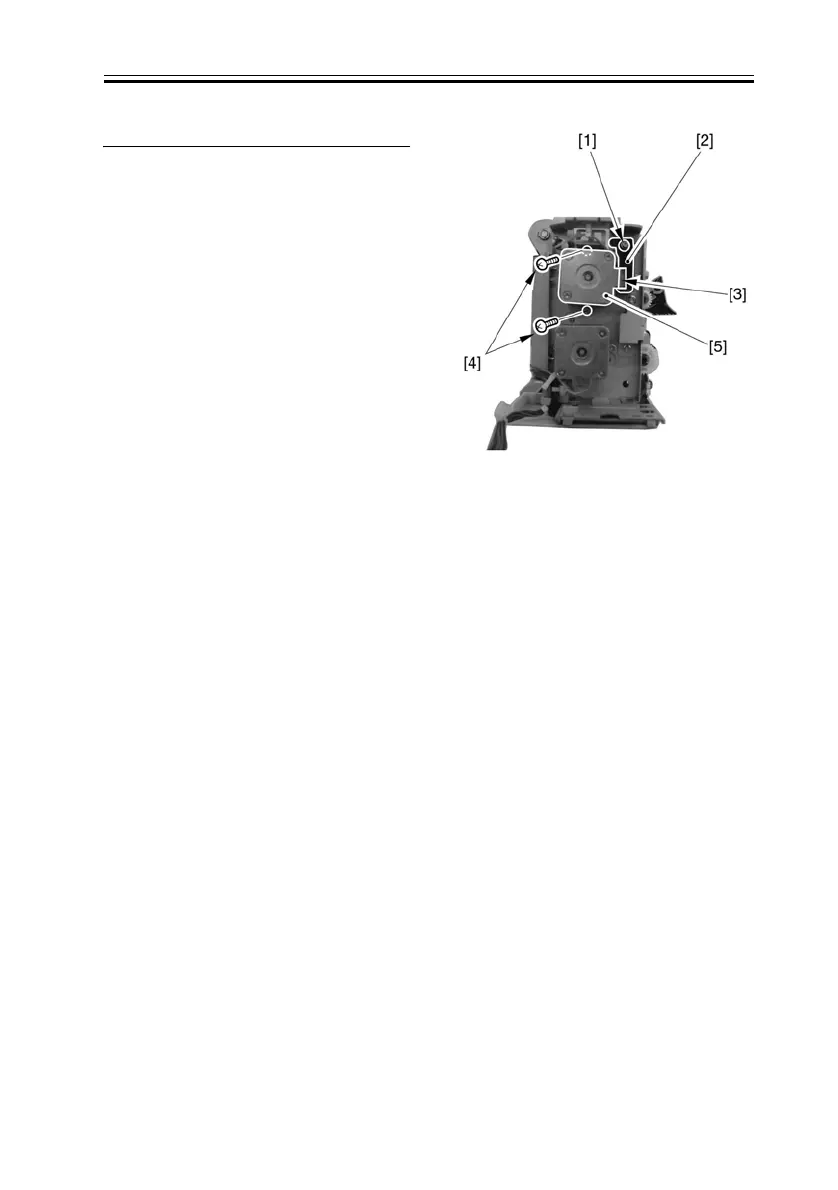

1) Remove the screw [1], and detach the
cover [2].
2) Disconnect the connector [3], and
remove the 2 screws [4]; then, detach the
No. 2 delivery motor [5].
F-4-12

Canon imageRUNNER 2270 Specifications

General

Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Duplexing	Yes
Multiple Copies	1 to 999
Reduction/Enlargement	25% - 400%
Connectivity	USB 2.0, Ethernet
Operating System Compatibility	Windows, Mac
