Symptom
010A/010B/010D/010E/0117/0118 Jam Code due to the contamination on the paper sensor
(scanner sensor)
[ Inspected by Canon Inc. ]
Description
There were cases when any of 010A/010B/010D/010E/0117/0118 Jams occurred.
010A : Cassette 3 Pickup Sensor Delay Jam
010B : Vertical Path Sensor 3 Delay Jam
010D : Cassette 4 Pickup Sensor Delay Jam
010E : Vertical Path Sensor 4 Delay Jam
0117 : Deck Feed Sensor Delay Jam
0118 : Deck Pickup Sensor Delay Jam
Cause
The paper sensor (scanner sensor) used to control paper feed was contaminated with paper dust. This
resulted in false detection, causing jam.
Field Remedy
Upon indication of each jam, clean the scanner sensor following the steps below.
A. Cleaning steps for 010A/010B Jam

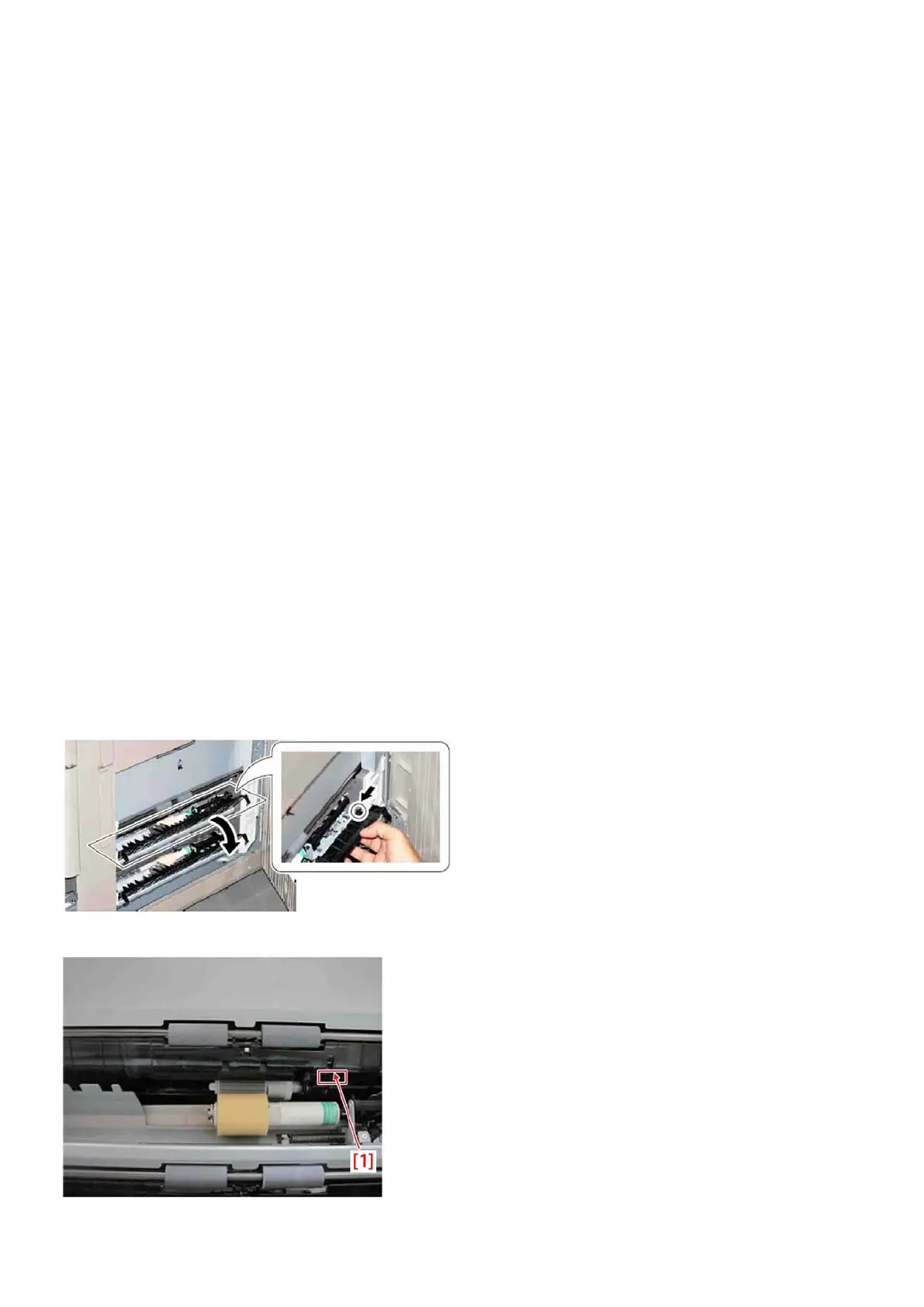

1) Open the Right Lower Cover.
2) Remove the Feed Guide.
- 1 Boss
3) Clean paper dust on the Cassette 3 Pickup Sensor (PS21)[1] with a blower.
