Symptom
0101/0106/010A/010D Jam Code due to the contamination on the paper sensor (scanner sensor)
on iR-ADV 8105 series only
[Inspected by Canon Inc. ]
Description
There were cases when any of 0101/0106/010A/010D Jams occurred.
0101 : Right Deck Pickup Sensor 1 Delay Jam
0106 : Left Deck Pickup Sensor 1 Delay Jam
010A : Cassette 3 Pickup Sensor Delay Jam
010D : Cassette 4 Pickup Sensor Delay Jam
Cause
The paper sensor (scanner sensor) used to control paper feed was contaminated with paper dust. This
resulted in false detection, causing jam.
Field Remedy
Upon indication of each jam, clean the scanner sensor following the steps below.
A. Cleaning steps for 0101 Jam

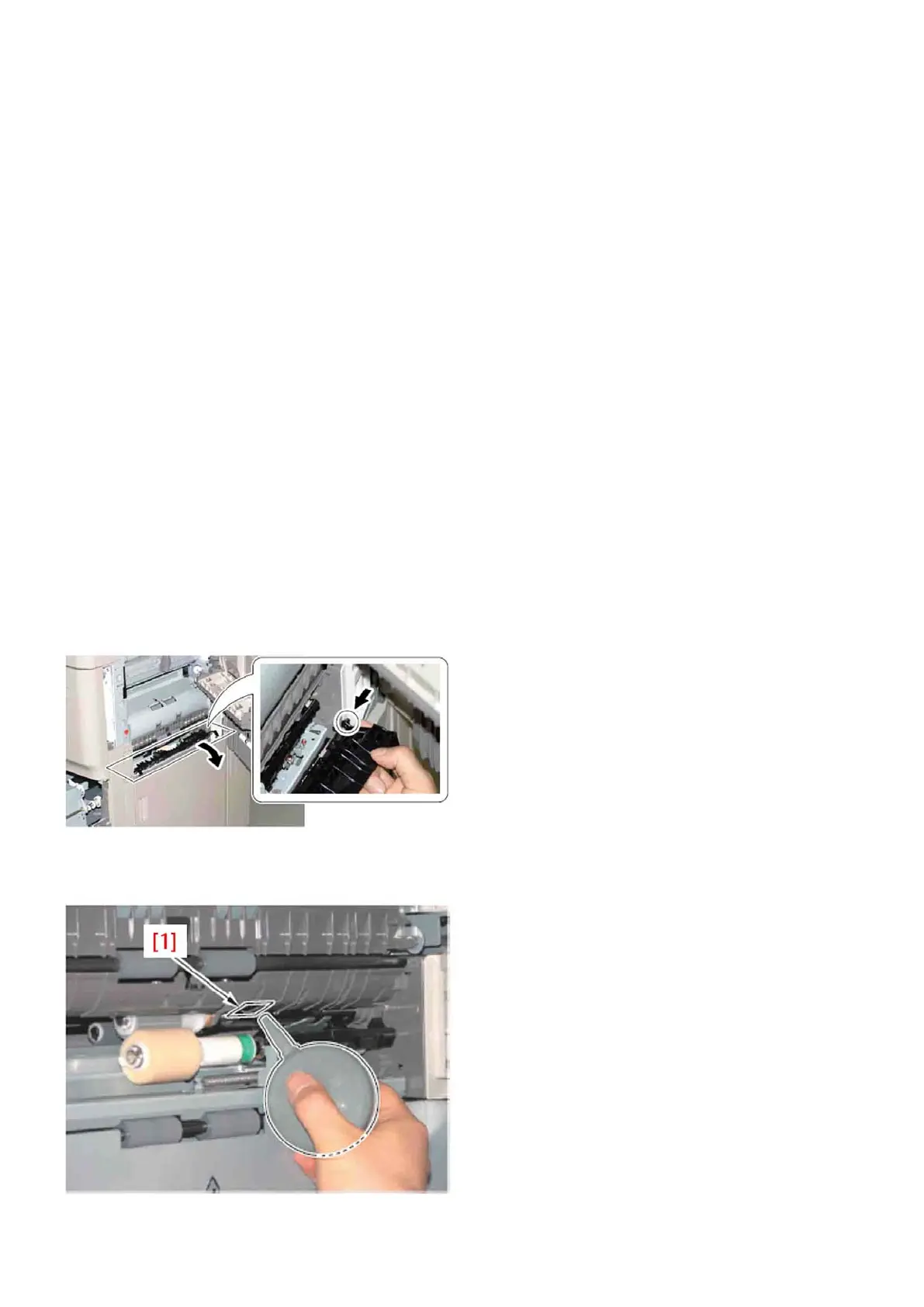

1) Open the Right Upper Cover.
2) Remove the Feed Guide.
-1 Boss
3) Clean paper dust on the Right Deck Pickup Sensor 1(PS19)[1] with a blower.
