Chapter 4
4-5

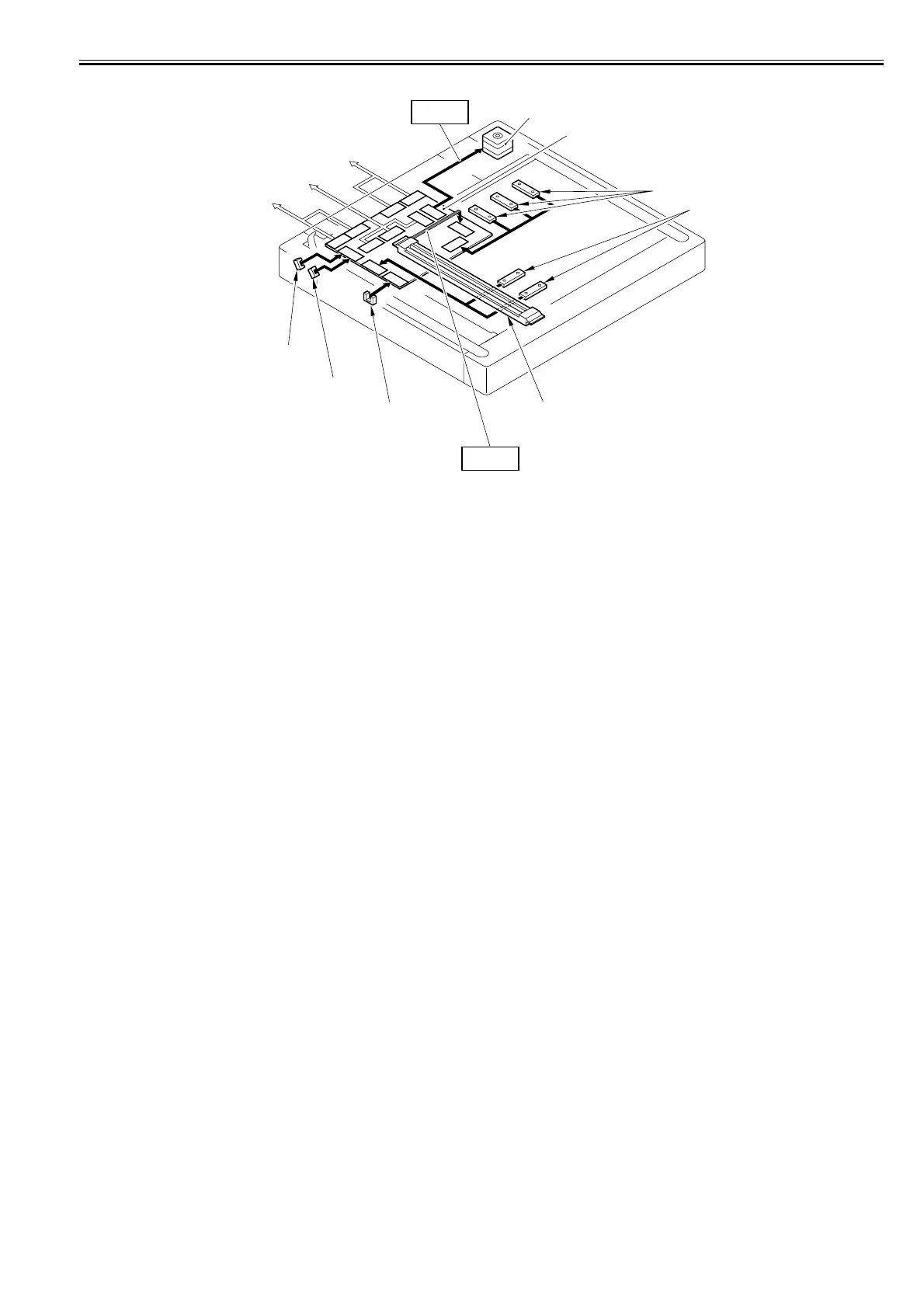

The control system configuration of the original exposure system is shown below.
F-4-3
[1] Printer main body (Connected to the image processor PCB)
[2] Connected to ADF
[3] Connected to the power supply PCB
[4] Reader motor drive control
[5] Reader motor (M401)
[6] Reader controller PCB
[7] Original sensor (horizontal scan direction)
[8] Original sensor (vertical scan direction)
[9] Contact image sensor
[10] Image signal
[11] CISHP sensor (PS503)
[12] Copyboard cover open/close sensor (Front: SR403)
[13] Copyboard cover open/close sensor (Front: SR402)
4.1.6 Control System Configuration (When the original size detection sensor is not equipped for BOOK mode)
0020-4224
J404
J403
J412
J411
J407
J401
J402
J408
J409
J410
J405
J413
J406
[5]
[13]
[12]
[11]
[7]
[8]
[2]
[1]
[3]
[10]
[4]
[6]
[9]

Canon iR2318 series Specifications

General

Print Speed	18 ppm (A4)
Print Resolution	600 x 600 dpi
Copy Speed	18 cpm (A4)
Copy Resolution	600 x 600 dpi
Paper Output	100 sheets
Duplex Printing	Manual
Functions	Print, Copy, Scan
Multiple Copy	Up to 99 copies
Scan Resolution	600 x 600 dpi
Scan to	USB
Paper Input (Standard)	250 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive, Envelopes (COM10, DL)
Interface	USB 2.0
Warm-up Time	13 seconds or less
First Print Out Time	7.9 seconds
Fax Transmission Speed	(Optional) Super G3 33.6kbps
