Canon iR2318 series User Manual

Chapter 9
9-18

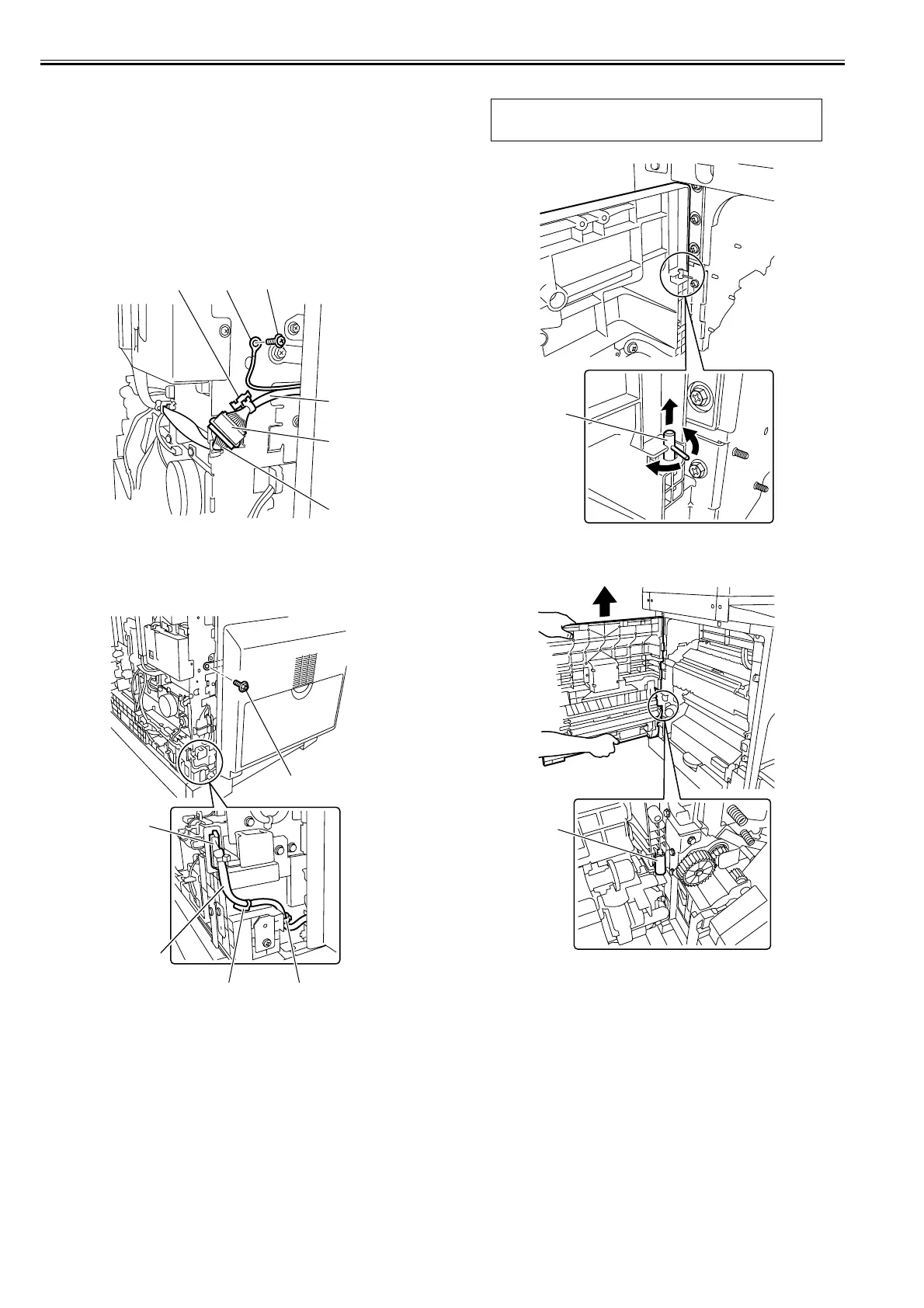

9.4.11.2 Removing the Left Door (With Duplex Unit Type)
0020-4489
1) Draw out the drum unit.
2) Remove the rear cover.
3) Remove the left cover (rear).
4) Disconnect the relay harness [2] from the connector [1] of the duplex unit
harness.
5) Disconnect the ground cable [3].
- Screw [4] 1 pc.
6) Remove the reusable band [5] from the duplex unit harness at the rear-left
of the main body, and then return the duplex unit harness [6] to the left
door side.
F-9-54
7) Release the duplex unit harness [1].
- Screw [2] 1 pc.
- Connector [3] 1 pc.
- Reusable band [4] 1 pc.
- Wire saddle [5] 1 pc.
F-9-55
8) Open the left door until it sops and pull out the hinge shaft [1].
F-9-56
9) Lift the left door with both hands to release it from the door rotation shaft
[1], and then remove the left door.
F-9-57
[3] [4]
[6]
[1]
[2]
[5]
[2]
[3]
[4] [5]
[1]
MEMO:
When a duplex unit is installed, remove it before pulling out the hinge shaft
for each access.
[1]
[1]

Canon iR2318 series Specifications

General

Print Speed	18 ppm (A4)
Print Resolution	600 x 600 dpi
Copy Speed	18 cpm (A4)
Copy Resolution	600 x 600 dpi
Paper Output	100 sheets
Duplex Printing	Manual
Functions	Print, Copy, Scan
Multiple Copy	Up to 99 copies
Scan Resolution	600 x 600 dpi
Scan to	USB
Paper Input (Standard)	250 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive, Envelopes (COM10, DL)
Interface	USB 2.0
Warm-up Time	13 seconds or less
First Print Out Time	7.9 seconds
Fax Transmission Speed	(Optional) Super G3 33.6kbps
