Canon iR2318 series User Manual

Chapter 1
1-7

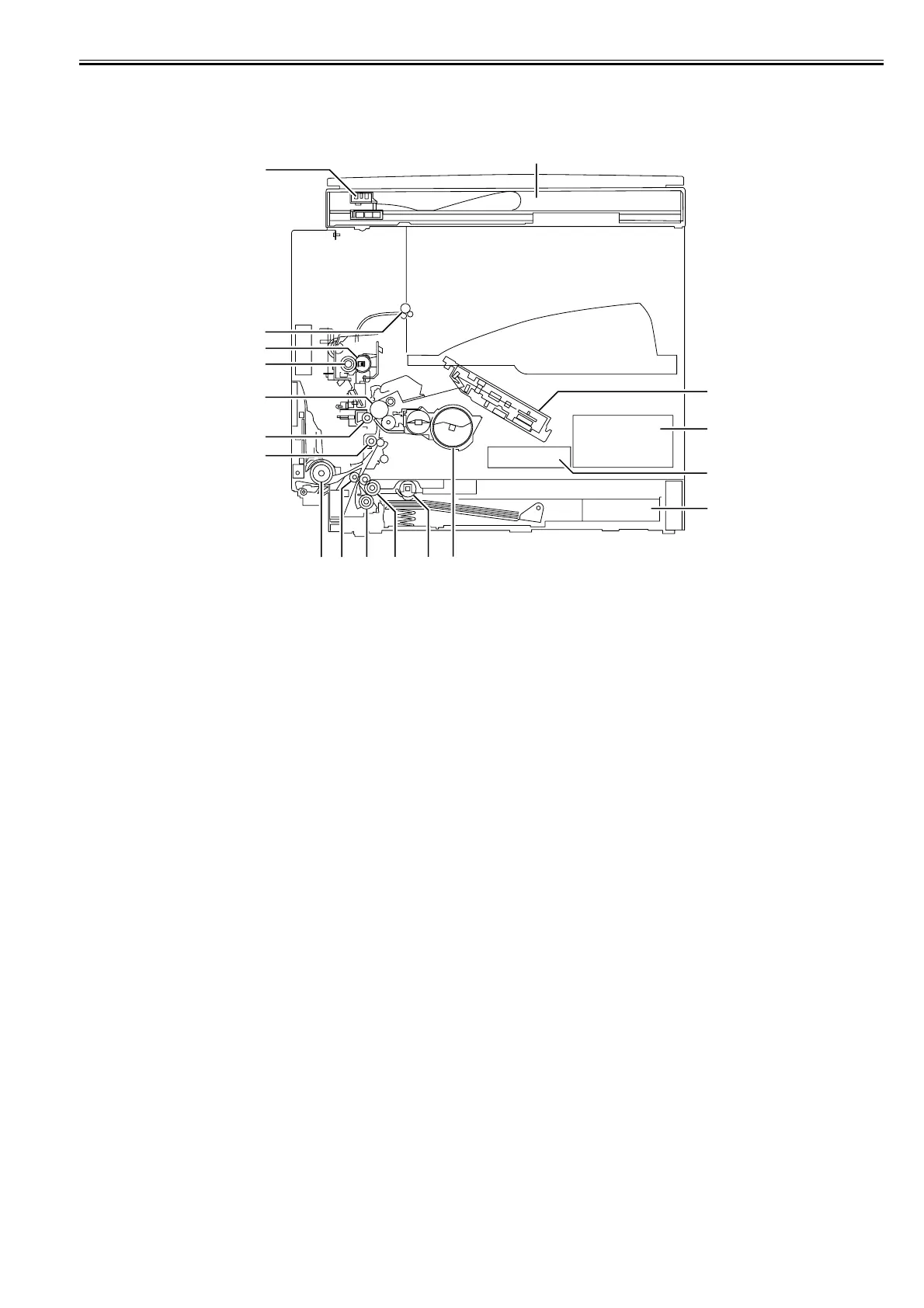

1.2.1.3 Cross-Section
0020-4191
F-1-8
[1] CIS unit [10] Separation roller
[2] Reader unit [11] Vertical path roller
[3] Laser scanner unit [12]
Manual feed pickup roller
[4] DC power supply PCB [13]
Registration roller
[5] HVT PCB [14]
Transfer roller
[6] Cassette [15]
Drum unit
[7] Toner bottle [16]
Pressure roller
[8] Pickup roller [17]
Fixing film unit
[9] Feed roller [18]
Delivery roller
[1]
[2]
[3]
[4]
[5]
[6]
[18]
[16]
[15]
[14]
[13]
[12] [11] [10] [9] [8] [7]
[17]

Canon iR2318 series Specifications

General

Print Speed	18 ppm (A4)
Print Resolution	600 x 600 dpi
Copy Speed	18 cpm (A4)
Copy Resolution	600 x 600 dpi
Paper Output	100 sheets
Duplex Printing	Manual
Functions	Print, Copy, Scan
Multiple Copy	Up to 99 copies
Scan Resolution	600 x 600 dpi
Scan to	USB
Paper Input (Standard)	250 sheets
Paper Sizes	A4, A5, B5, Legal, Letter, Executive, Envelopes (COM10, DL)
Interface	USB 2.0
Warm-up Time	13 seconds or less
First Print Out Time	7.9 seconds
Fax Transmission Speed	(Optional) Super G3 33.6kbps
