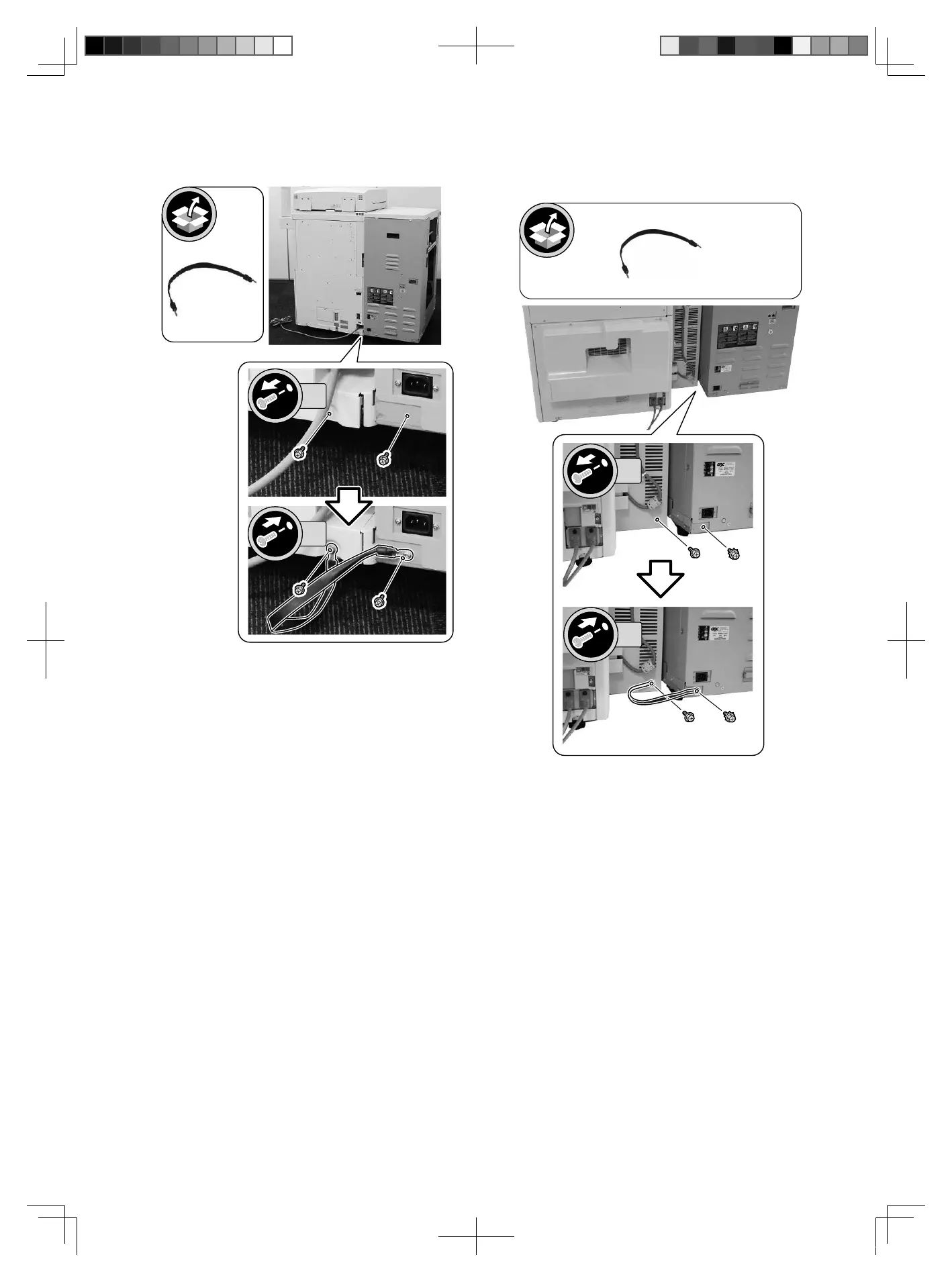

< iR-ADV 8505/8595/8585 Series >
• Remove the
screws from the host machine and this
equipment, and connect the Shunt Cable.
2x
2x
< iR-ADV C7580/7570/7565 Series_imagePRESS
C850/750/650 Series >
• Remove the
screws from the Buffer Pass Unit and
the host machine, and connect the Shunt Cable.
2x
2x
1. Installation
