(3) Printer unit removal, and ink absorber replacement

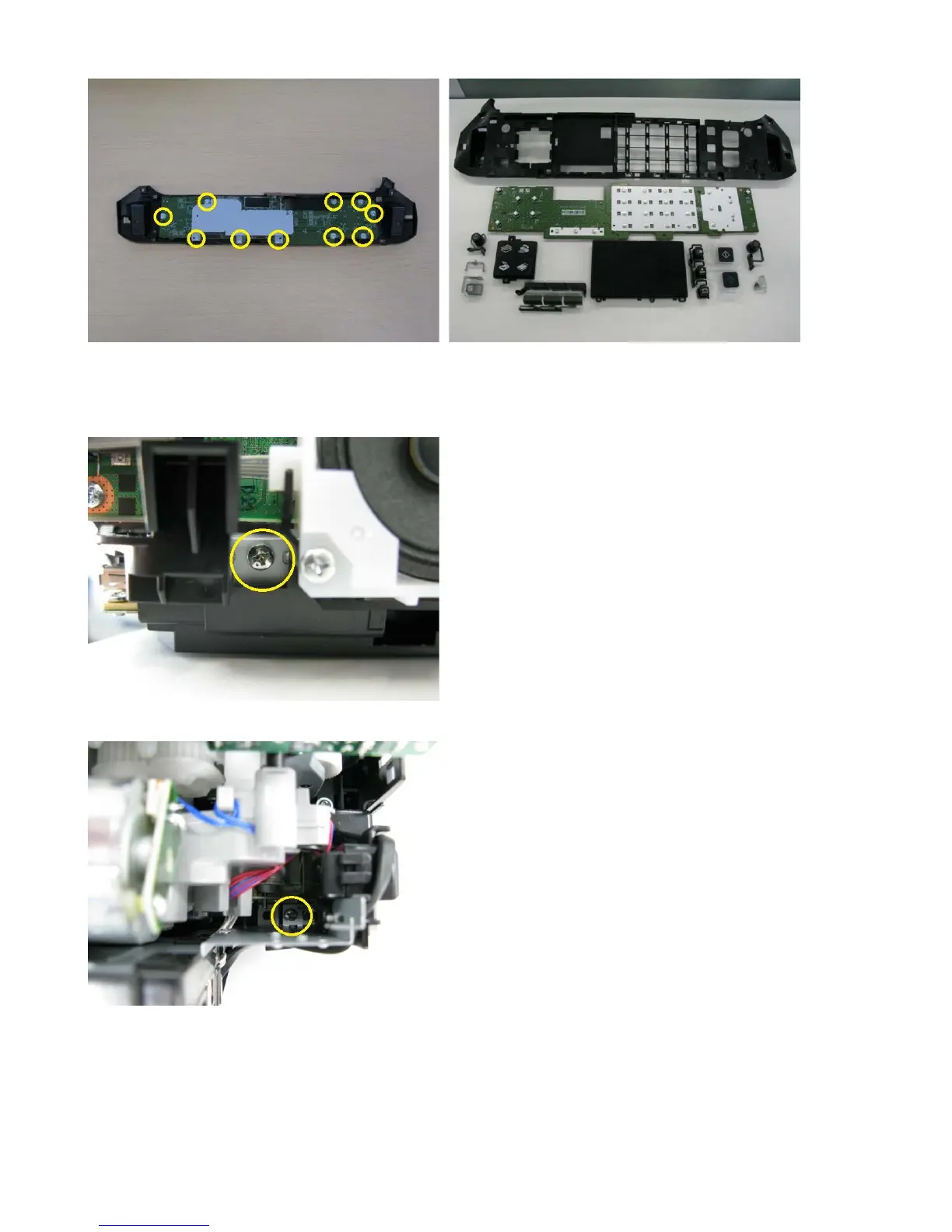

5) Remove the panel board (10 screws).
1) Separate the PictBridge chassis from the main PCB chassis. (1 screw)
2) Separate the main PCB chassis from the bottom case. (1 screw)
32 / 76
