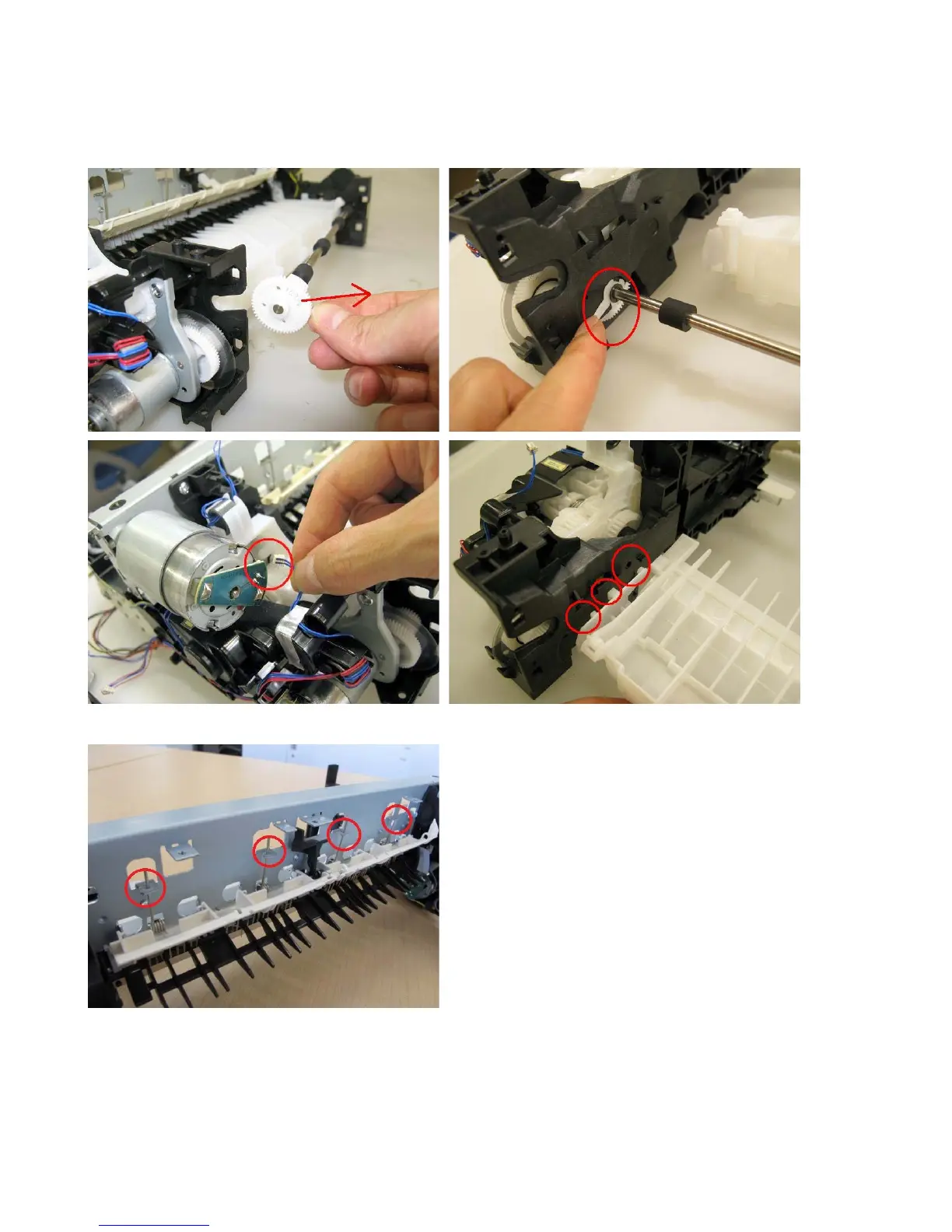

(9) Purge drive system unit (right plate) and switch system unit (left plate) removal
1) Remove the carriage motor cable, duplex printing paper feed roller, cassette feed roller, cassette
feed guide, paper guide unit, and springs of the paper guide unit (both sides). (See the Parts
Catalog for details.)
2) Remove the pressure roller springs (4 springs).
