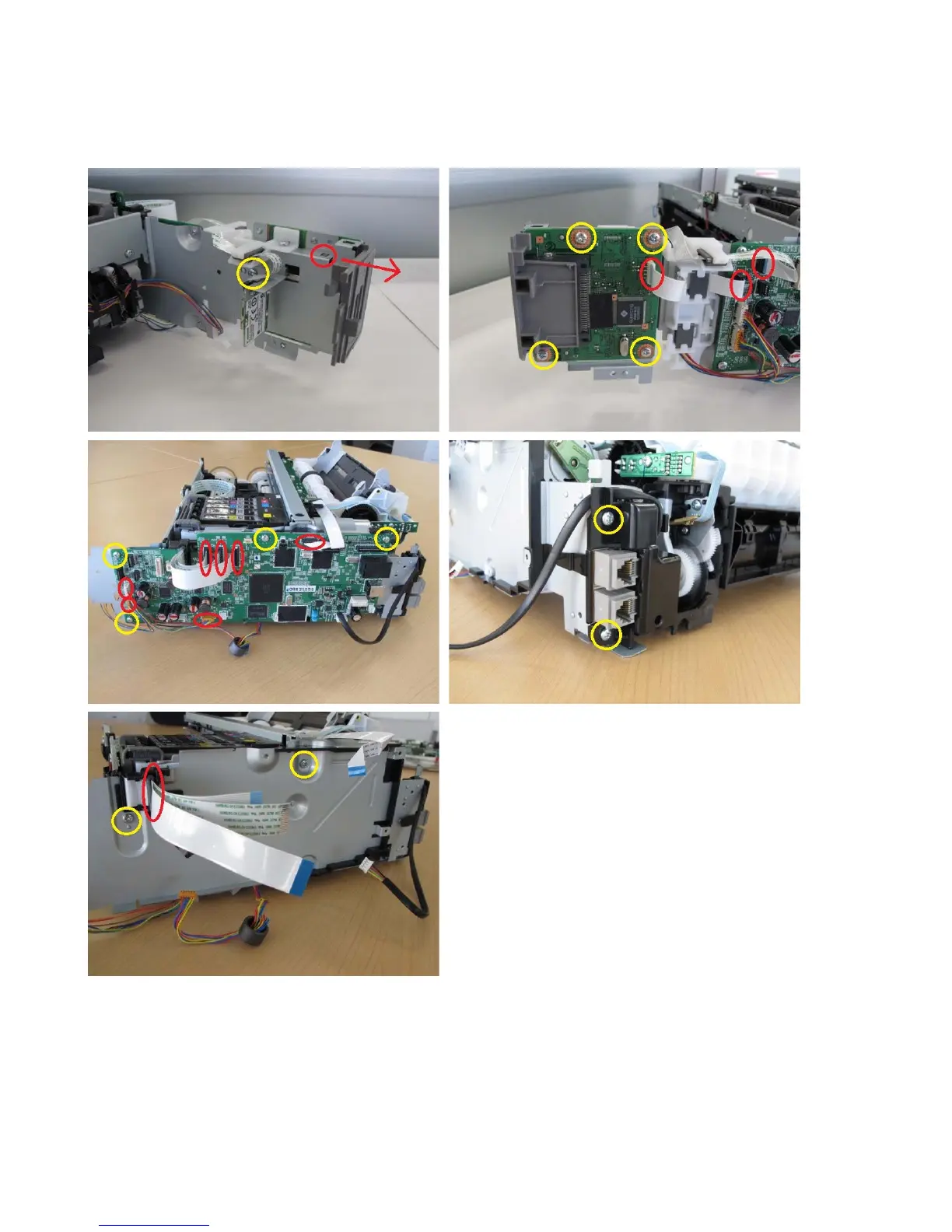

(4) Board removal
1) Remove the WLAN board, card board, main PCB, modular board, and main PCB chassis. (13
screws)
<The core fits to the rib of the harness guide.>
36 / 76
