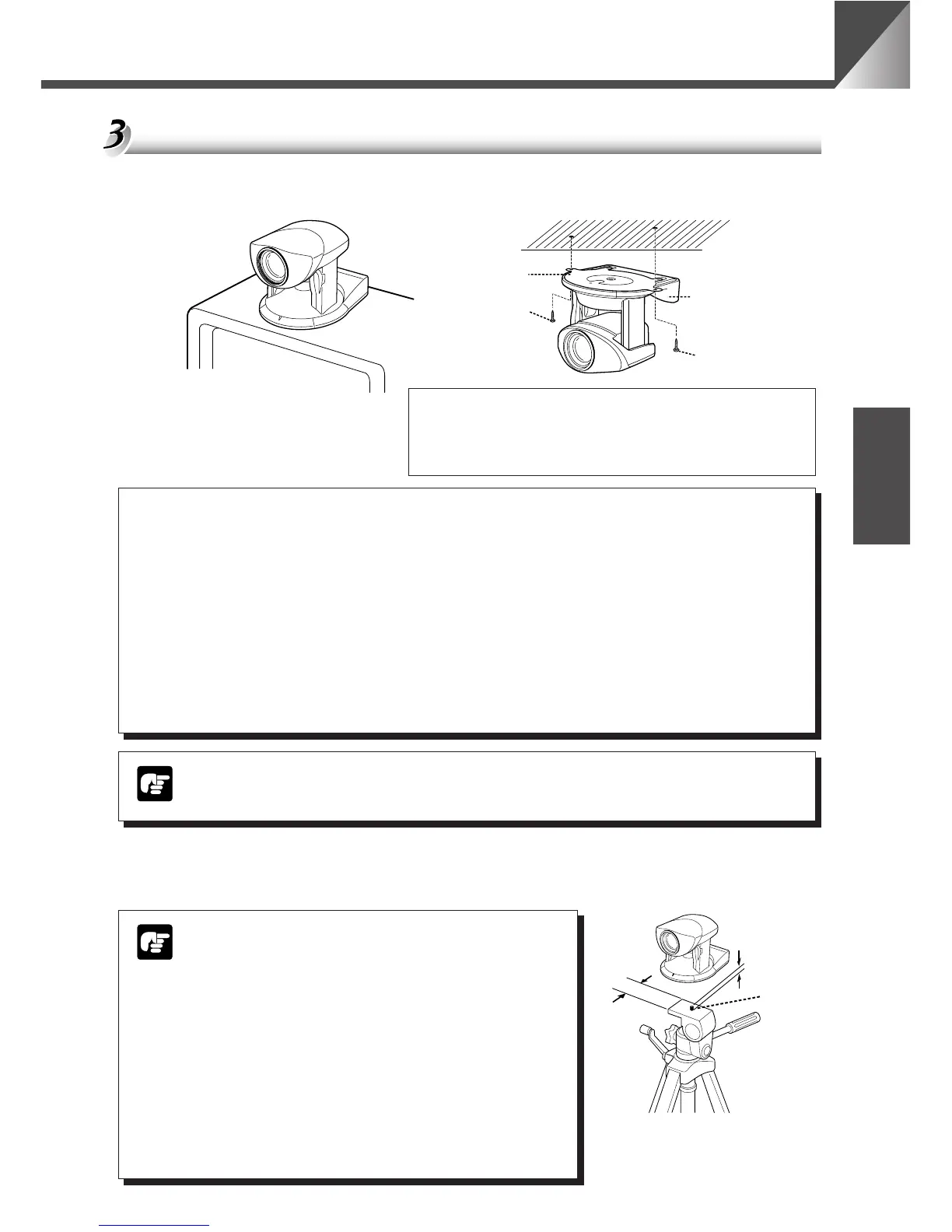

Installing the Product
(Installation)
• Distance between tapped holes: 114 mm (4.49 in.)
• Tapped hole diameter: 6 mm (0.24 in.)
• Mounting plate thickness: 1 mm (0.04 in.)
Install the camera securely.
● When installing the camera on the ceiling, contact your Canon dealer.
● When installing the camera on the ceiling, check that the ceiling is strong enough to
bear the weight of the camera including the installation bracket. Installation in a
weak location could result in the camera falling and causing serious injury.
● At least once a year, check for looseness in the camera installation mount. (If the
optional wide-angle converter is used, check the converter mount also.)
* The Wide-angle Converter WL-37 cannot be used on the VC-C50iR.
a
WARNING
Using a Tripod
The screw mount for a tripod is located in the center of the underside of the camera.
The permissible camera installation angles are ±20° from the horizontal. (±15°
when the optional wide-angle converter is used.)
NOTE
Less than
6.0 mm
(0.24 in.)
Mounting
screw
30 mm
(1.18 in.)
or wider
● Do not overtighten the mounting screw.
If excessive force is used to tighten the
mounting screw, camera head movement
may be impeded, or other malfunctions may
result.
● Always use a tripod mounting screw that is
less than 6.0 mm (0.24 in.) in length. The use
of screws 6.0 mm (0.24 in.) long or longer
could damage the camera. Also, the tripod
seat used should be at least 30 mm (1.18 in.)
in diameter.
NOTE
Mounting plate
Screw
VC-C50iR
Screw
VC-C50i Installation
Install in a flat and stable location.
VC-C50iR Installation
Firmly tighten the 2 screws (not supplied).
To Next Page
