PRODUCT NO. 088-1759-2
ASSEM BLY

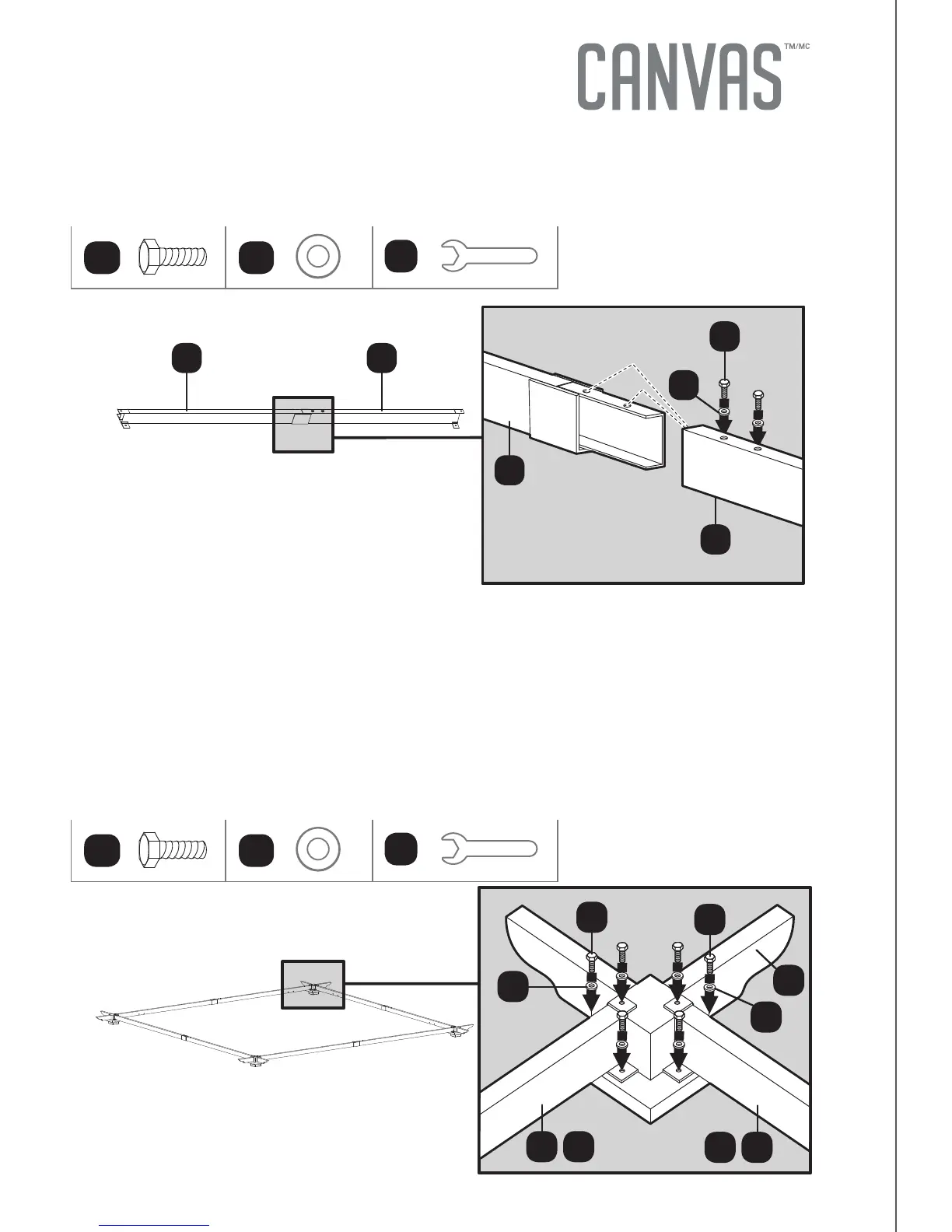

Step 3
Requires B3, B4, AA, BB, W
Insert Beam 3s (B3) into Beam 4s (B4), then attach using M6x15 bolts (AA) and
M6 washers (BB). Tighten the bolts using the wrench (W).
Step 4
Requires B1, B2, B3, B4, C, AA, BB, W
Attach the assembled beams (B1, B2), (B3, B4) in sequence of B1B2, B3B4,
B1B2, B3B4 to the Corner connectors (C) using M6x15 bolts (AA) and M6
washers (BB). Tighten the bolts using the wrench (W).
B3
B3
B4
B4
BB
AA
B1 B2
B3 B4
AA
AA
C
BB
BB
NOTE:
While assembling (B1, B2), (B3, B4) to (C), make sure to assemble in such a way that the
thread holes of (B1, B2), (B3, B4) face inner side in order to assemble Arch supports (I1, I2).
BB
BB
W
W
AA
AA
