10 11
PRODUCT NO. 088-1760-6
ASS E MBLY
AA
H1
AA
BB
BB
D1 D2
E3
I
D1 D2
AA
BB

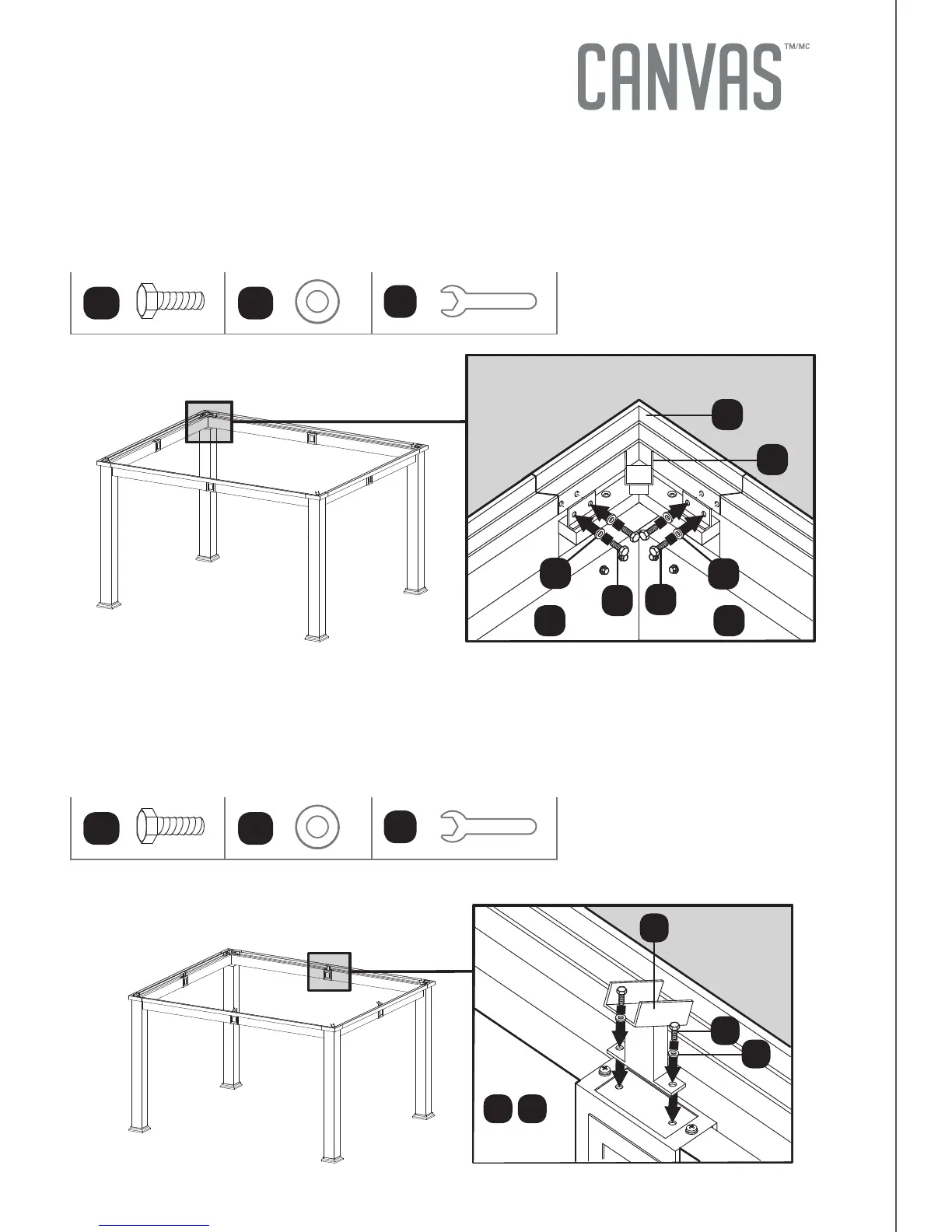

Step 6
Requires E3, H1, AA, BB, Z
Align the holes of the assembled Decorative grooves (E3) with the holes of the
Lower beam connector 1s (H1). Attach the Decorative groove (E3) in all four
corners to the Lower beam connector 1s (H1) using M6x15 bolts (AA) and M6
washers (BB). Tighten the bolts using the wrench (Z).
BB
BB
Z
Z
AA
AA
Step 7
Requires D1, D2, I, AA, BB, Z
Attach the Lower middle beam connectors (I) to beams (D1, D2) using M6x15
bolts (AA) and M6 washers (BB). Tighten the bolts using the wrench (Z).
