Component Names and Locations

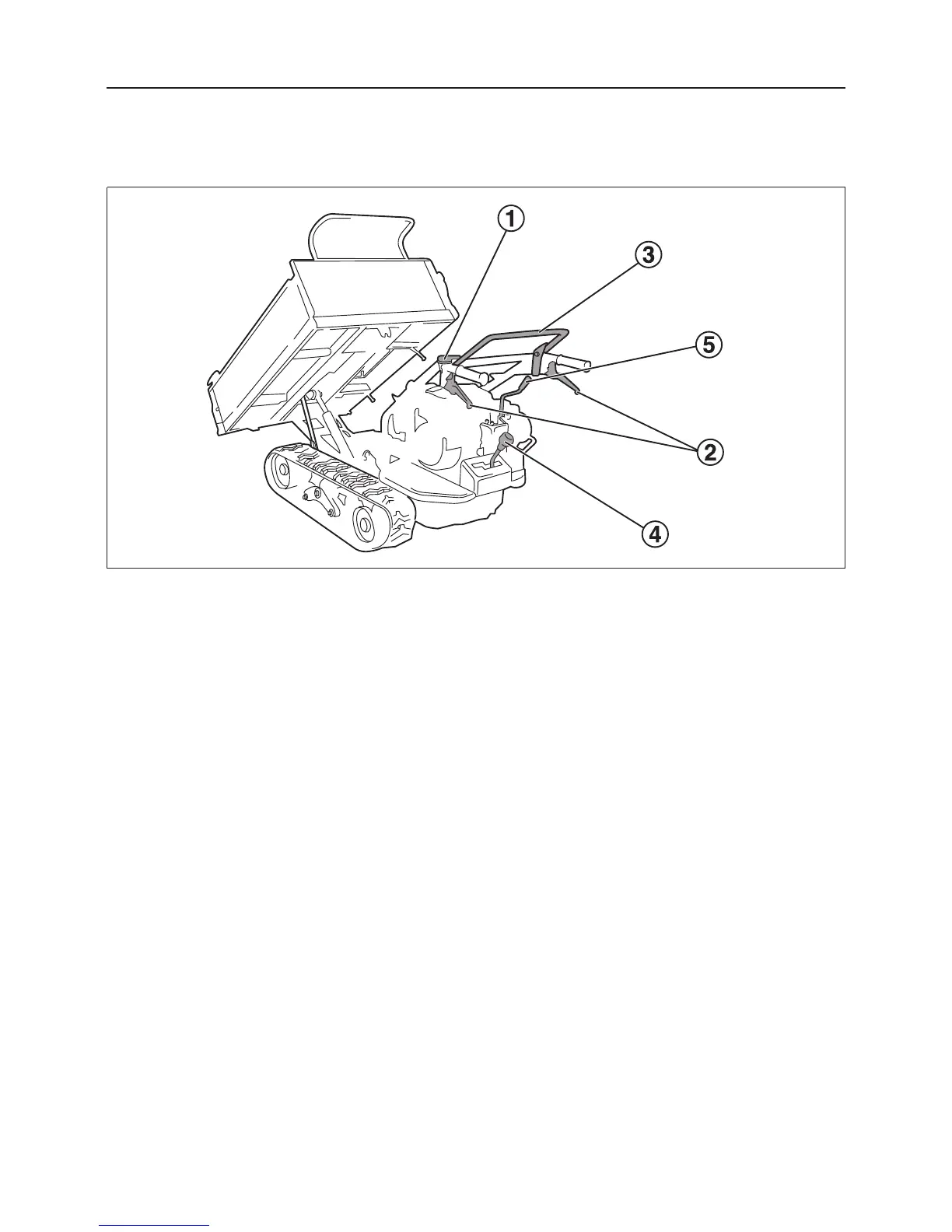

Locations
Component Names
① Throttle lever .......................This is used to increase or decrease the speed of the engine.
② Side clutch lever ...................This is used when changing the running direction. The vehicle
is turned to the side on which the clutch lever is grasped by
hand. When the right and left levers are grasped at the same
time, the vehicle is stopped immediately.
③ Clutch lever ........................This is used to interrupt the transmission of power from the
engine to the transmission. When the lever is lowered, the
operation mode becomes "RUN" (travel). When the lever is
raised, the operation mode becomes "STOP" (stop). The lever
is interlocked with the brake. When the lever is at the "STOP"
position, the brake is applied.
④ Gear shift lever .....................This is used to select the running speed. Before operating this
lever, move the clutch lever to the " STOP" position (upper
side) to stop the vehicle.
⑤ Hydrauliclever .....................This is used to raise or lower the deck.
