Instruction manual BXi911 11
Please keep this instruction manual for future reference
INSTALLATION – DUCTED
WARNING:
Observe the warning concerning the operation of the appliance when air is discharged from
the room.

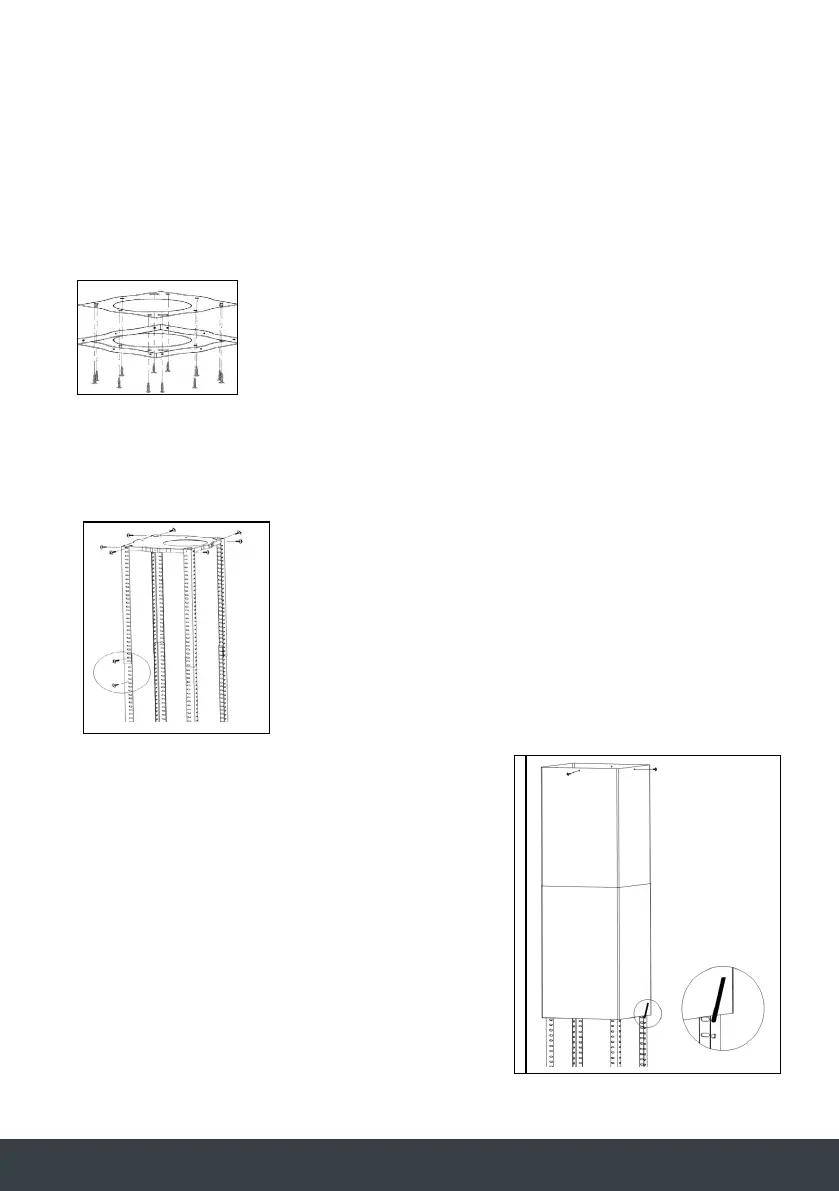

1. Position the hanging plate on the ceiling and then mark the position of the screw holes. The
hanging plate should be securely fixed to the ceiling.
11 x ST6 (40mm) screws for wooden ceiling
8 x expansion bolts for cement ceiling
2. Fix the angle bars to the hanging plate, using the 8 x M5 screws.
3. Extend the angle bars to the required height and then fix them in position using the 16 x M5
screws and nuts with metal washers.
IMPORTANT:
The angle bars must have an overlap of at least 100mm.
4. If your cooker hood is going to be externally ventilated,
then you should connect the ducting hose to the ceiling
adaptor at this point. Fix the upper chimney section to the
hanging plate, using the 4 x self tapping screws.
Slide the lower chimney section onto the angle bars and
raise it until it sits just below the upper chimney section.
5
.
5
.
6
4) If your cooker hood is going to be externally ventilated, then you should
connect the ducting hose to the ceiling adaptor at this point.
Fix the upper chimney section to the hanging plate, using the 4 x self tapping
screws.
