Instruction manual BXi911
12
Please keep this instruction manual for future reference

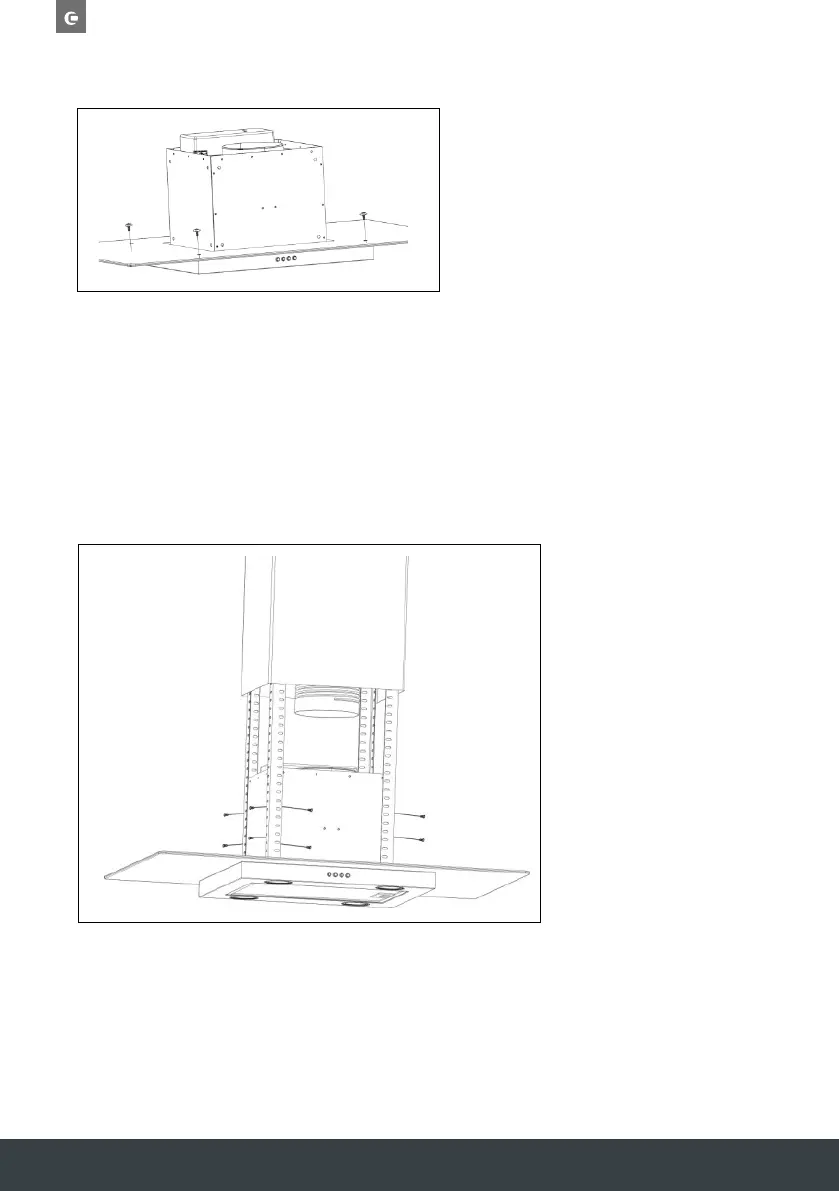

5. If the glass canopy has not been pre-assembled at the factory, then it should be fixed to the
top of the main body of the cooker hood at this stage.
6. Lift the main body of the cooker hood onto the angle bars and then fix it into position using
the 16 x M5 screws.
IMPORTANT:
This stage of the installation process MUST be completed by two people.
The 16 x M5 screws MUST be securely tightened.
7. If you are using the hood in ducted / ventilation mode, you should fix
the ducting hose to the ceiling.
6
4) If your cooker hood is going to be externally ventilated, then you should
connect the ducting hose to the ceiling adaptor at this point.
Fix the upper chimney section to the hanging plate, using the 4 x self tapping
screws.
7
7) If you are using the hood in ducted / ventilation mode, you should fix
the ducting hose to the ceiling.
