Caple C2106 - Installation

Instruction manual C2105/C210612
Please keep this instruction manual for future reference
589mm
50mm
min 550mm
560mm
50mm
540mm
593mm
578mm
555mm
25mm
5mm
595mm
20mm
116mm
INSTALLATION
IMPORTANT:
ISOLATE YOUR OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING
INSTALLATION OR MAINTENANCE.
Installation should be carried out according to the instructions by a professionally qualied
person only.
The manufacturer declines all responsibility for any damage to persons, animals or materials due
to incorrect installation.

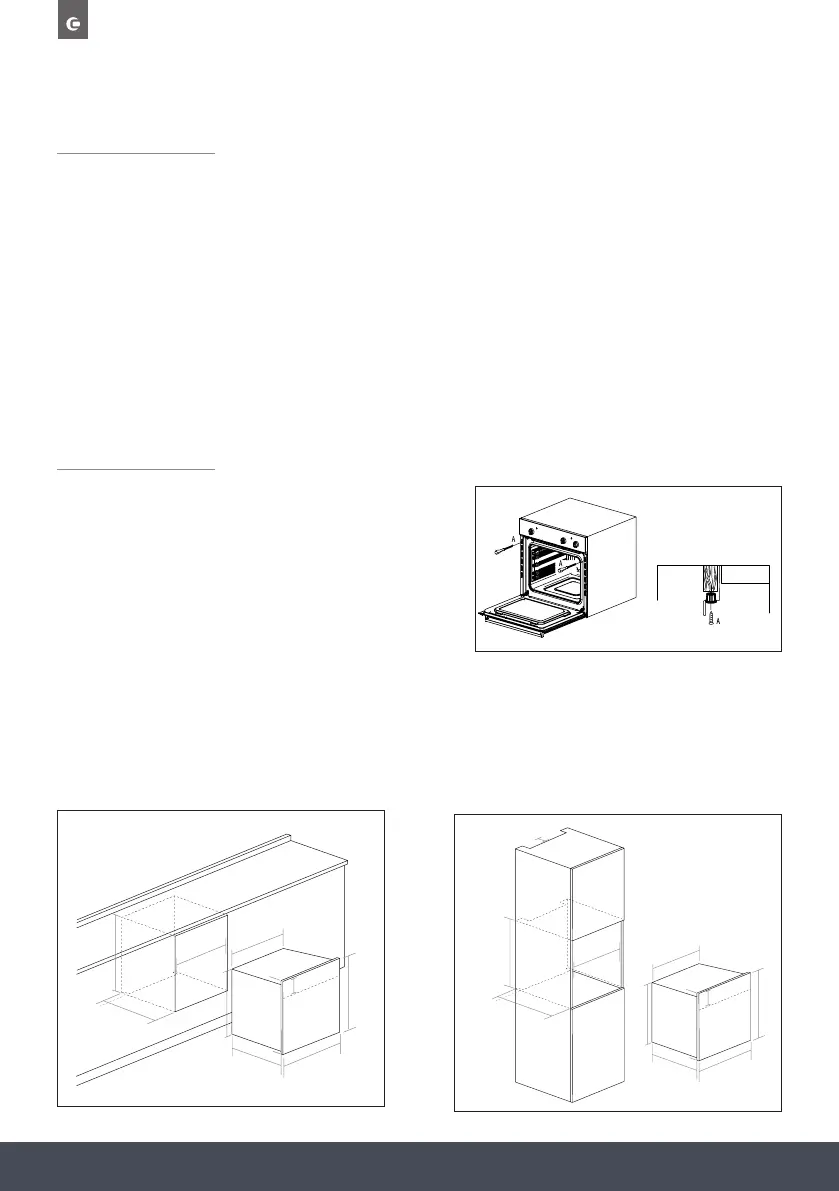

FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a worktop
or above another appliance in a tall housing) by
inserting screws and plastic covers into the 2 holes
(A - g.3) that can be seen in the frame of the oven
when the door is open.
For the most efcient air circulation, the oven should
be tted according to the dimensions shown in
g. 1 & 2.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which
the oven is tted should have a gap of at least 50mm at the rear for ventilation (g.4 & g.5).
540mm
593mm
578mm
589mm
min 550mm
560mm
555mm
25mm
5mm
595mm
50mm
20mm
116mm
INSTALLATION
Installation should be carried out according to the instructions by a
professionally qualified person only.
The manufacturer declines all responsibility for
any damage to persons, animals or materials due to incorrect installation.
Fit the appliance into its surround (beneath a worktop or above
another appliance) by inserting screws and plastic covers into the 2
holes (A - fig.3) that can be seen in the frame of the oven when the door
is open.
For the most efficient air circulation, the oven should be fitted
according to the dimensions shown in fig. 1 & 2.
The rear panel of the cabinet must be removed so that air can
circulate freely. The panel to which the oven is fitted should
have a gap of at least 70 mm at the rear for ventilation (fig.4 & fig.5).
See below for full dimensional drawings of your oven to help with
installation.
OTE al
manual supplied with
hob
Plastic cover
Fig.3
Oven dimensions
Fig.2
Fig.1
Fig. 1 Fig. 2
