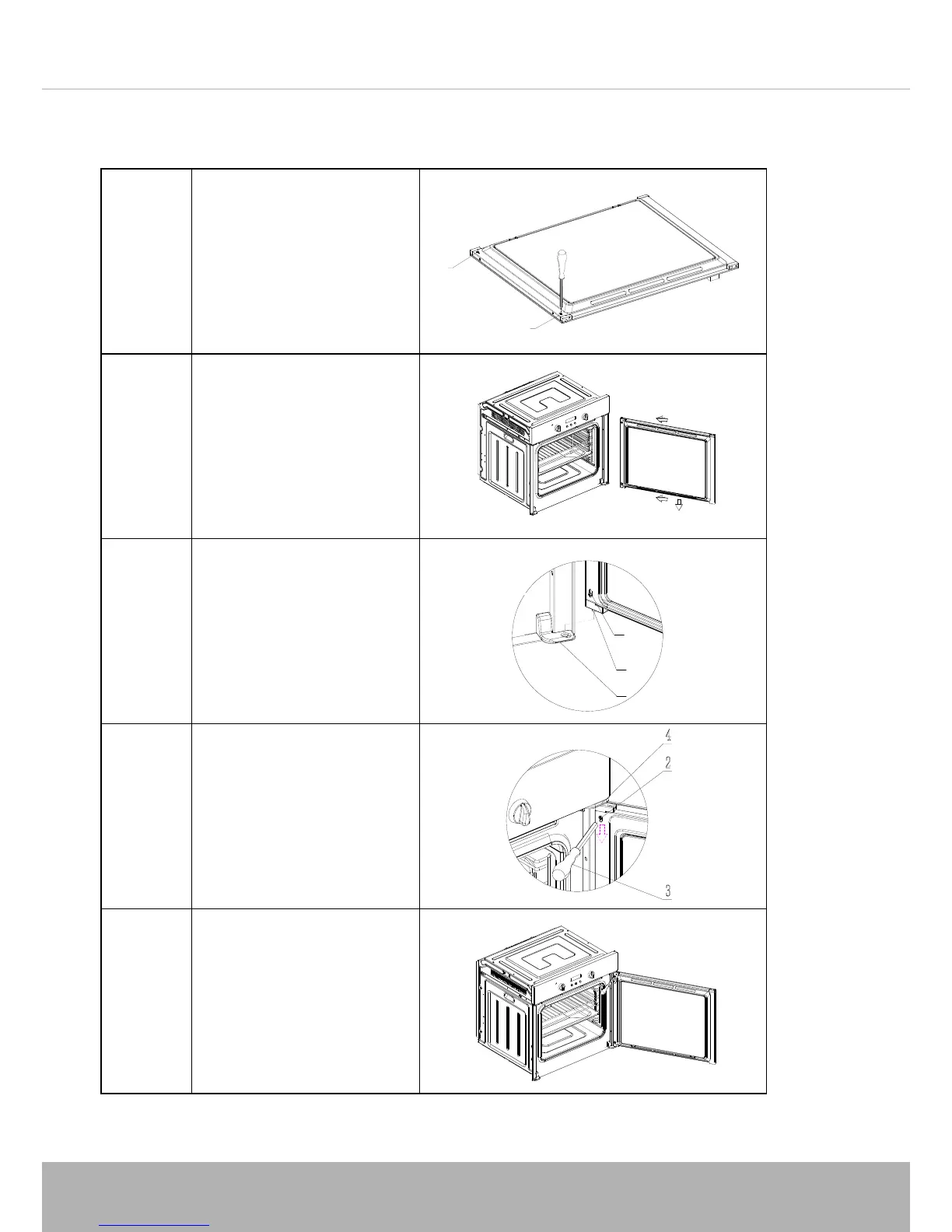

The door is now ready to
reverse and reattach to the
oven.
Once the door is reversed, screw
(1) will now be in the lower
position, and screw (2) in the
upper position.
7
Insert the lower fixing pin (5) into
the lower hinge support (6).
8
9
The door reversal is now
complete.
2
1
1
5
6
Push screw (1) back up the
elongated hole to raise the
fixing pin, and tighten the screw
to secure it into place. Unscrew
screw (2) and move it down the
elongated hole to lower the
fixing pin.
Align the upper fixing pin with
the upper hinge support (4), and
then move the screw (2) up the
elongated hole to raise the
fixing pin into the hinge support.
Now tighten the screw (2) to
secure this into position.
