Caple C2231 User Manual

11Please keep this instruction manual for future reference Instruction manual C2231
INSTALLATION
IMPORTANT:
ISOLATE YOUR OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING INSTALLATION OR
MAINTENANCE.
Installation should be carried out according to the instructions by a professionally qualified
person only.
The manufacturer declines all responsibility for any damage to persons, animals or materials due
to incorrect installation.

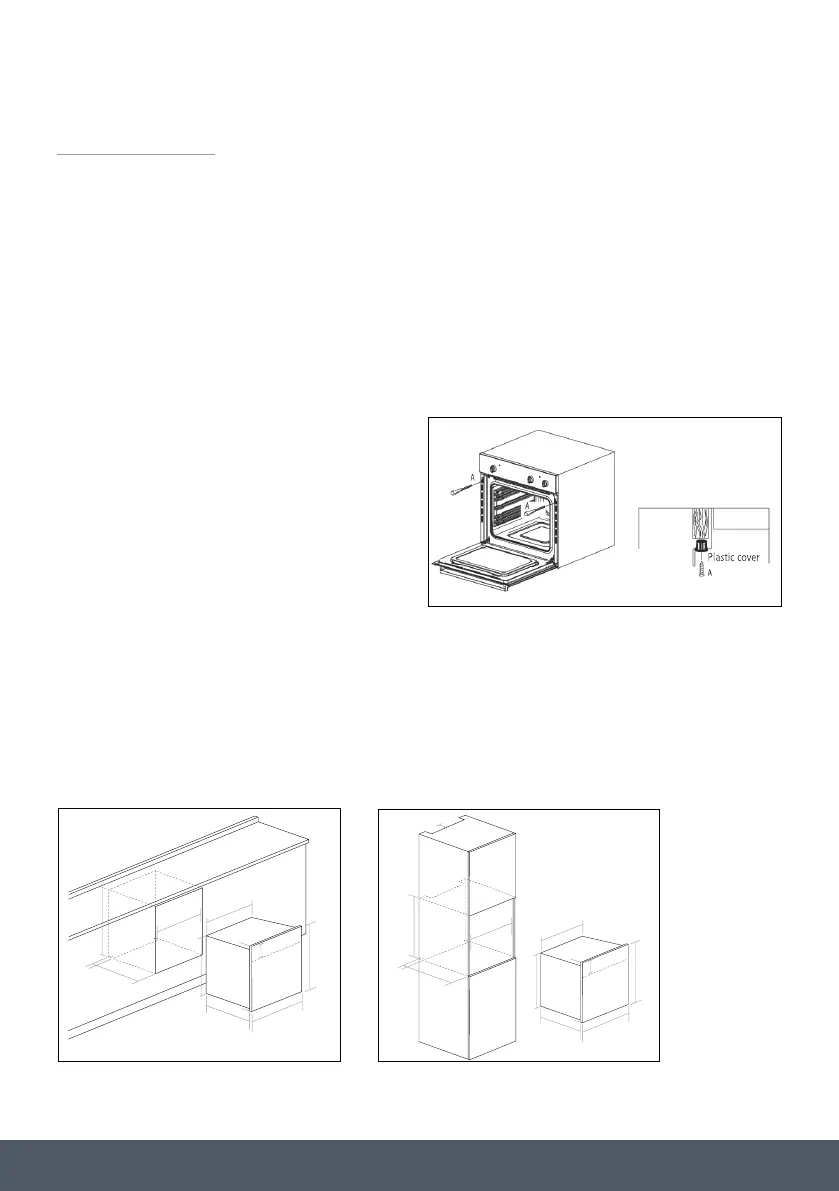

FITTING THE APPLIANCE:
Fit the appliance into its surround (beneath a
worktop or above another appliance in a tall
housing) by inserting screws and plastic covers
into the 2 holes (A - fig.3) that can be seen in
the frame of the oven when the door is open.
For the most efficient air circulation, the oven
should be fitted according to the dimensions
shown in fig. 1 & 2.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which
the oven is fitted should have a gap of at least 70 mm at the rear for ventilation (fig.4 & fig.5).
DIMENSIONS
54 6m m
595mm
575mm
589mm
70mm
589mm
mi n 550mm
mi n 550mm
56 0m m
56 0m m
55 1m m
23mm
5m m
59 5m m
70 mm
70 mm
20 mm
54 6m m
595mm
575mm
55 1m m
23mm
5m m
59 5m m
20 mm
11 6m m
11 6m m
DIMENSIONS
54 6mm
595mm
575mm
589mm
70mm
589mm
mi n 550 mm
mi n 550 mm
56 0mm
56 0mm
55 1mm
23mm
5m m
59 5mm
70 mm
70 mm
20 mm
54 6mm
595mm
575mm
55 1mm
23mm
5m m
59 5mm
20 mm
11 6mm
11 6mm
Plastic cover
Fig1 Fig2
Fig3

Caple C2231 Specifications

General

Grill	Yes
Oven size	Medium
Oven type	Electric
Number of ovens	1
Shelves material	Chrome
Total oven power	2340 W
Convection cooking	-
Number of cooking programs	5
Total oven(s) interior capacity	67 L
Color name	Black Glass, Stainless Steel
Door hinge	down
Control type	Rotary
Door material	Glass
Product color	Black, Stainless steel
Built-in display	No
Control position	Top front
Interior material	Enamel
Oven door opening	Drop down opening
Appliance placement	Built-in
Number of glass door panels	2
Current	13 A
Energy efficiency scale	A+++ to D
Energy consumption (conventional)	- kWh
Energy consumption (forced convection)	0.71 kWh
Lamp type	Halogen
Bulb power	25 W
Lamps quantity	1 lamp(s)

Weight and Dimensions

Depth	546 mm
Width	600 mm
Height	595 mm
Weight	33300 g
Installation compartment depth	550 mm
Installation compartment width	560 mm
Installation compartment height	589 mm
