Fig3
475mm
468mm
51.3mm
758.8mm
897.4mm
13.3mm
103mm
616.4mm
445.2mm
546mm
23.7mm
129mm
5.4mm
845.5mm
28.5mm
23.4mm

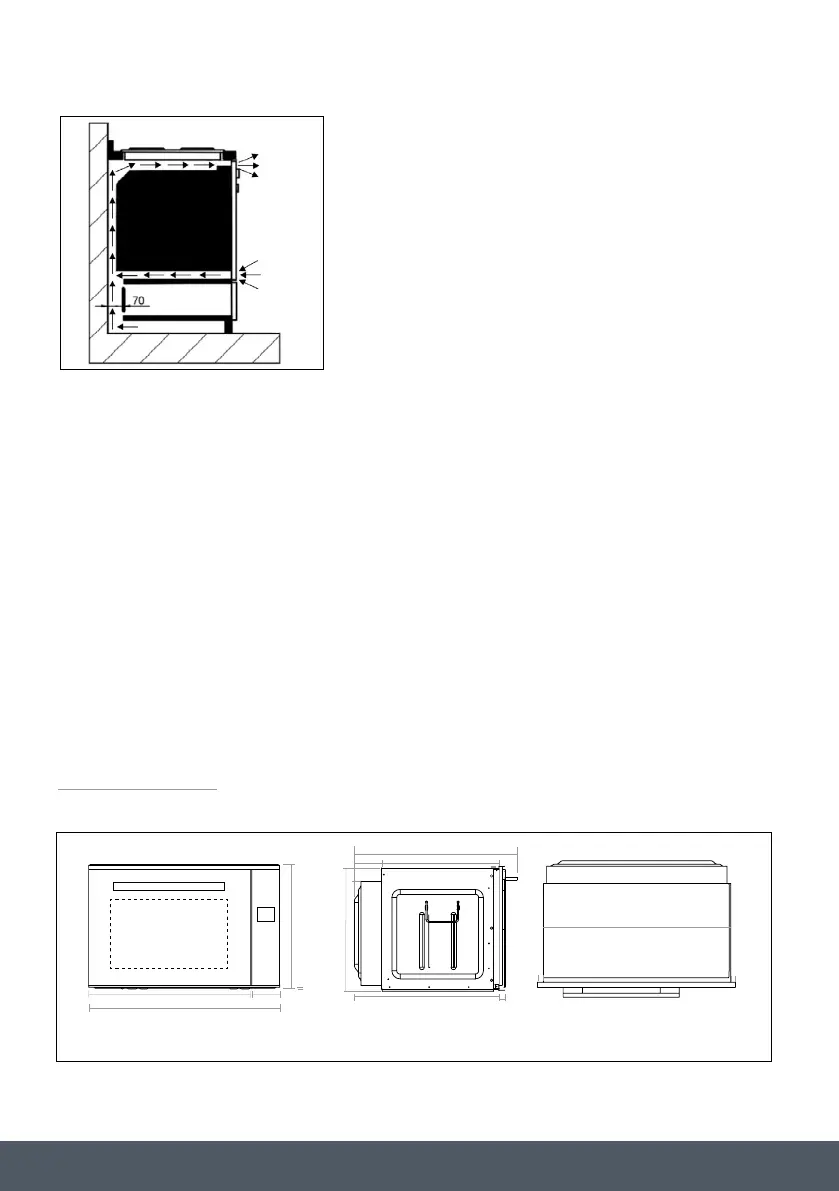

See below for full dimensional drawings of your oven to help with installation.
For a built-in oven to work well the cabinet must be of the right type.
The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining
furniture is made of veneered wood, the adhesives should be able to withstand a temperature
of 120ºC. Plastic materials or adhesive which cannot withstand this temperature may become
deformed or unstuck.
To comply with safety regulations, once the appliance has been fitted it should not be possible to
make contact with the electrical parts.
All parts which offer protection should be fixed in such a way that they cannot be removed
without the use of a tool.
OVEN DIMENSIONS
