BEFORE INSTALLING THE HOB
› The ceramic hob must be installed by qualified personnel or technicians. Please never
conduct the installation by yourself.
› Check the work surface is square and level, and no structural parts interfere with the
space requirements.
› Ensure the work surface is made of a heat-resistant material.
› If the hob is installed above an oven, check the oven has a built-in cooling fan.
› The installation must comply with all clearance requirements and applicable standards
and regulations.
› Ensure a suitable isolating switch providing full disconnection from the mains power supply
is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
› The isolating switch must be of an approved type and provide a 3mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements).
› The isolating switch must be easily accessible to the customer once the hob is installed.
› Consult local building authorities and by-laws if in doubt regarding installation.
› Use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces.
AFTER INSTALLING THE HOB
› Ensure the power supply cable is not accessible through cupboard doors or drawers.
› Ensure there is an adequate flow of fresh air from outside the cabinetry to the base of
the hob.
› If the hob is installed above a drawer or cupboard space, a thermal protection barrier is
installed below the base of the hob.
› The isolating switch must be easily accessible by the customer.
BEFORE LOCATING THE FIXING BRACKETS
› The unit should be placed on a stable, smooth surface (use the packaging).
Do not apply force onto any controls protruding from the hob.

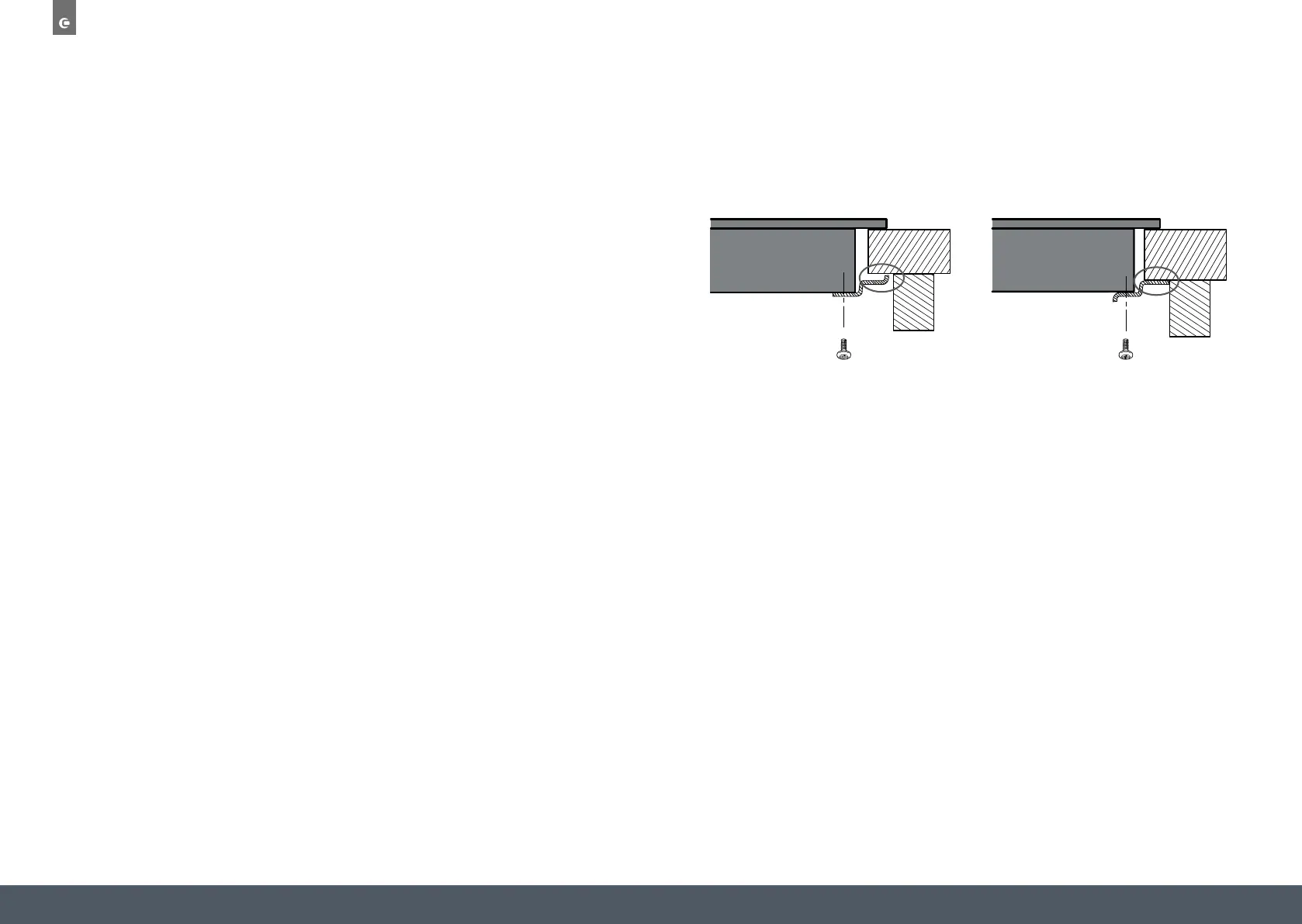

ADJUSTING THE BRACKET POSITION
Fix the hob to the work surface by screwing 4 brackets on the bottom of hob (see picture) after
installation. Adjust the bracket position to suit different worktop thickness’s.
15
BBeeffoorree llooccaattiinngg tthhee ffiixxiinngg bbrraacckkeettss
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto any area.
Fix the hob to the work surface by screwing four brackets to the bottom of hob (see picture) after installation.
AA BB CC DD
screw bracket Screw hole base
Adjust the bracket position to suit for different work surface’s thickness.
CCaauuttiioonn
1. The ceramic hob must be installed by qualified personnel or technicians. We have professionals at your service.
Please never conduct the operation by yourself.
2. The ceramic hob must not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The hob must be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface must withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
A
B
C
D
HOB
WORK SURFACE
A
HOB
WORK SURFACE
B
BRACKET
BRACKET
CAUTIONS:
› The ceramic hob should not be mounted next to cooling equipment, dishwashers and
rotary dryers.
› The wall and cooking zone above the work surface must withstand heat.
› To avoid any damage, the worktop sandwich layer and adhesive must be heat resistant.
