11
3. Make a rectangular opening
DD903BK: 102 x 832mm
DD522BK: 114 x 486mm
Fit the product in the opening, by inserting it from above as shown in fig. 1.
4. Secure the product inside the furniture by using the specific brackets provided. Proceed to the
installation of the brackets in the sides of the product, in the specific hooks, as shown in Fig. 2.

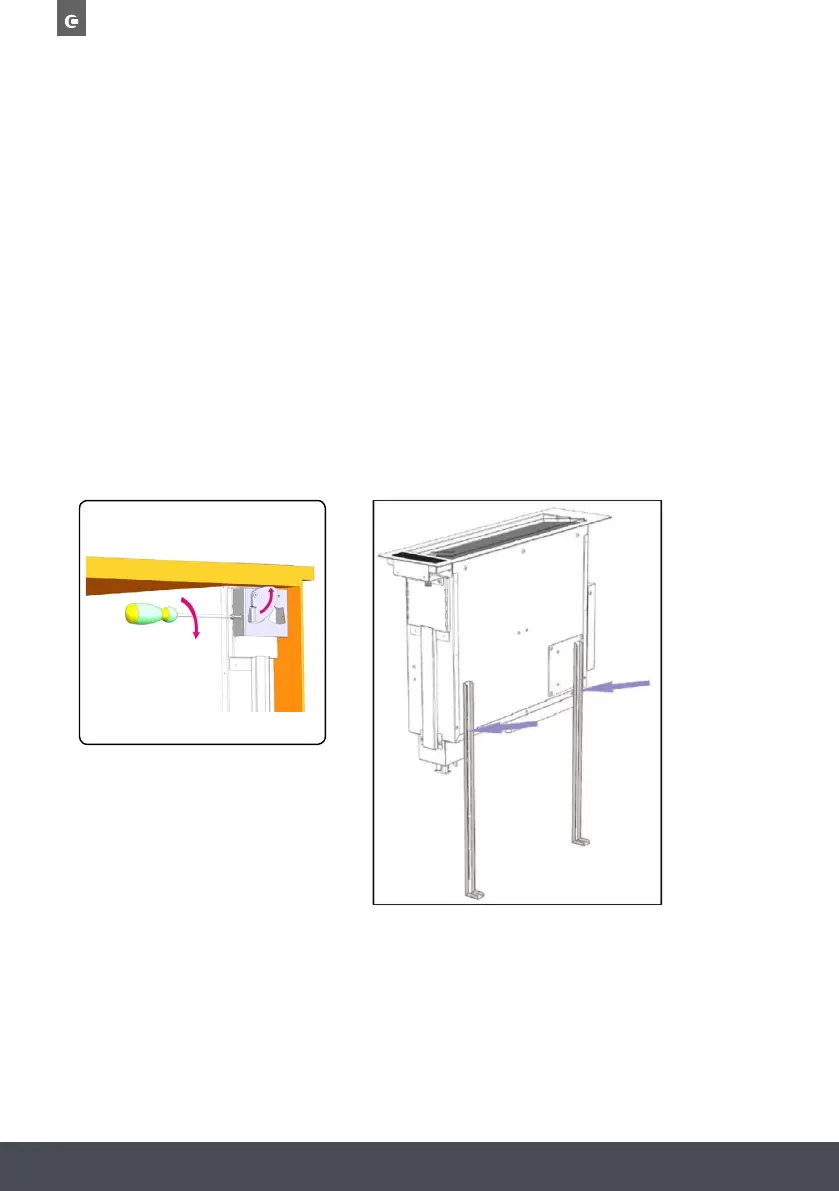

5. Then tighten the screws manually, as in fig.3, to secure the product to the furniture. Before
tightening the screws, make sure that the product is perfectly balanced. Pay attention in order
not to tighten the screws too much.
For the DD522BK if the structure of the cabinet does not allow to use the brackets in fig. 2, it
is possible to use the alternative brackets, as in figure 13.
Fig. 13
Fig. 3
