Instruction manual DD903BK & DD522BK
11
Please keep this instruction manual for future reference
6. If the Downdraft is equipped with an external motor, fit the external motor then install the
exhaust air ducting according to the relevant installation diagrams:
DDMEXT21 & DDMEXT30 - Figure 9 &11
DDMEXT28 - Figure 10 & 12.

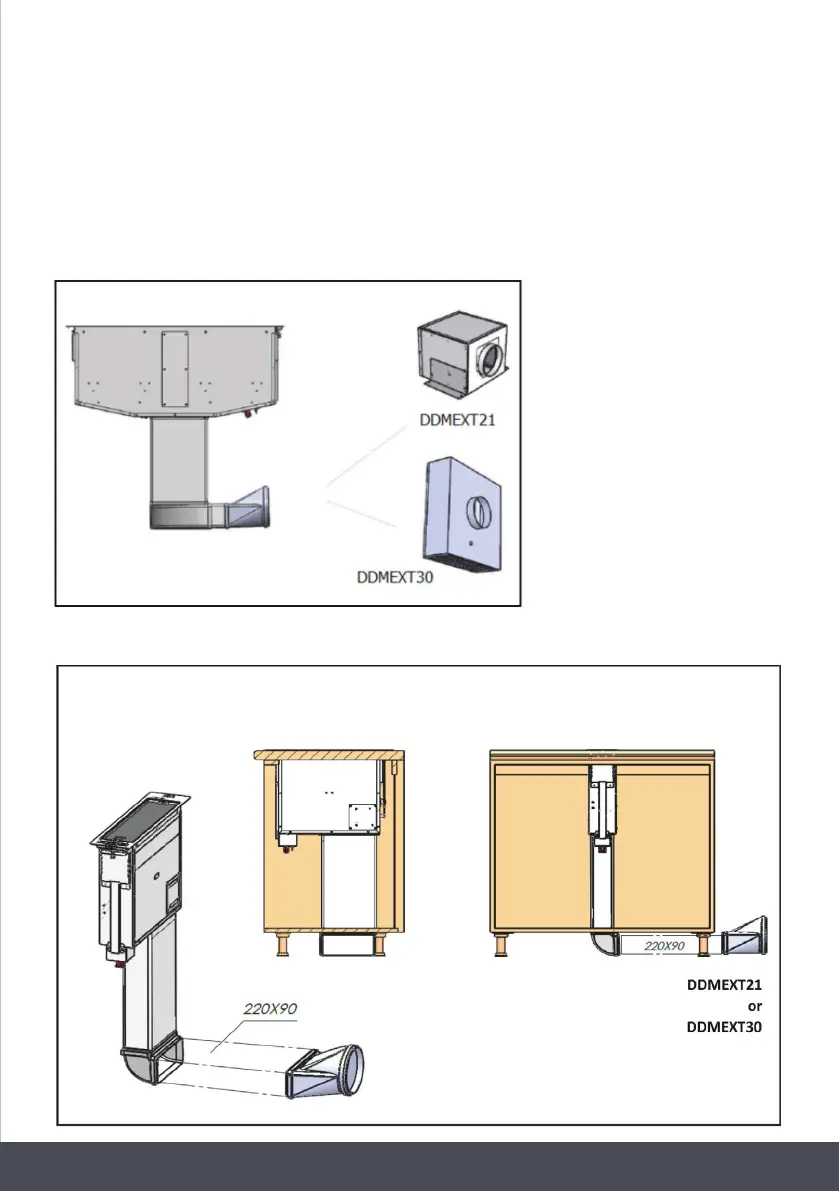

Fig. 9
Fig. 11
DD903BK
DD522BK with DDMEXT21 or DDMEXT30
