Caple DD522BK - How the Downdraft Works; Externally Vented Mode

Instruction manual DD903BK & DD522BK
14
Please keep this instruction manual for future reference
Fig. 7
Fig. 8
Fig. 9
Fig. 6
12

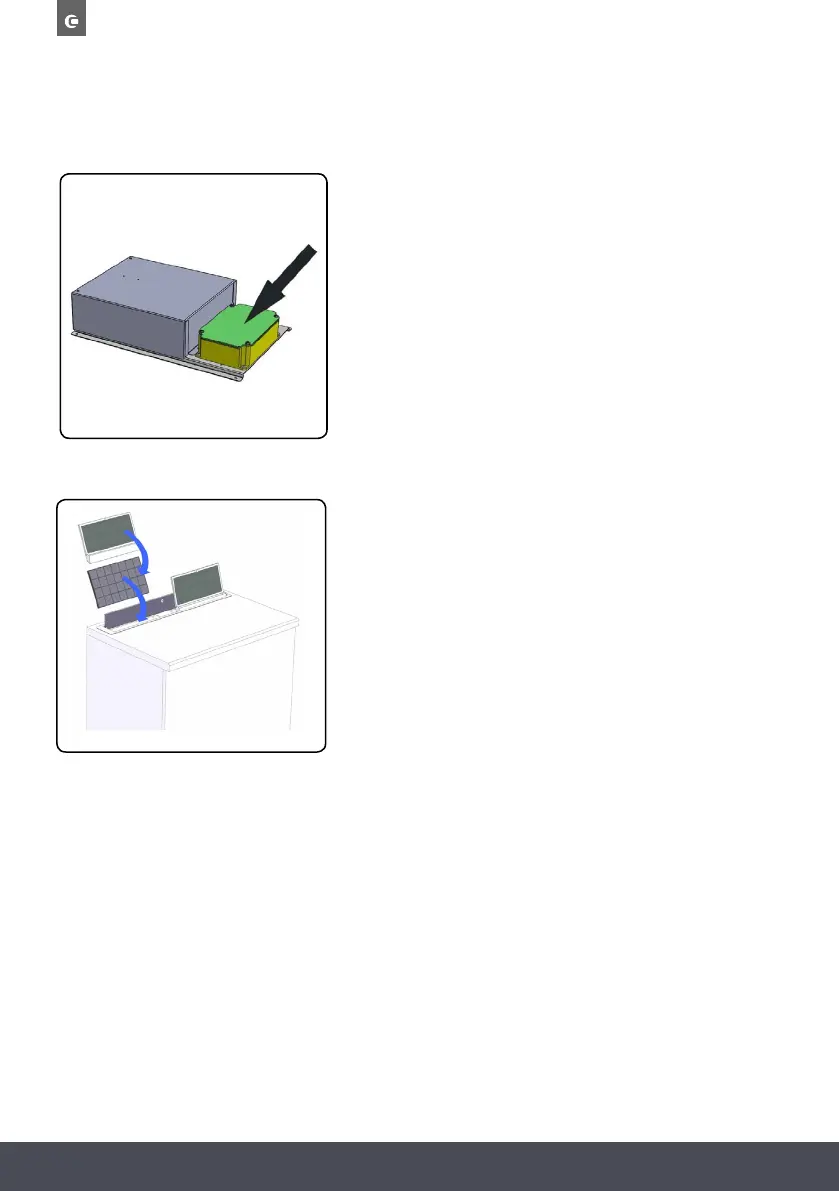

9. If the product is equipped with external motor, connect
the motor unit cable to the specific terminal board
found in the plastic box shown
in fig. 6.
10. Power the downdraft.
11. If the appliance is to be used in the recirculation mode,
place the charcoal filters behind the grease filters (see
fig 7) and then settle the front glass by sticking the
magnets into the specified seats.
HOW THE DOWNDRAFT WORKS
This appliance is intended to extract cooking fumes, greases and vapours. It has been designed to
work in either ventilation mode or in recirculation mode.
EXTERNALLY VENTED MODE
The downdraft can be installed in this mode with outside discharge of extracted air: in this case
it is necessary to connect the ducting channel to the outside wall (ducting pipes are not supplied
with this product).
Fig. 7
Fig. 8
Fig. 9
Fig. 6
12
Fig. 6
Fig. 7
