RECIRCULATION MODE
In case fumes and vapours cannot be extracted outside, the appliance can be used in recirculation
mode. Activated charcoal filters are required for this type of extractor:
2 x CAP66CF charcoal filters are required for the DD903BK
1 x CAP72CF charcoal filter is required for the DD522BK.
These can be purchased directly from www.caple.co.uk or by calling our sales office on
0117 938 1900.
Air recycled through the charcoal filters is recirculated back into the room via a 5mm ventilation
slot in the kitchen plinth (fig 8a) or a plinth grill (fig 8b).
NOTE:
Universal plinth grille (GRILL/SENSE600) can be purchased at www.caple.co.uk
CAUTION:
Installation must comply with the regulations in force regarding the ventilation of enclosed
environments. The use of discontinued ducts is not allowed without the approval of a
qualified technician.

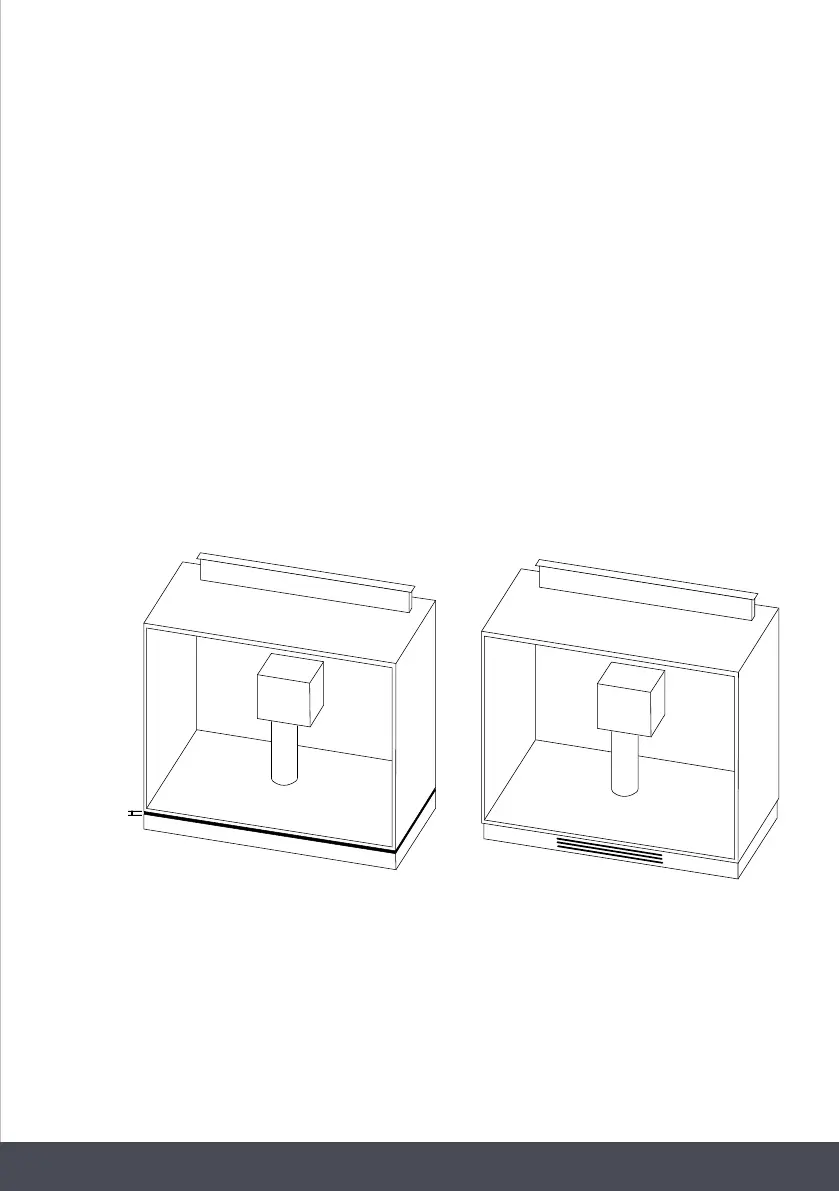

5mm gap
Fig 8a
Fig 8b
